T I M G 2 - T r a i l e r I n f o r m a t i o n M o d u l e
Ignition on - Display activates automatically, all configured
menus are available.
or
<Active Faults>
ODO: 127mi
Load Rear: 58420lb
Inst. Test Missing
DISCLAIMER
For information
only! Press any key
to continue.
SUPPLY: 11.9V 58368LB
ODO: 127MI
Bendix TIM
TABS6
Advanced
Inst. Test Missing
TPMS Info
Main Menu
Exit
or
or or
Ignition off - Display is off, push one of the navigation
buttons for one second to activate the display.
NOTE: Menu options are limited (see Menu Overview page 6-7).
or
DISCLAIMER
For information
only! Press any key
to continue
<Active Faults>
ODO: 127mi
Main Menu
Exit
or
or or
or or
BATTERY MODE
For information
only! Values are
read from memory!
Initial Menu
Initial Menu
Initial Menu
Main Menu
Stored Faults
Distance & Serv.
Operating Info
ECU Info
Main Menu
+
Stored Faults
Distance & Serv.
Operating Info
System Info
Scroll until
“Main Menu”

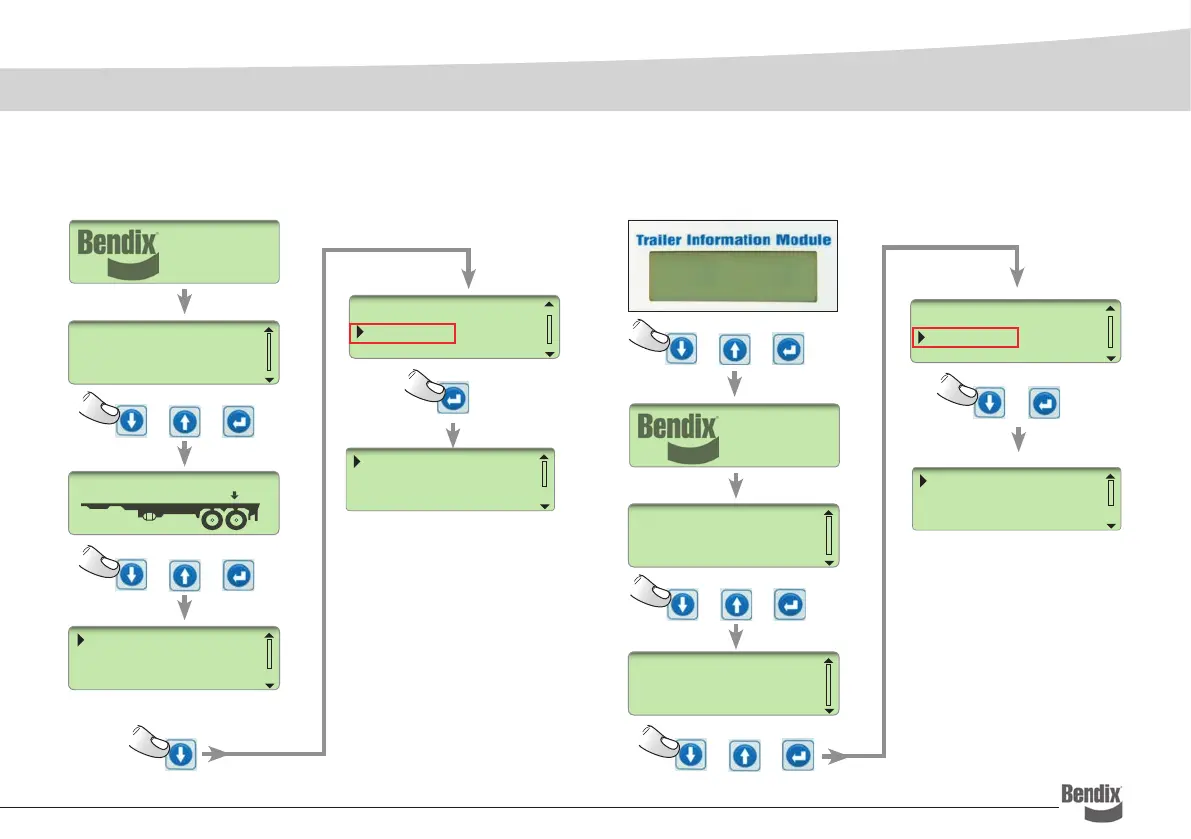

Behaviour with Ignition on / off
Bendix TIM
TABS6
Advanced
Scroll until “Main Menu”
