12
ASSEMBLY INSTRUCTIONS
Before assembling the product, make sure all parts are present. Compare the package with the
package contents list and the hardware contents on the preceding page. If any part is missing or
damaged, do not attempt to assemble the product. Contact Customer Service (1-888-3KOBALT) for
replacement parts.
This saw can be used with a stand or on another work surface.

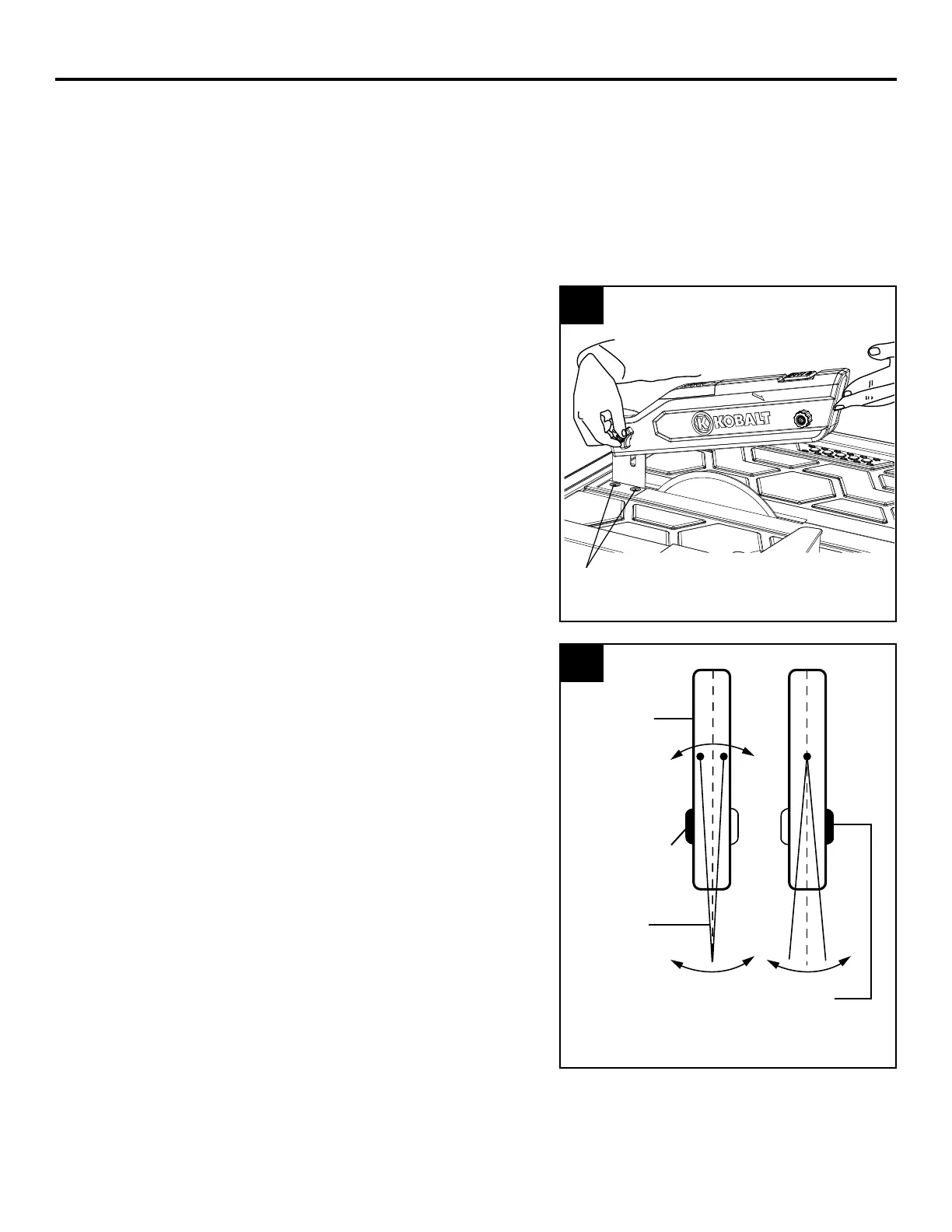

FITTING THE RIVING KNIFE/BLADE GUARD (Fig. 2)
Note: Do not adjust the riving knife unless necessary.
1. Unplug the saw.
2. Remove the top plastic blade guard by loosening the
knob securing it in place.
3. Use a Phillips screwdriver (not included) to loosen the
two screws and align the riving knife with the blade,
ensuring that the distance between the tip of riving
knife and rim of the saw blade is no more than 3/16 in.
(0.48 cm) and that the riving knife is in alignment with
the saw blade.
4. Tighten the two screws.
INSTALLING THE BATTERIES
1. Hold and push the cover of battery compartment in the
direction of the arrow molded into the battery cover.
2. Remove the cover and place two AAA batteries (sold
separately) into the battery compartment, taking care to
insert them with the correct polarity as indicated inside
the battery compartment.
ADJUSTING THE ANGLE AND/OR ALIGNMENT OF
THE LASER
Turn on the laser.
To adjust the alignment of the laser, turn the knob on the
left of the blade guard.
To adjust the angle of the laser, turn the knob on the right
of the blade guard.
Set the laser beam to align with the 0° mark on the table
scale and the blade by adjusting the two knobs (Fig. 3).
2
screws
3
blade guard
laser
(inside blade
guard)
left adjustment
button
(ALIGNMENT)
right
adjustment
button
(ANGLE)
laser beam
