ASSEMBLY INSTRUCTIONS
This product requires assembly. To reduce the risk of injury to persons, never operate without
guards in place. The guard must always be on the tool to protect the user.
1. Mounting the Guard
WARNING
• Always wear gloves when mounting or replacing
the guard. Be careful of the blade on the guard
and protect your hands from being injured by the
blade.
• Always remove the battery pack from the
product when you are assembling parts, making
adjustments, cleaning, or when the product is
not in use.
a. Remove the battery pack (not included) from
the trimmer.
b. Lift the trimmer head (E) and face it upward;
align the groove on the bottom of the guard
(J) with the raised portion on the base of the
trimmer head, and then slide guard onto the
base as shown.
c. Make sure that the two mounting holes in the
guard are aligned with the two assembly holes
in the base of the shaft. Lock the guard in
place by tightening the two screws (L) with a
Phillips screwdriver (not included).

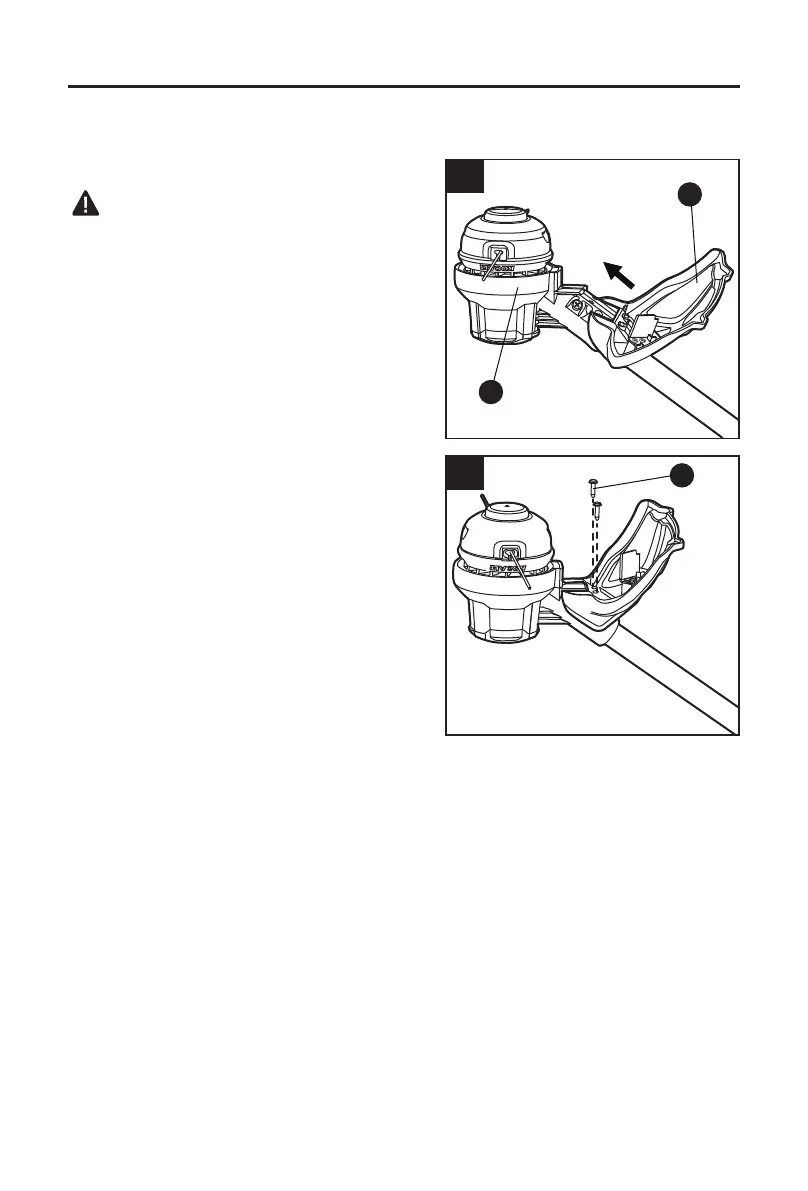

1a
J
E
1b
L
