9
OPERATING INSTRUCTIONS

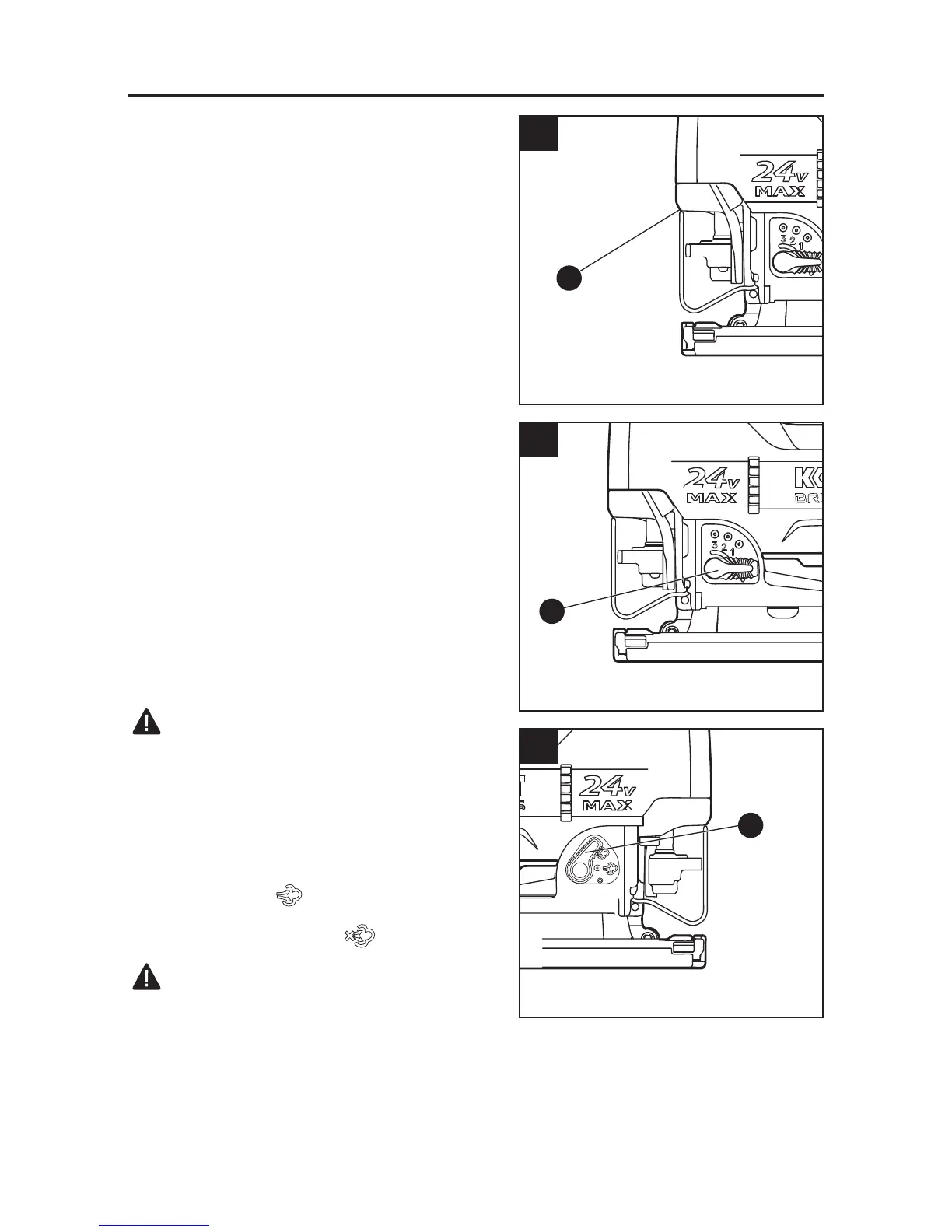

3. LED work light
The LED work light (C) is located on the front of
the saw in the tool housing. It will illuminate when
the variable-speed trigger switch (B) is depressed.
This provides additional light on the surface of the
work piece for operation in lower-light areas.
The LED work light will turn off approximately 10
seconds after the variable-speed trigger switch is
released.
4. Orbital-Function Lever
This jig saw has the option of orbital action when
cutting.
Adjust the orbital-function lever (I) to suit the
material and obtain the best cutting performance.
Setting 0: no orbital action for cutting thin, soft
steel, plastic and for more precise wood cutting.
Setting 1: minimal orbital action for cutting hard
wood.
Setting 2: medium orbital action for straight or
curving wood cutting.
Setting 3: maximum orbital action for fast wood
cutting.
Always make test cuts in scrap material rst to
determine the best setting.
WARNING
• To reduce the risk of injury, always allow the jig
saw to come to a complete stop before changing
the orbital function setting.
5. Dust-Blowing Lever
This tool has a dust-blowing lever (M).
a. To blow sawdust, move the lever to the
blowing setting
.
b. To turn off the blowing function, move the lever
to the no-blowing setting
.
WARNING
• To reduce the risk of injury, always allow the jig
saw to come to a complete stop before changing
the dust blowing setting.
3
C
4
C
5
M
