ASSEMBLY INSTRUCTIONS
WARNING
Folding or unfolding the handle improperly can damage the cables, causing an unsafe operating
condition.
• Do not damage the cables when folding or unfolding the handle.
• If a cable is damaged, contact an Authorized Service Dealer.
Pull and rotate the handle lock knobs (L) 90° on both
sides to loosen the lower handles (E) on both sides.
Move the lower handles to the operating position.
You may raise or lower the handles to a position
comfortable for you. There are 3 positions for you
to choose. Release the handle knobs to lock the
lower handles into position.
Align the mounting holes on the upper handle (D) and
the lower handle (E). Insert the handle bolts (AA) and
secure using the handle knobs (BB). Repeat for both
sides.
Note: Ensure both sides are set at the same position
for proper assembly.

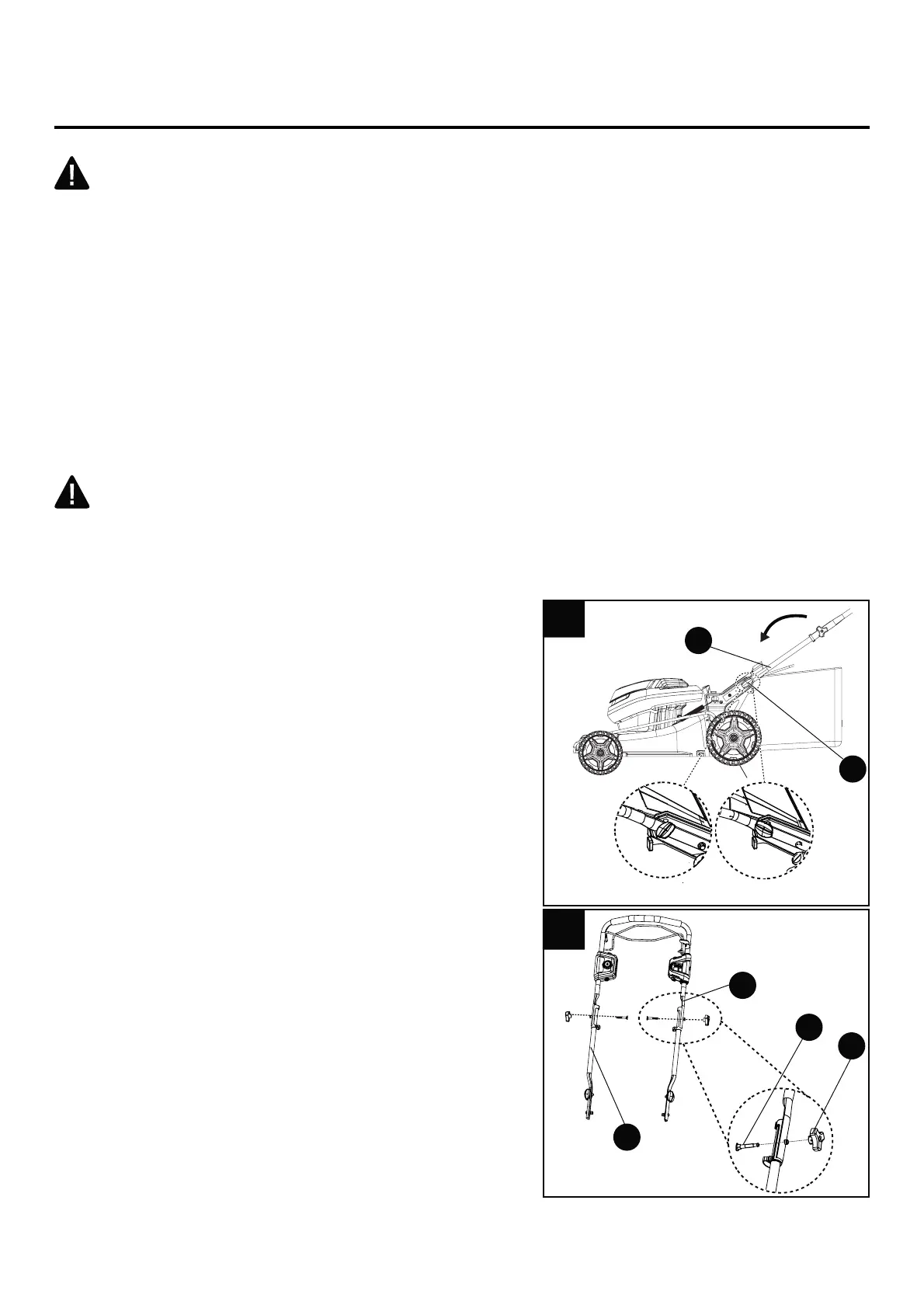

1a. Unfolding and adjusting handle
1b. Installing upper handle:
WARNING
• If any parts are damaged or missing, do not operate this product until the parts are replaced. Us-
ing a product with damaged or missing parts could result in serious personal injury.
• Do not attempt to modify this product or create accessories not recommended for use with this
leading to possible serious personal injury.
• Do not insert battery until assembly is complete and you are ready to mow. Failure to comply
could result in accidental starting and possible serious personal injury.
• To prevent accidental starting that could cause serious personal injury, always remove the battery
pack from the product when assembling parts.
• Never operate the mower without the proper safety devices in place and working. Never operate
the mower with damaged safety devices. Operation of this product with damaged or missing parts
could result in serious personal injury.
1a
1b
D
AA
BB
Unlocked position Locked position
E
L
E
