ASSEMBLY INSTRUCTIONS

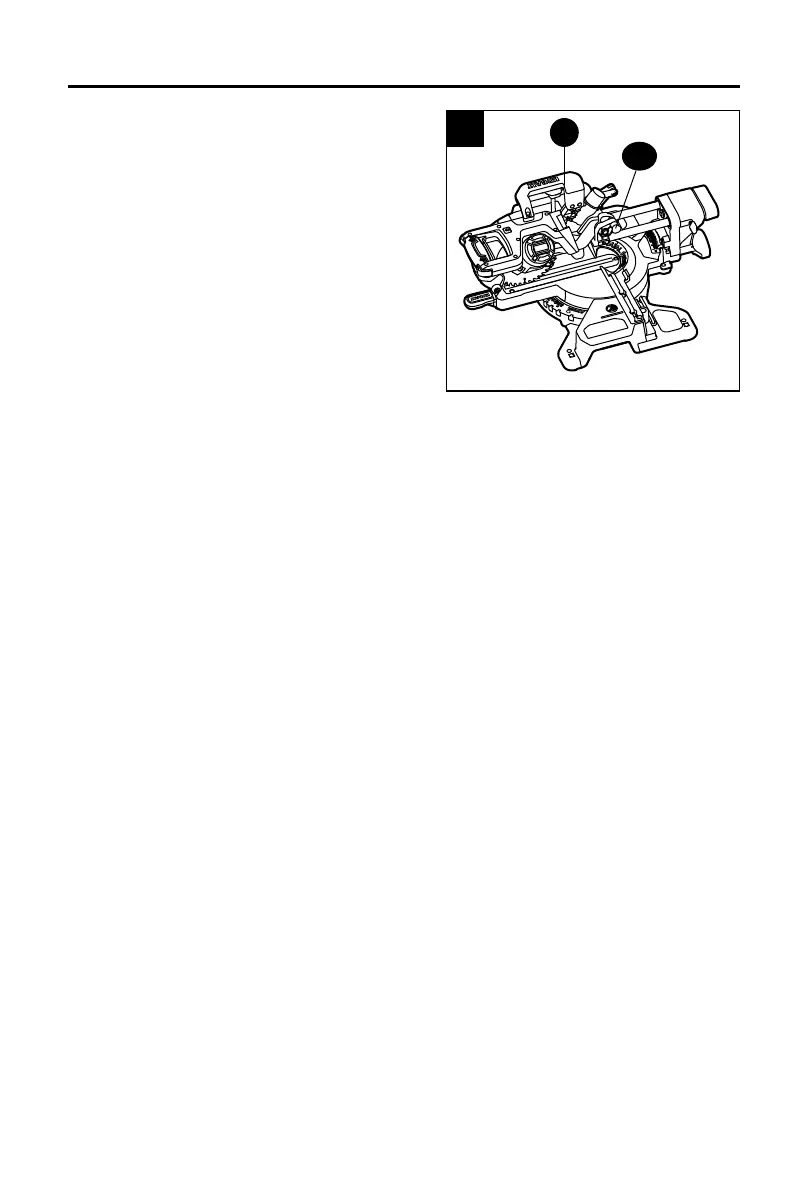

5. Locking/Unlocking the Saw Arm
When locking and unlocking the saw arm, it is not
necessary to loosen the depth-control knob.
To unlock and raise the saw arm:
a. Firmly grasp the main handle (R) and apply
downward pressure while at the same time
pulling the arm-lock pin (AC) out and away
from the saw housing.
b. Release the arm-lock pin and slowly raise the
saw arm.
To lock the saw arm:
a. Firmly grasp the main handle (R) and apply
downward pressure until head stops.
b. Push in the arm-lock pin (AC) toward the saw, allowing it to lock the saw into place.
NOTE: Do not use saw to cut while it is in the locked position.
5
R
AC
To Next Page
