2. Install nozzle holder (H) to lower frame (G).
Secure with two screws (BB).
1
2
2
G
H
BB
Hardware Used
Screw
x 2
BB
ASSEMBLY INSTRUCTIONSASSEMBLY INSTRUCTIONS
AA BB CC DD
Screw
Qty. 2
Axle Pin
Qty. 2
Screw
Qty. 2
Cotter Pin
Qty. 2
Frame Assembly

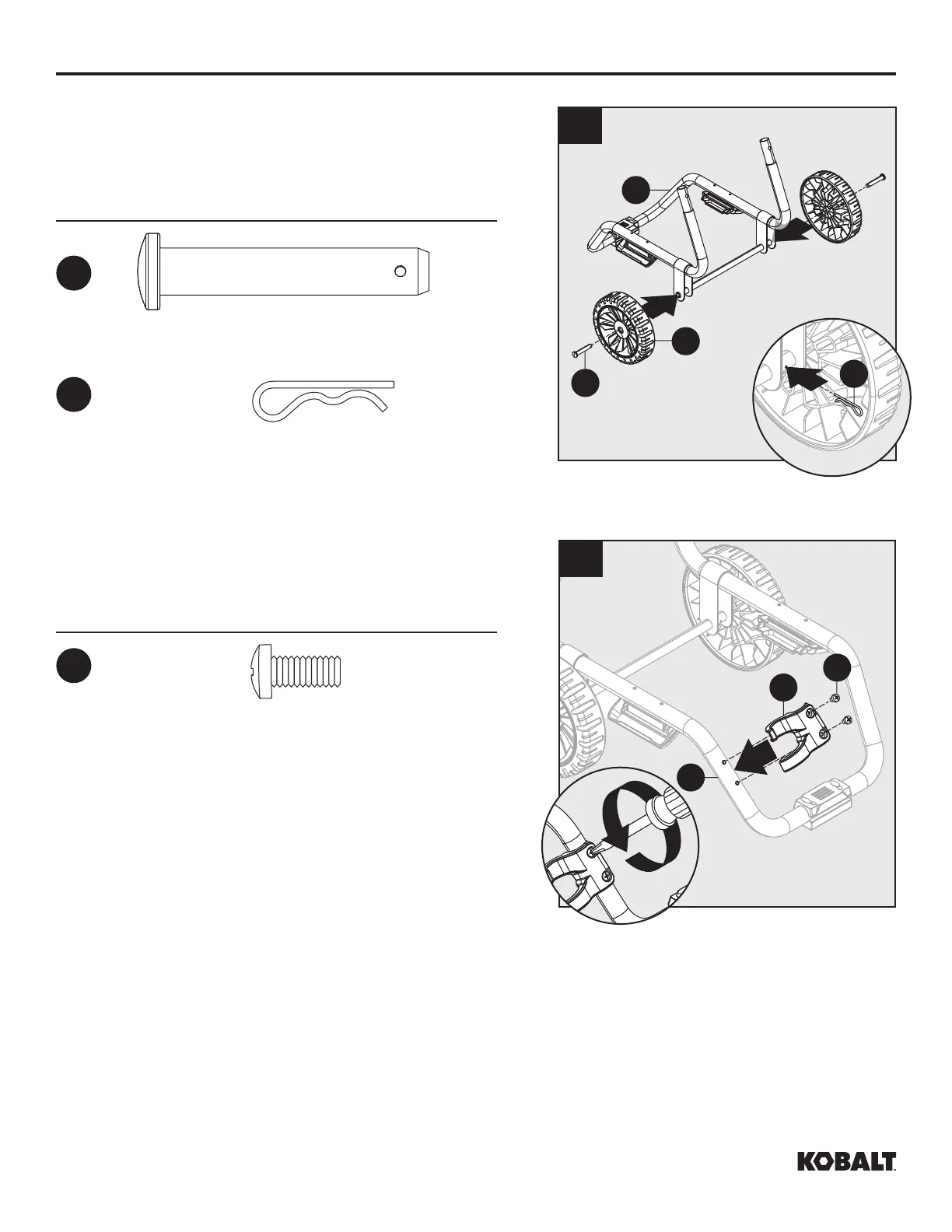

1. Install axel pins (AA), and wheels (J) to lower
frame (G). Secure with cotter pins (DD).
Hardware Used
Axle Pin
x 2
AA
1
1
1
2
G
J
AA
DD
AA BB CC DD
Screw
Qty. 2
Axle Pin
Qty. 2
Screw
Qty. 2
Cotter Pin
Qty. 2
Cotter Pin
x 2
DD
AA BB CC DD
Screw
Qty. 2
Axle Pin
Qty. 2
Screw
Qty. 2
Cotter Pin
Qty. 2
