ASSEMBLY
WARNING
• To prevent accidental starting that could cause serious personal injury, always remove the
battery pack from the tool when assembling parts.
• Do not use any attachments or accessories not recommended by the manufacturer of this product.
The use of attachments or accessories not recommended can result in serious personal injury.

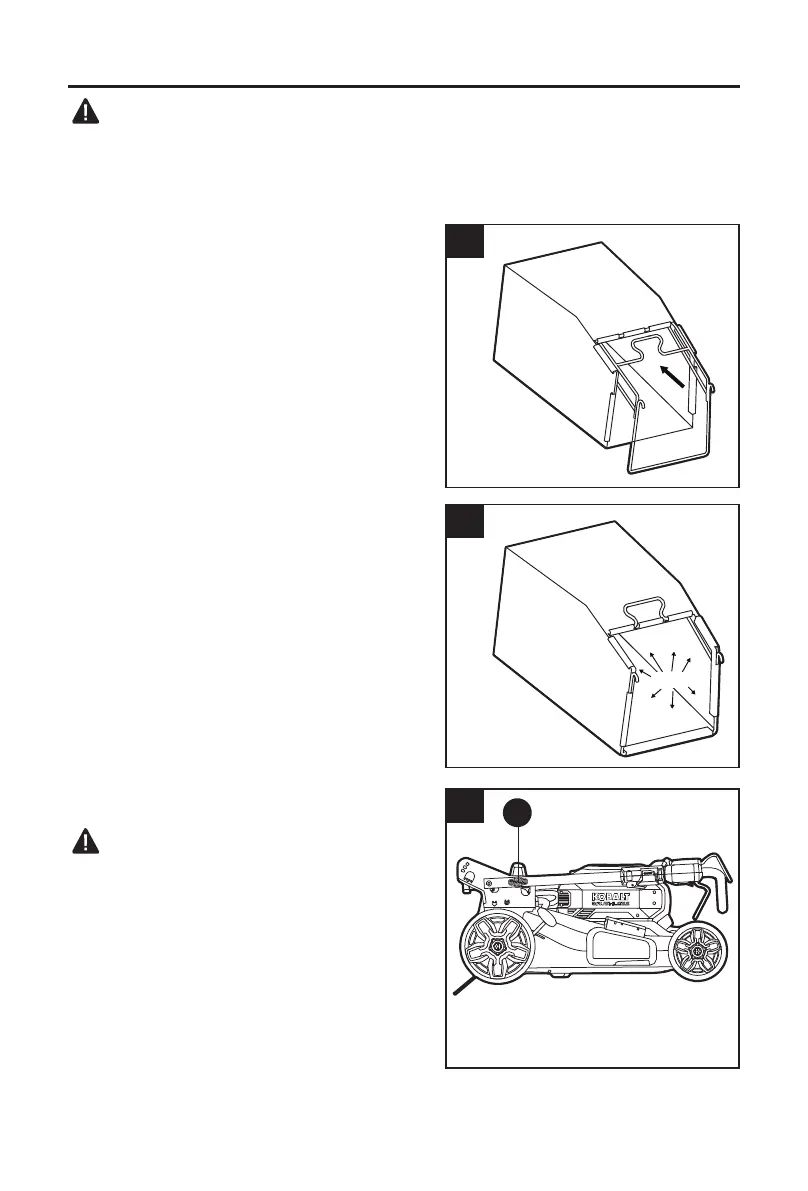

1. Assembling the Grass Bag
a. Check the grass bag before assembling to
make sure that there is no damage.
b. Slide the grass bag onto the frame, as shown in
Fig. 1a.
c. Assemble the top clips to the frame, then
assemble the two side clips. Assemble the
bottom clip last.
d. The completely assembled grass bag is shown
in Fig. 1b.
2. Adjusting the Foldable Handle
WARNING
• Do not attempt to start the mower until the
handle has been locked at one of the three
preset operating positions.
Locked Storage Position
Your mower is shipped with the handle in the
compact, locked position (Fig. 2a).
Operating Position
The mower handle can be set in one of the three
operating positions: UPPER, MIDDLE, or LOWER
(Fig. 2b).
2a
M
1a
1b
Clips
To Next Page
