PREPARATION
ASSEMBLY INSTRUCTIONS
Hardware Used
Before beginning assembly of product, make sure all parts are present. Compare parts with
package contents list and hardware contents list. If any part is missing or damaged, do not attempt to
assemble the product.
Estimated Assembly Time: 5 - 10 minutes
1. Guard
To avoid injury, always disconnect the power cord before installing the guard, changing a cutting line,
or making any adjustments.
If the guard is damaged, do not use the grass trimmer/edger until it is replaced.
Note: Install the protective guard before operating the grass trimmer/edger. It should not be
removed or disassembled.

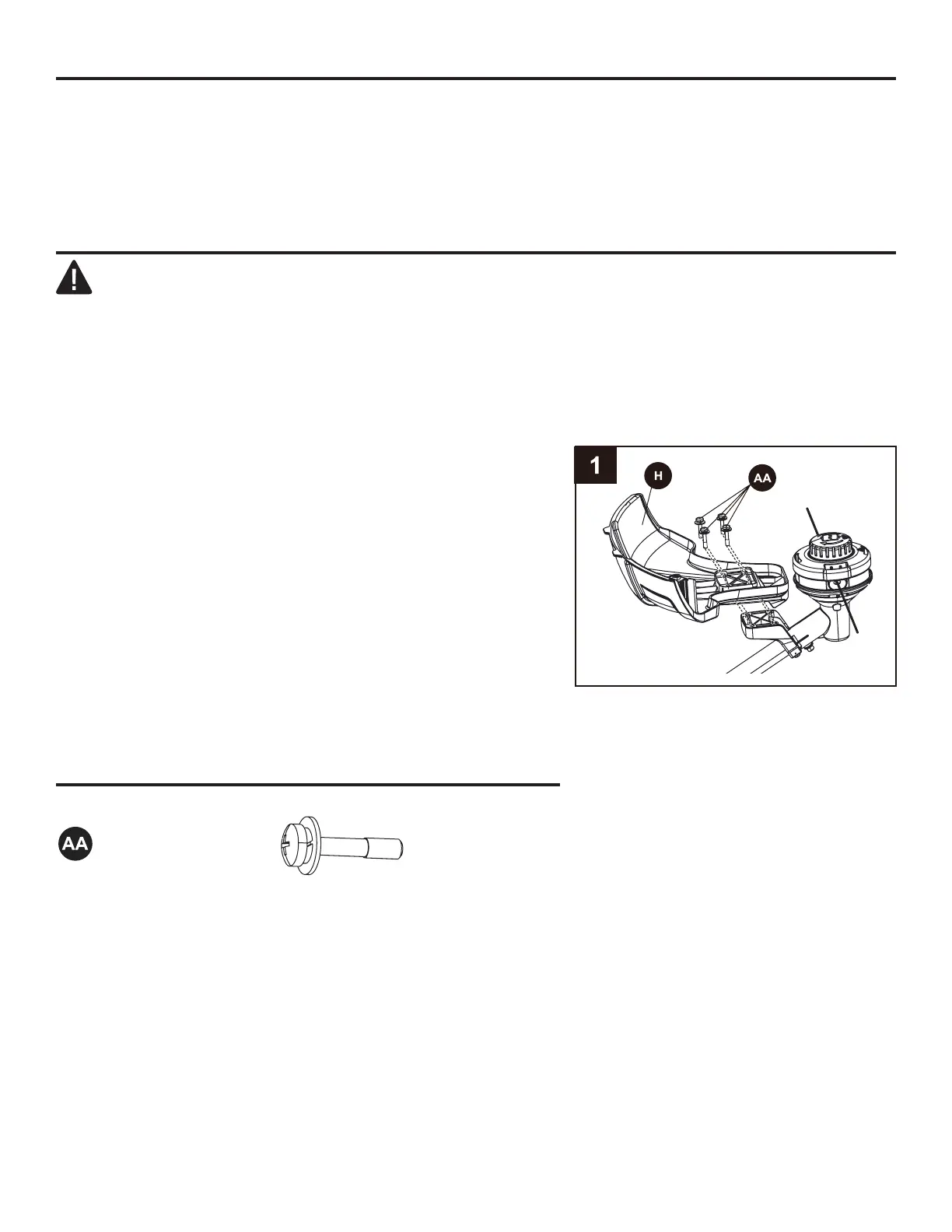

a. Invert the grass trimmer/edger to access the trimmer
head.
b. Using a Phillips head screwdriver, remove the
pre-installed screws (AA) from the trimmer head.
c. Place the guard (H) onto the trimmer head.
d. Align the screw holes on the guard with the screw
holes on the trimmer head.
e. Insert the screws into the trimmer head and tighten to
fasten the guard in place.
WARNING
Screw
x 4
To Next Page
