Kobalt TQ3126 User Manual

11
INSTALLATION INSTRUCTIONS

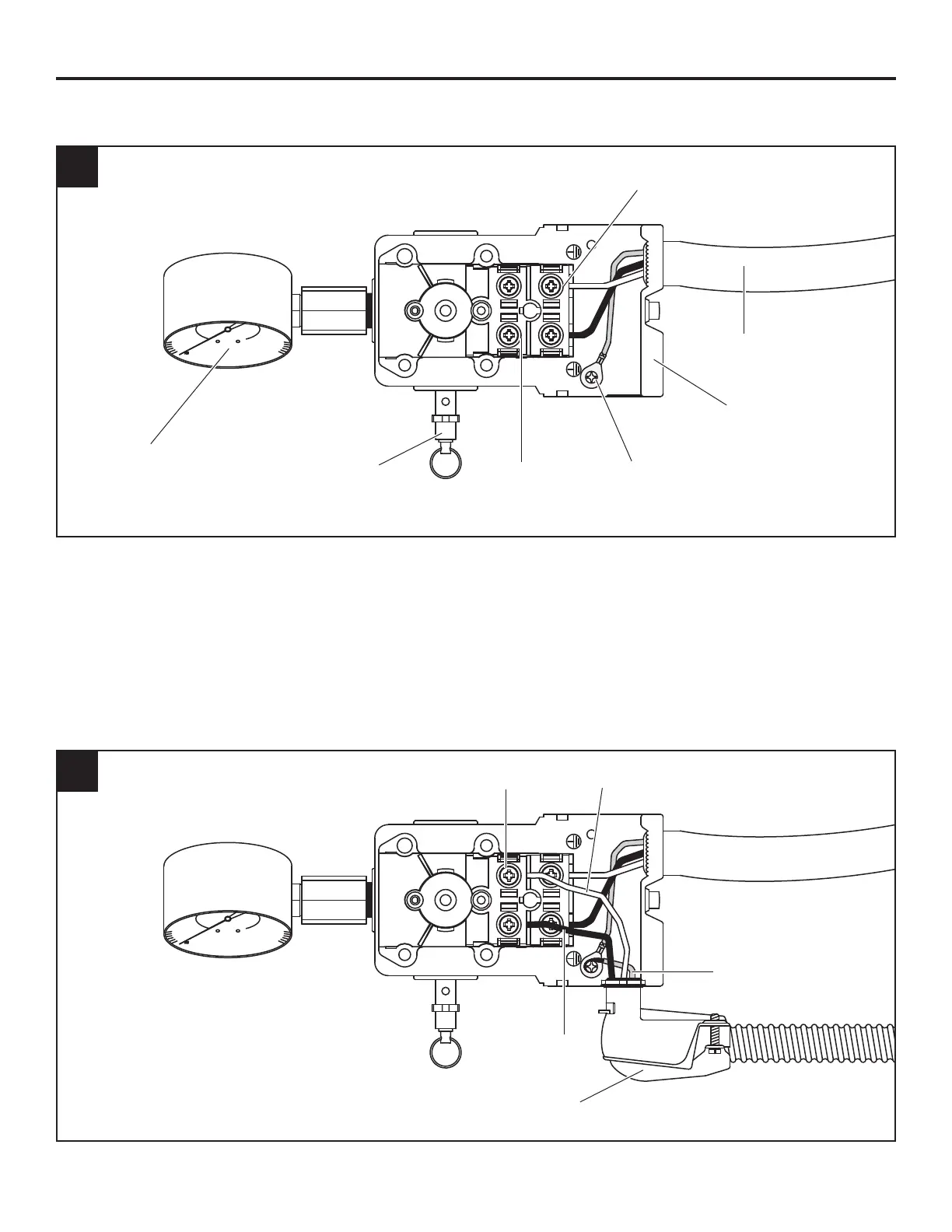

2. Familiarize yourself with the pressure switch once cover is removed.
3. Remove ground screw. Install strain relief on pressure switch. DO NOT tighten strain relief on
power cord until wiring is complete. Insert the bare wires (black, white, bare/green) through the
strain relief.
Attach bare/green ground wire rst to ground screw on pressure switch body.
Look for the “Line” markings on pressure switch. Install Line wires and tighten terminal screws.
2
ASME Safety
Valve
Motor Power
Cord
Line
Terminal
Ground
Screw
Motor Cord Strain
Relief
Motor Terminal
Tank Pressure
Gauge
3
Power Cord
Strain Relief
Black Line
Wire
Bare/green
Ground Wire
White Line WireTerminal Screw
