OPERATING INSTRUCTIONS
In the AUTO position, the compressor pumps air into
the tank. When a shut-off (preset “cut-out”) pressure is
reached, the compressor automatically shuts off.
If the compressor is left in the AUTO position and air is
depleted from the tank by use of a tire chuck, tool, etc.,
the compressor will restart automatically at its preset
“cut-in” pressure. When a tool is being used continuously,
the compressor will cycle on and off automatically.
In the OFF position, the compressor will not operate.
Drain Tank. Disconnect, tag and lock out power source;
release pressure. Drain moisture from tank by opening

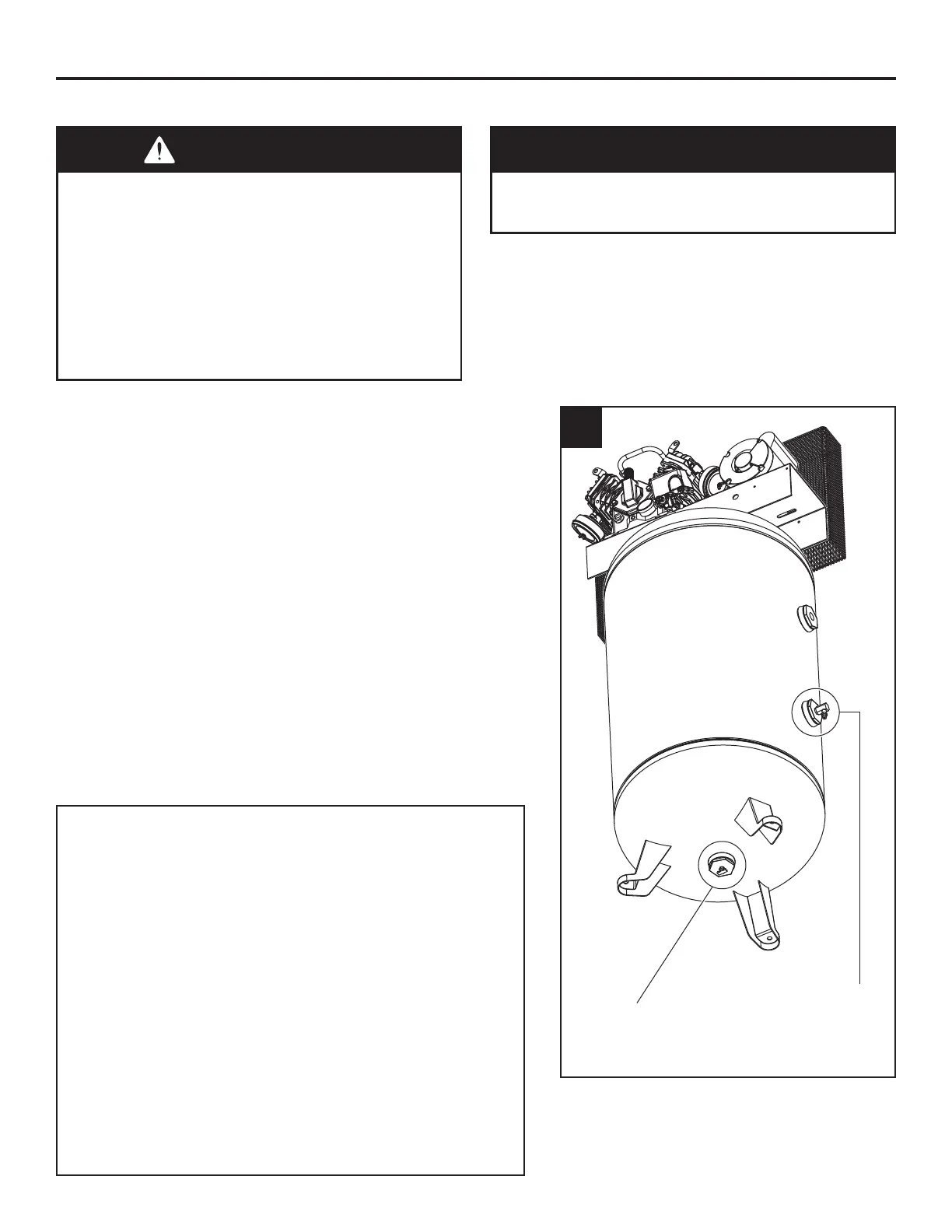

drain valve underneath or on side of tank (See Figure 1).
NOTICE
Unit Care and Maintenance. Drain liquid from
tank daily.
ON/OFF CYCLING OF COMPRESSOR
WARNING
Risk of Bursting. Drain tank every day to
prevent corrosion and possible injury due to
tank damage. For optimal performance of tank
drain, tank pressure should be between 10 -
40 psi. Do not operate drain with more than
40 psi in tank or drain valve may be damaged.
Drain tank of moisture daily using the drain
valve in the side of the tank or at the bottom of
the tank.
MOISTURE IN COMPRESSED AIR
Moisture in compressed air will form into droplets
as it comes from an air compressor pump. When
humidity is high or when a compressor is in
continuous use for an extended period of time, this
moisture will collect in the tank. When using a paint
spray or sandblast gun, this water will be carried
from the tank through the hose, and out of the gun
as droplets mixed with the spray material.
IMPORTANT: This condensation will cause water
spots in a paint job, especially when spraying other
than water based paints. If sandblasting, it will cause
the sand to cake and clog the gun, rendering it
ineffective. A lter in the air line, located as near to
the gun as possible, will help eliminate this moisture.
1
Bottom
Drain
Valve
Side
Drain
Valve
