TP-6335 9/04 Electrical System 19
-- +
Battery
Positive
Vehicle
Frame
12-Volt
Battery
Using the Same Battery
as the Vehicle Engine
N
Battery Negative
to Vehicle Frame
Ground Strap
Vehicle Frame
-- +
Battery
Positive
Vehicle Frame
12-Volt
Battery
Using a Separate Battery
for the Generator Set
N
View A
View B

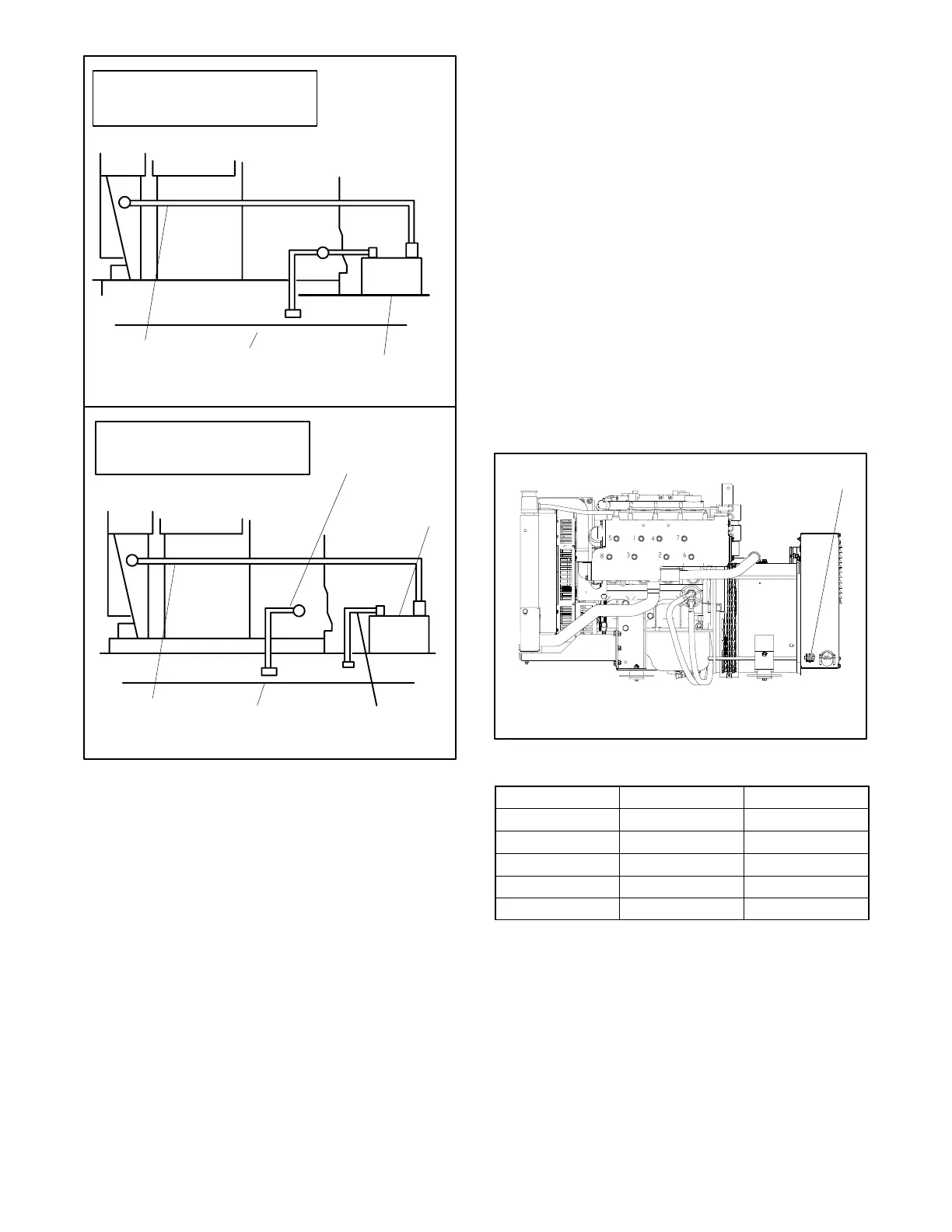

Figure 6-6 Battery Connection Details
6.6 Remote Connection
Kohler Co. offers several remote panels for connection
to the generator set. Contact your local Kohlerr
distributor/dealer for detailed descriptions. See
Figure 6-7 for the location of the remote interface
connection to the generator set junction box. Kohler Co.
also offers wiring harnesses in various lengths with a
connector keyed to the junction box connector. A
“pigtail” harness is also offered which includes the
appropriate connector on one end and has pigtails that
the installer can use to connect to a customer-supplied
start/stop switch or separate lights and hourmeter.
Consult wiring diagrams, ADVs, and instruction sheets
for connection information/details.
These models use a 12-pin connector for the remote
interface connection. See Figure 6-7 for the
connector’s location. See Figure 6-8 for the correct
customer-supplied plug and pin part numbers.
1
GM34867C
1. Remote interface connector
Non-Service Side View
Figure 6-7 Remote Interface Connector
Component Amp Part No. Kohler Part No.
Plug 350735-1 229998
Pin 350218-6 241618
Cable Seal 794280-1 GM29252
Interface Seal 794279-1 GM29507
Cavity Plug 770377-1 GM28769
Figure 6-8 Connector Components
Note: Gauge senders. Gauge senders are available
for most generator sets. If using customer-
supplied gauges, be sure they are compatible
with generator set senders. Contact an
authorized Kohlerr service distributor/dealer.
Gauges and senders are available as service
items from an authorized Kohlerr service
distributor/dealer.
