TP-6517 1/1112 Section 1 Features
1.5 Generator Set Components
ADV-7466-
1. Muffler
2. Oil check
3. Oil fill
4. Air cleaner
5. Fuses
6. RS-232 connector (for application program updates)
7. Controller user interface (see Figure 2-1)
8. Generator set master switch (RUN-OFF/RESET-AUTO)
9. Load circuit breaker
10. Field-connection terminal block location
11. Spark plug locations (both sides)
12. Oil drain hose
13. Oil drain valve
14. Oil filter
15. Exhaust
16. Equipment ground
17. Battery charger
18. DSAI lead location
19. Fuel system (see detail)
20. Gas regulator assembly
21. Fuel solenoid valve
22. Fuel inlet
23. Air intake
24. Engine starting battery location (battery purchased separately)
1234
14 13
24
9
8
16
17 20
21
22
23
15
11
10
18 19
12
5 6 7
23
Fuel system detail

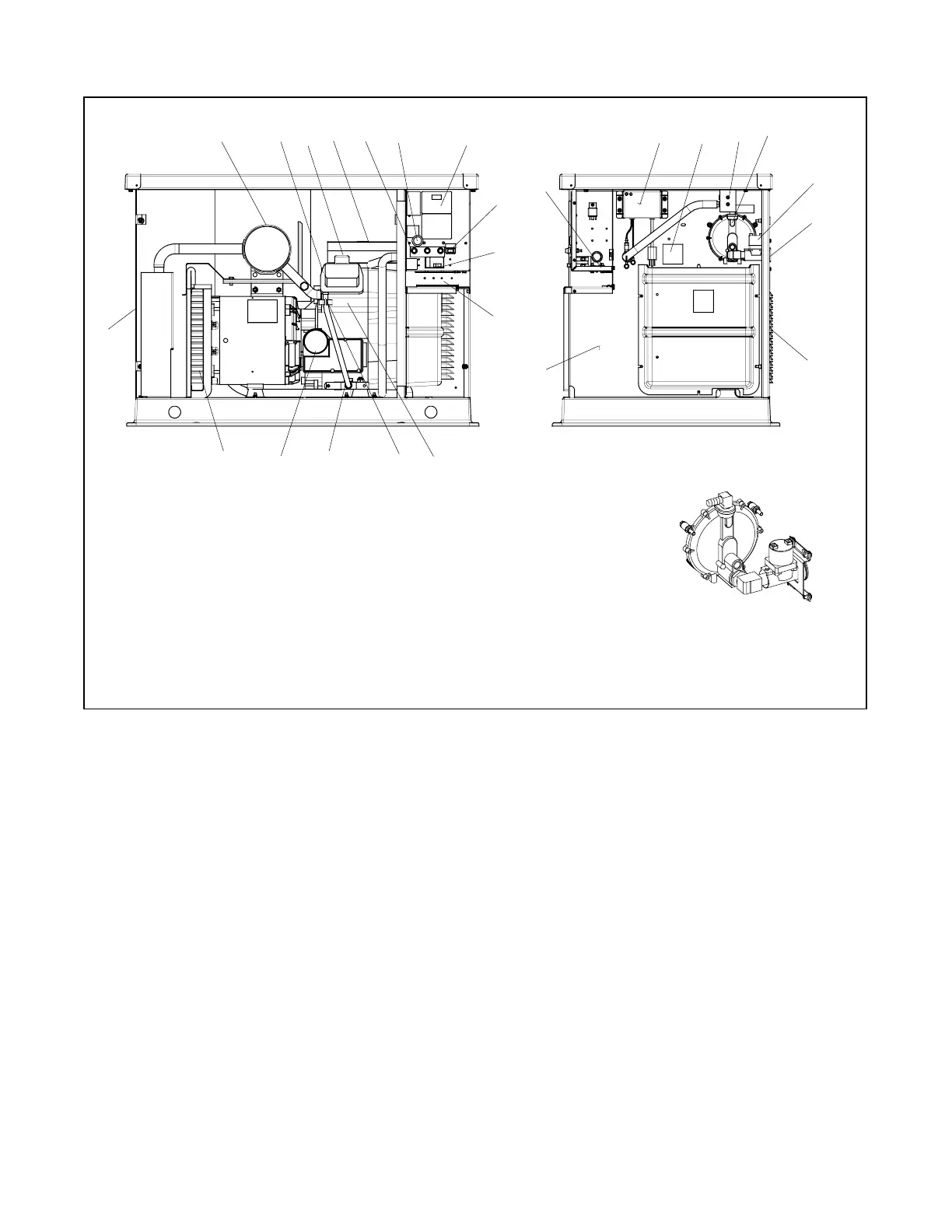

Figure 1-1 Generator Set Components, 12 kW Models
