TP-6069 6/03 25Section 6 Electrical System
6.7 Remote Start Switch
Connection
Kohler Co. offers several remote panels for connection
to the generator set. Contact your local Kohlerr
distributor/dealer for detailed descriptions. See
Figure 6-8 for remote start panel connection to the
generator set controller. Kohler Co. also offers a wiring
harness with a connector keyed to the controller box
connector. The other end of this harness has pigtails
that the installer can use to connect to a
customer-supplied start/stop switch or separate lights
and hourmeter. Consult wiring diagrams and instruction
sheets for connection information/details.

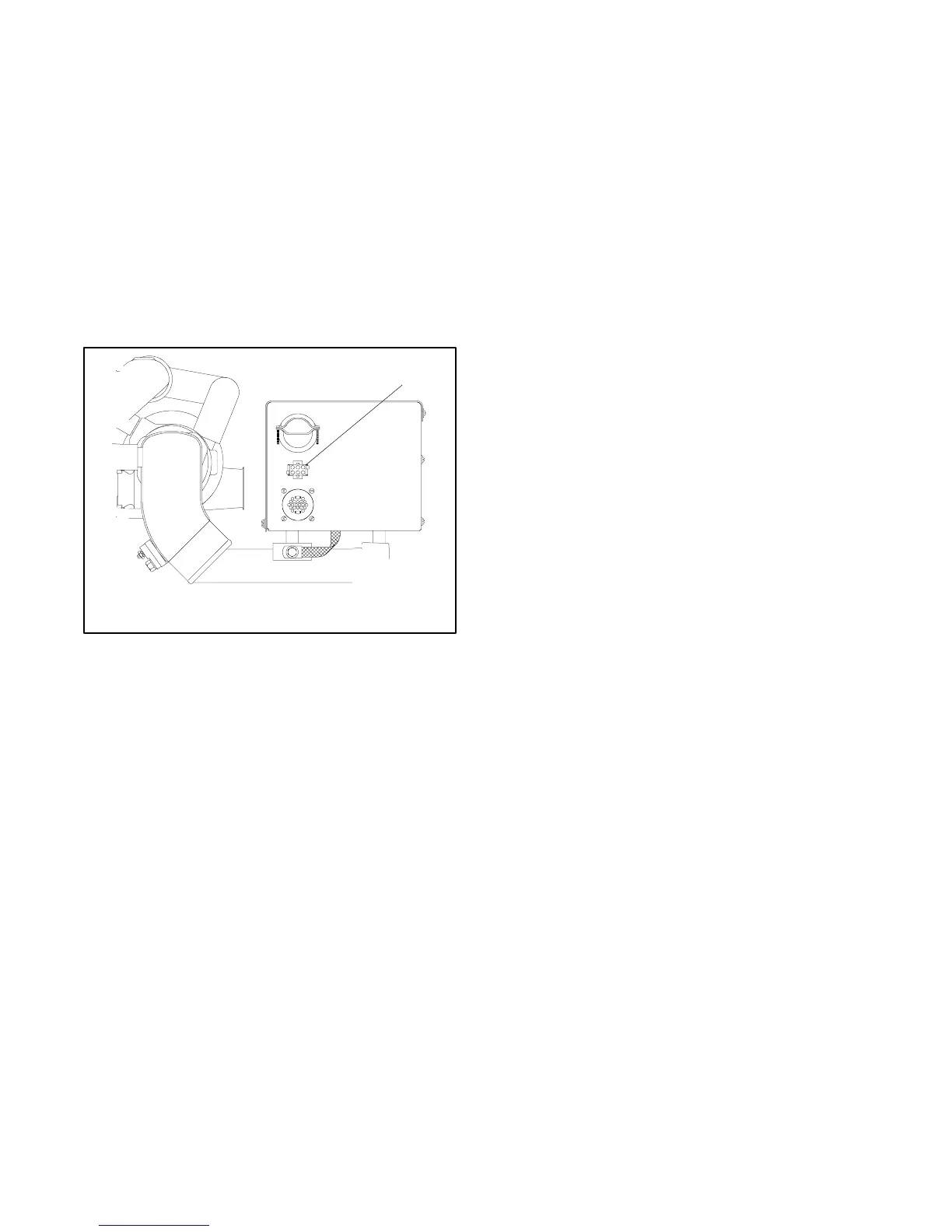

1
DA-250000-H
1. Controller remote connector
Figure 6-8 Controller Remote Connector, Typical
Note: Gauge senders. Gauge senders are available
for most generator sets. If using customer-
supplied gauges, be sure they are compatible
with generator set senders. Contact an
authorized Kohlerr service distributor/dealer.
Gauges and senders are available as service
items from an authorized Kohlerr service
distributor/dealer.
33--150 kW Models: Various wiring harnesses,
Y-connectors, pigtail harnesses, remote control panels,
and remote annunciator panels (Decision-Makert 3+
only) are available. See Figure 6-9 and Figure 6-10 for
wiring options.
3.5EFOZ/4EOZ Models: See Figure 7-3 for the
optional remote panel wiring.
