1. Install the Faucet
NOTE: Handle orientation is designed to be on the right.

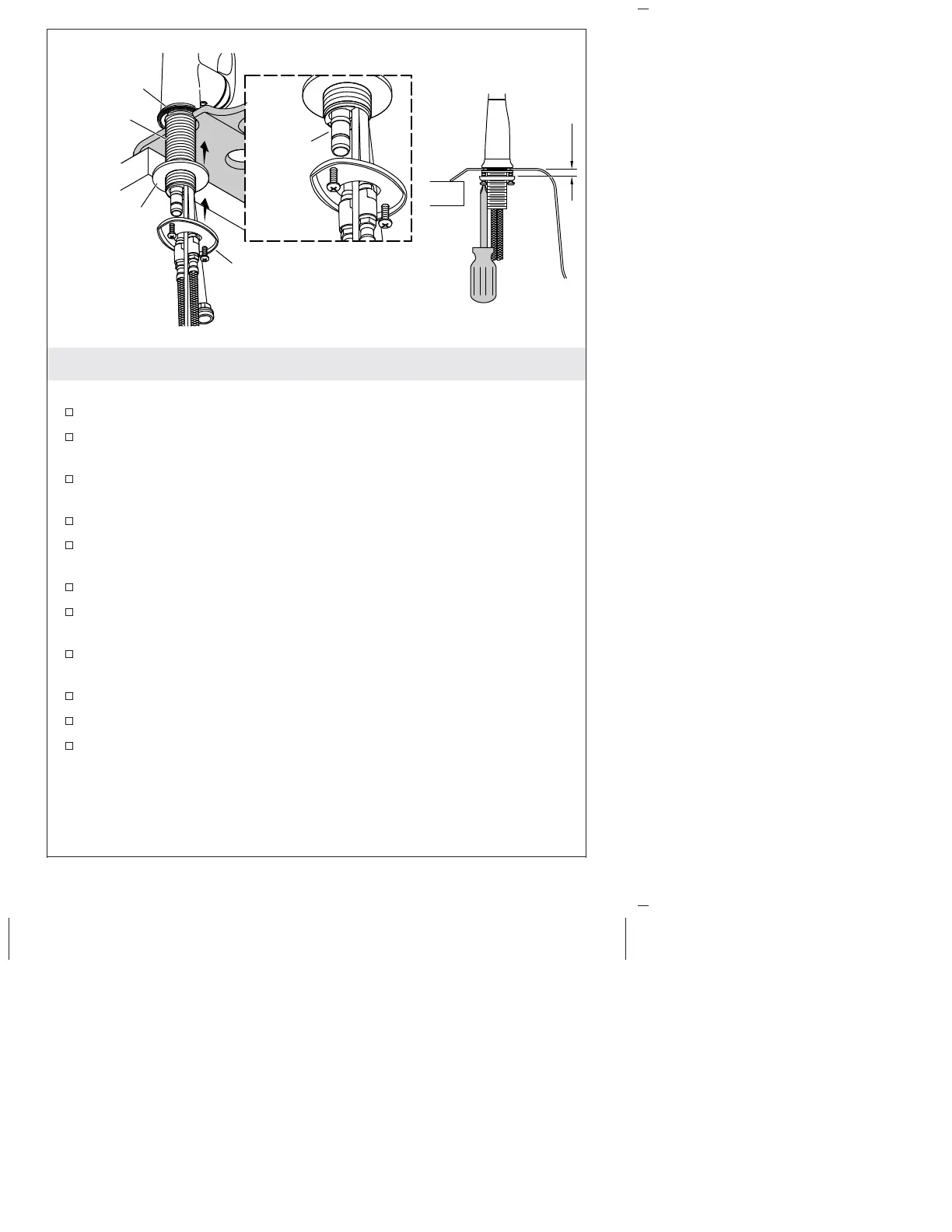

Thread the screws into the ring 1/4″ (6 mm) past the surface.
Insert the faucet through the mounting surface with the handle
on the right.
Pull the sprayhead out and rest it in the sink basin. Do not pull
the end of the spray hose into the shank.
From under the sink, push the spray hose up to the shank.
Slide the washer over the hoses and wires, then up onto the
shank.
Slide the ring over the hoses and wires, then up to the shank.
Thread the ring onto the shank until the washer contacts the
underside of the sink.
Adjust the ring to align the screws with the front and back of the
faucet.
Use a Phillips screwdriver to securely tighten the screws.
Pull the spray hose end down, away from the shank.
Slide the sprayhead back into the spout.
Escutcheon
Washer
Ring
1/4"
(6 mm)
Shank
Spray
Hose
1186051-2-E 4 Kohler Co.
