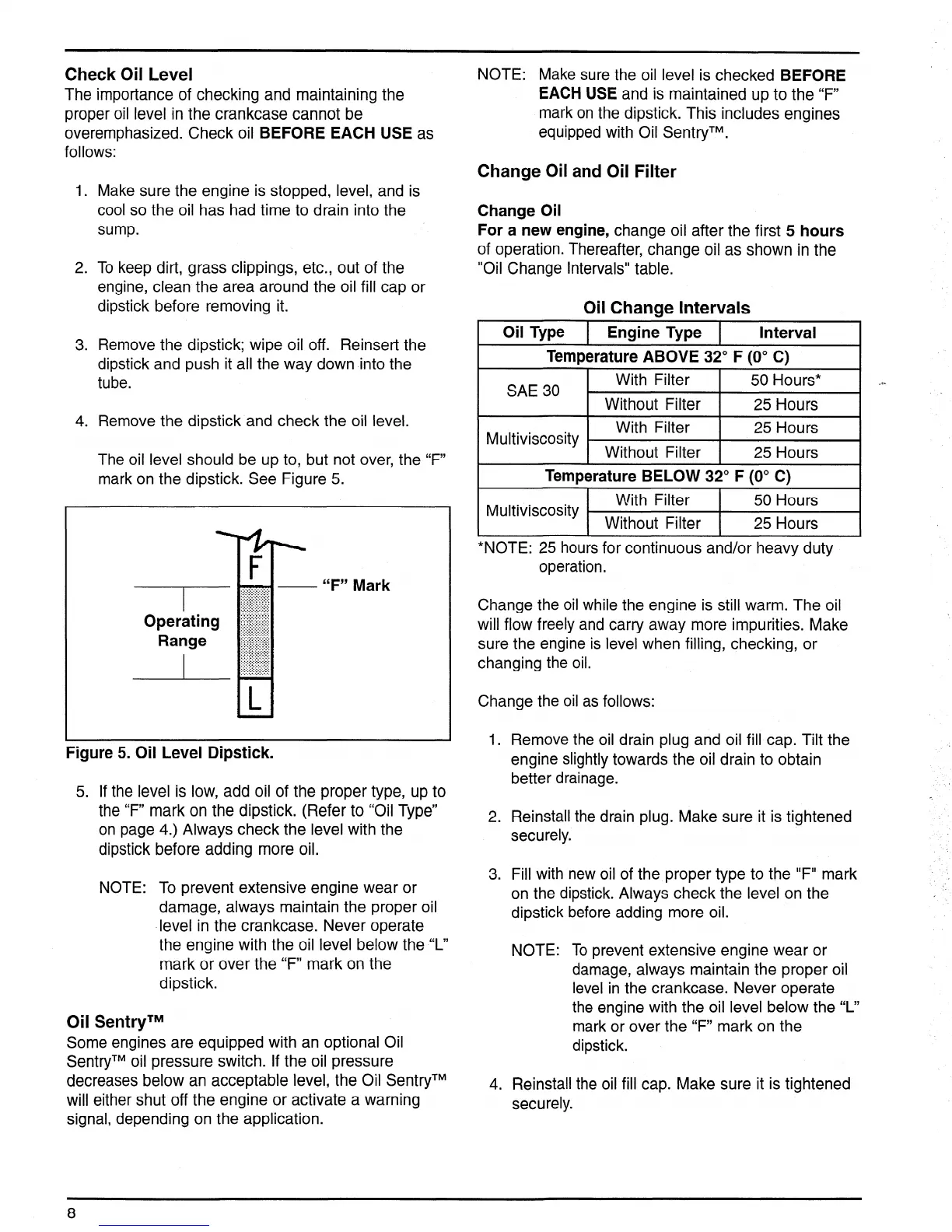

Check Oil Level
The importance of checking and maintaining the
proper oil level in the crankcase cannot be
overemphasized. Check oil BEFORE EACH USE as
follows:
1. Make sure the engine is stopped, level, and is
cool so the oil has had time to drain into the
sump.
2. To keep dirt, grass clippings, etc., out of the
engine, clean the area around the oil fill cap or
dipstick before removing it.
3. Remove the dipstick; wipe oil off. Reinsert the
dipstick and push it all the way down into the
tube.
4. Remove the dipstick and check the oil level.
The oil level should be up to, but not over, the “F”
mark on the dipstick. See Figure 5.
in-
. . . . . . . . . .
-......v.
:.:.:.:.:.z.:.:.:.:
Operating :;;;;:;:i:j;:;:
. . . . . . . . . .
:.:+:.:*:.:.:*:.:
'.'.‘.-.*.'.-.*.*.*
Range ~~TTC~J:
. . . . . . . . . .
..-.*.-.-.-_*.*.-.*
..I.......
. . . . . . . _.
1 ~oia
I
;Li
“F” Mark
Figure 5. Oil Level Dipstick.
5. If the level is low, add oil of the proper type, up to
the “F” mark on the dipstick. (Refer to “Oil Type”
on page 4.) Always check the level with the
dipstick before adding more oil.
NOTE: To prevent extensive engine wear or
damage, always maintain the proper oil
.level in the crankcase. Never operate
the engine with the oil level below the “L”
mark or over the “F” mark on the
dipstick.
Oil SentryTM
Some engines are equipped with an optional Oil
SentryTM oil pressure switch. If the oil pressure
decreases below an acceptable level, the Oil SentryTM
will either shut off the engine or activate a warning
signal, depending on the application.
NOTE:
Make sure the oil level is checked BEFORE
EACH USE and is maintained up to the “F”
mark on the dipstick. This includes engines
equipped with Oil SentryTM.
Change Oil and Oil Filter
Change Oil
For a new engine, change oil after the first 5 hours
of operation. Thereafter, change oil as shown in the
“Oil Change Intervals” table.
Oil Change Intervals
1 Oil Type 1 Engine Type 1
Interval 1
Temperature ABOVE 32” F (0” C)
I
SAE 30
With Filter
Without Filter
50 Hours* a%-
25 Hours
Multiviscosity
With Filter
25 Hours
Without Filter
25 Hours
Temperature BELOW 32” F (0” C)
Multiviscosity
With Filter 50 Hours
Without Filter 25 Hours
*NOTE: 25 hours for continuous and/or heavy duty
operation.
Change the oil while the engine is still warm. The oil
will flow freely and carry away more impurities. Make
sure the engine is level when filling, checking, or
changing the oil.
Change the oil as follows:
1. Remove the oil drain plug and oil fill cap. Tilt the
engine slightly towards the oil drain to obtain
better drainage.
2. Reinstall the drain plug. Make sure it is tightened
securely.
3. Fill with new oil of the proper type to the “F” mark
To Next Page
