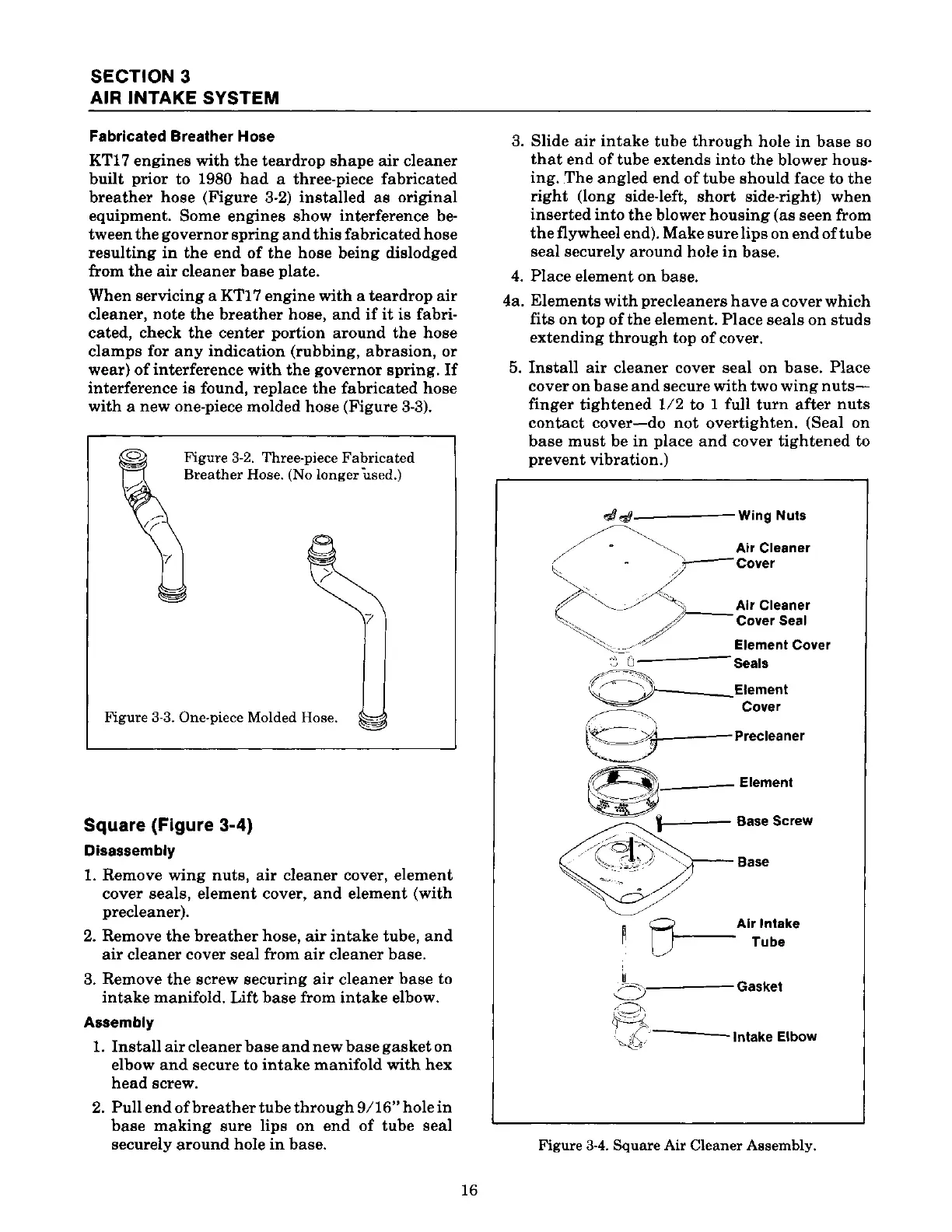

SECTION 3
AIR INTAKE SYSTEM
Fabricated Breather Hose
KT17
engines
with
the
teardrop
shape
air
cleaner
built
prior to 1980
had
a three-piece
fabricated
breather
hose
(Figure 3-2)
installed
as
original
equipment. Some
engines
show
interference be-
tween
the
governor
spring
and
this
fabricated
hose
resulting
in
the
end
of
the
hose
being
dislodged
from
the
air
cleaner
base
plate.
When
servicing
a KT17
engine
with
a
teardrop
air
cleaner, note
the
breather
hose,
and
if
it
is
fabri-
cated, check
the
center portion
around
the
hose
clamps
for
any
indication
(rubbing,
abrasion,
or
wear)
of
interference
with
the
governor
spring.
If
interference
is
found, replace
the
fabricated
hose
with
a
new
one-piece molded
hose
(Figure 3-3).
Figure
3-2.
Three-piece
Fabricated
Breather
Hose. (No
longer
used.)
Figure
3-3. One-piece Molded Hose.
Square {Figure 3-4)
Disassembly
7
1. Remove
wing
nuts,
air
cleaner
cover,
element
cover
seals,
element
cover,
and
element
(with
precleaner).
2. Remove
the
breather
hose,
air
intake
tube,
and
air
cleaner
cover
seal
from
air
cleaner
base.
3. Remove
the
screw
securing
air
cleaner
base
to
intake
manifold. Lift
base
from
intake
elbow.
Assembly
1.
Install
air
cleaner
base
and
new
base
gasket
on
elbow
and
secure to
intake
manifold
with
hex
head
screw.
2.
Pull
end
of
breather
tube
through
9/16"
hole
in
base
making
sure
lips
on
end
of
tube
seal
securely
around
hole
in
base.
16
3. Slide
air
intake
tube
through
hole
in
base
so
that
end
of
tube
extends
into
the
blower hous-
ing.
The
angled
end
of
tube
should
face
to
the
right
(long side-left,
short
side-right)
when
inserted
into
the
blower
housing
(as
seen
from
the
flywheel end). Make
sure
lips
on
end
of
tube
seal
securely
around
hole
in
base.
4.
Place
element
on
base.
4a.
Elements
with
precleaners
have
a cover
which
fits
on
top
of
the
element.
Place
seals
on
studs
extending
through
top
of
cover.
5.
Install
air
cleaner
cover
seal
on
base.
Place
cover
on
base
and
secure
with
two
wing
nuts-
finger
tightened
112 to 1 full
turn
after
nuts
contact
cover-do
not
overtighten.
(Seal
on
base
must
be
in
place
and
cover
tightened
to
prevent
vibration.)
·.~
0 Seals
/"~-~
e~-;;J
Element
~
Cover
~=:,'
Precleaner
~----Element
11----
Base Screw
w~Base
6
R___
Air
Intake
r
LT
- Tube
~
a-----Gasket
_.-;'-)-,
R
'~
----Intake
Elbow
Figure
3-4.
Square
Air
Cleaner
Assembly.
