Cap (/? i ., ~Detail
SECTION 6
ELECTRICAL SYSTEMS AND COMPONENTS
CAUTION:
(Cont.)
End ~ Brush
\1(t -o,"' o Permanent
r~',, &~<~~:: CJ~agn,
'-~'~, "' .···~
~ '' ...... ., y ....
,·. ....... ....... ~.~/ 'i
'.............. Frame
1
continue running, the engine must be
allowed to come to a complete stop
before a restart attempt is made. If
the starter motor is activated while
the flywheel is still rotating, the
starter pinion and flywheel ring gear
may clash and be damaged.
If starter motor will not turn the
engine over, shut off starter motor
immediately and make no further
attempt to start engine until the con-
dition is corrected.
Armatur~ +...... ...... ............ - ...... / Dust
~0
1
~ ',j Shield
e-<
I '-~
Thru Boll r§;li
~~i;~ap~ /j·~''
DO NOT crank engine continuously
for more than 10 seconds at a time.
Drive Pinion / · Pm1on
Shield Anti-Drift Stop
A 60 second cool-down period must be
allowed between cranking attempts
if the engine does not start. Failure to
follow
these guidelines may result in
burn-out of the starter motor.
Retainer Spring Nul

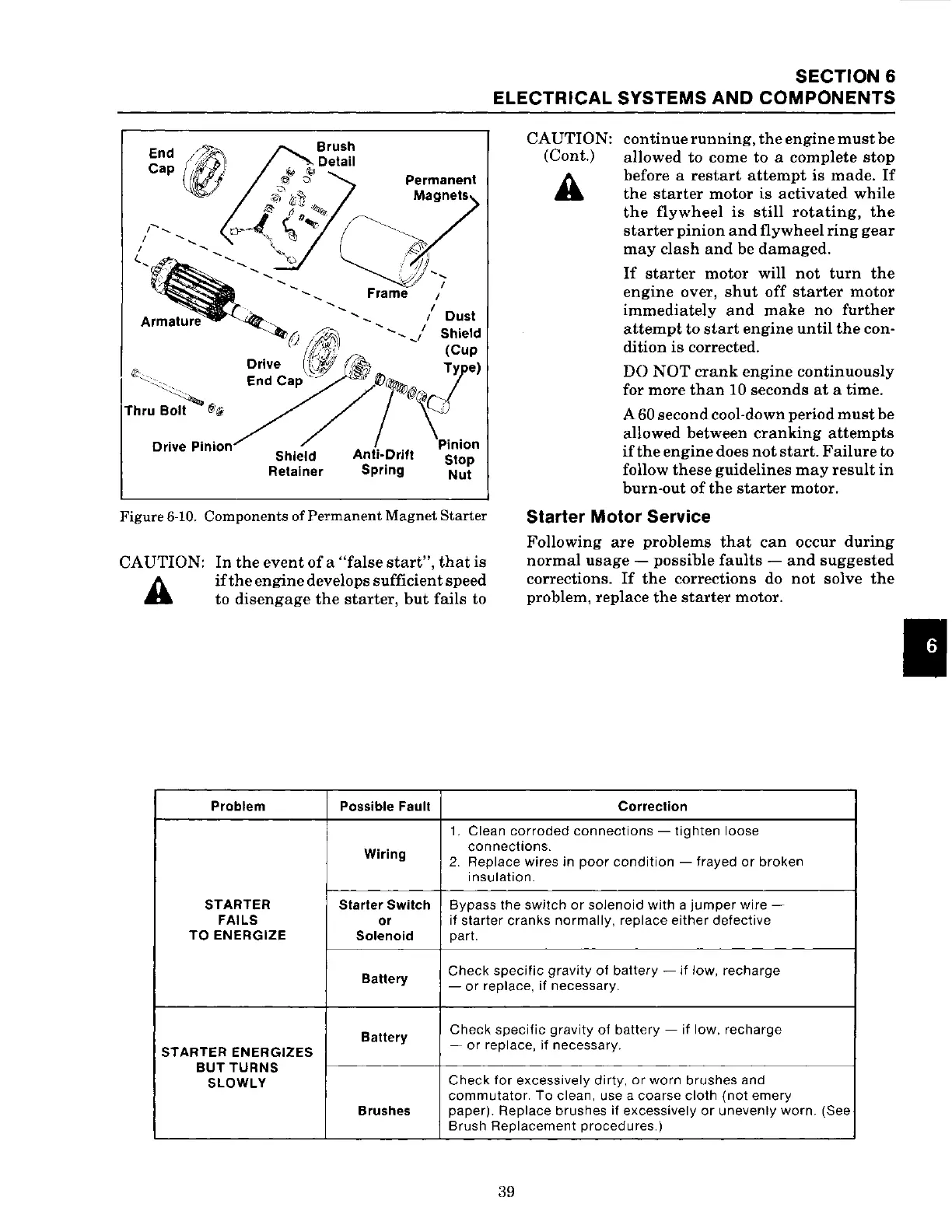

Figure 6-10. Components of Permanent Magnet Starter
Starter Motor Service
CAUTION:
In the event of a "false start", that is
if the engine develops sufficient speed
to
disengage the starter, but fails to
Following are problems that can occur during
normal usage -possible faults - and suggested
corrections. If the corrections do not solve the
problem, replace the starter motor.
A
Problem Possible Faull Correction
1. Clean corroded connections- tighten loose
Wiring
connections.
2.
Replace wires in poor condition -frayed or broken
insulation.
STARTER
Starter Switch
Bypass the switch or solenoid with a jumper wire-
FAILS or if starter cranks normally, replace either defective
TO ENERGIZE
Solenoid part.
Battery
Check specific gravity of battery -if low, recharge
-or replace, if necessary.
Battery
Check specific gravity of battery- if low, recharge
STARTER ENERGIZES
-or replace, if necessary.
BUT TURNS
SLOWLY
Check for excessively dirty, or worn brushes and
commutator. To clean, use a coarse cloth (not emery
Brushes
paper). Replace brushes if excessively or unevenly worn. (See
Brush Replacement procedures.)
39
