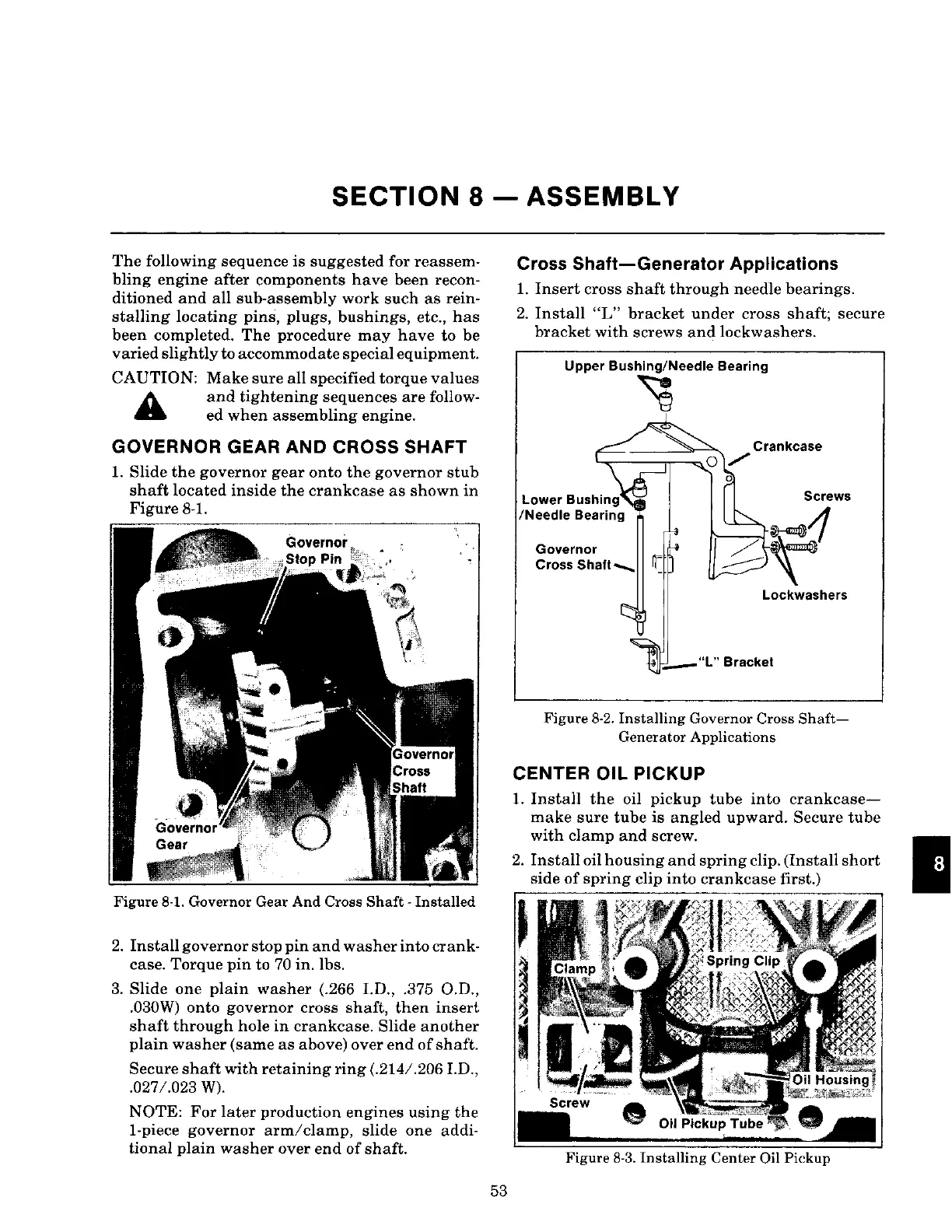

SECTION 8- ASSEMBLY
The following sequence is suggested for reassem-
bling engine after components have been recon-
ditioned and all sub-assembly work such as rein-
stalling locating pins, plugs, bushings, etc., has
been completed. The procedure may have to be
varied slightly to accommodate special equipment.
CAUTION: Make sure all specified torque values
A and tightening sequences are follow-
.. ed when assembling engine.
GOVERNOR GEAR AND CROSS SHAFT
1. Slide the governor gear onto the governor stub
shaft located inside the crankcase as shown in
Figure 8-1.
Figure 8-1. Governor Gear And Cross Shaft- Installed
2. Install governor stop pin and washer into crank-
case. Torque pin to 70 in. lbs.
3. Slide one plain washer (.266 I.D., .375 O.D.,
.030W)
onto governor cross shaft, then insert
shaft through hole in crankcase. Slide another
plain washer (same as above) over end of shaft.
Secure shaft with retaining ring (.214/.206 I.D.,
.0271.023 W).
NOTE: For later production engines using the
1-piece governor arm/clamp, slide one addi-
tional plain washer over end of shaft.
53
Cross Shaft-Generator Applications
1. Insert cross shaft through needle bearings.
2. Install "L" bracket under cross shaft; secure
bracket with screws and lockwashers.
Upper Bushing/Needle Bearing
Governor
Cross Shaft-
~
Screws
Lockwashers
Figure 8-2. Installing Governor Cross Shaft-
Generator Applications
CENTER OIL PICKUP
1. Install the oil pickup tube into crankcase-
make sure tube is angled upward. Secure tube
with clamp and screw.
2. Install oil housing and spring clip. (Install short
side of spring clip into crankcase first.)
