9TP-7088 6/17 KohlerPower.com
Electrical System

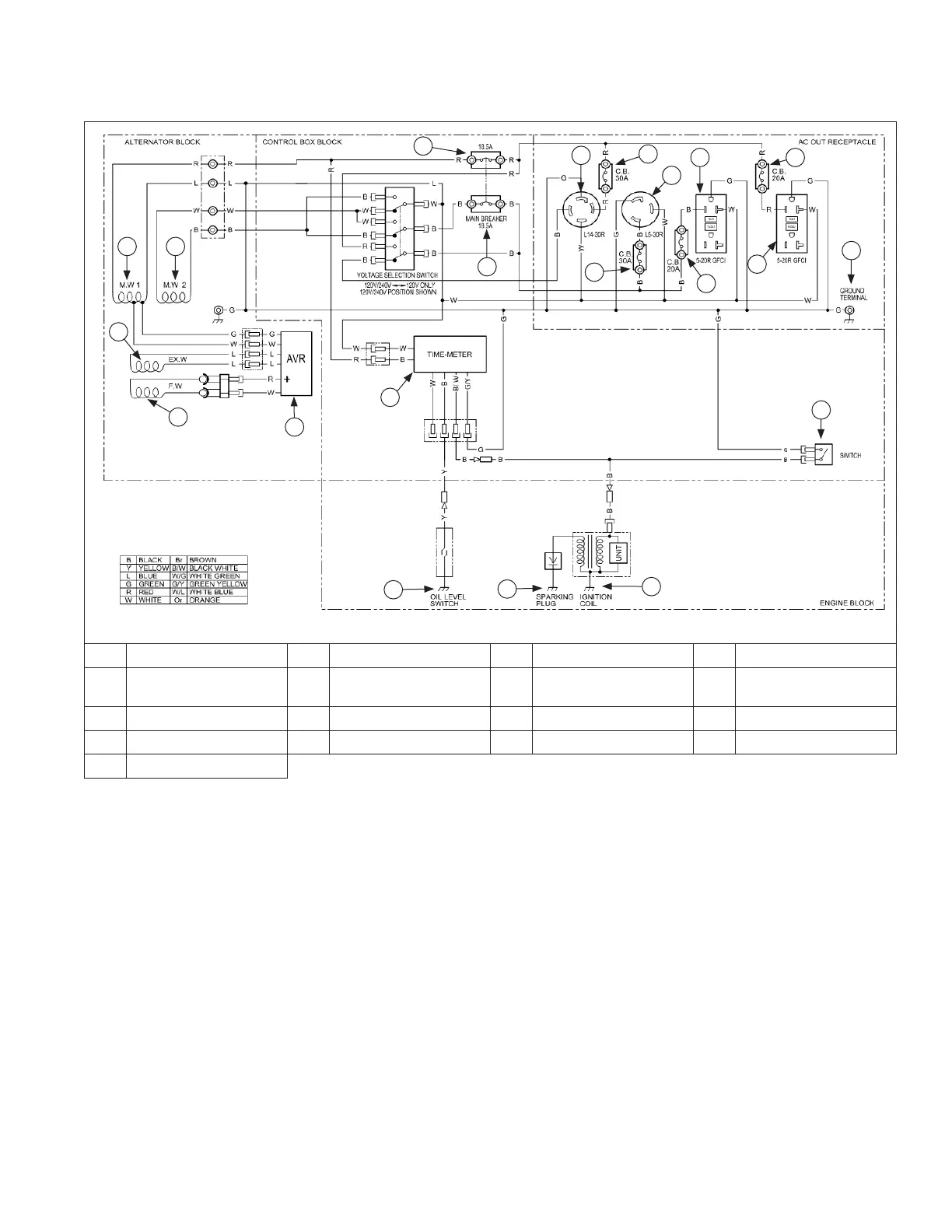

PRO6.4 Wiring Diagram
N
L
G
C
F
E
J
G
H
K
BA
E
M
D
A Main Winding 1 B Main Winding 2 C Exciter Field Coil D Sub Coil
E Circuit Breaker 18.5A F
240/120V/30A
Electrical Socket
G Circuit Breaker 30A H
120V/30A Electrical
Socket
I Circuit Breaker 20A J GFCI Receptacle K Ground Terminal L On/Off Switch
M AVR N Maintenance Minder O Oil Level Switch P Spark Plug
Q Ignition Module
I
I
J
O
P
Q
