Kohler Torsion User Manual

6
1160104-W2-D
INSTALLATION
Note!Coverthetraywastetopreventthelossofsmallparts.
Note!Protectthetraysurfaceduringenclosureinstallation.
1
± 0 mm
20 mm
Note! Make sure that the
wallshavebeentileddown
tothetray.
Height of Enclosure (mm) 1952
Min/Max Frame Adjustment Enclosure Size Minimum (mm) Maximum (mm)
700 660 700
760 720 760
800 760 800
900 860 900
1000 960 1000
1200 1160 1200

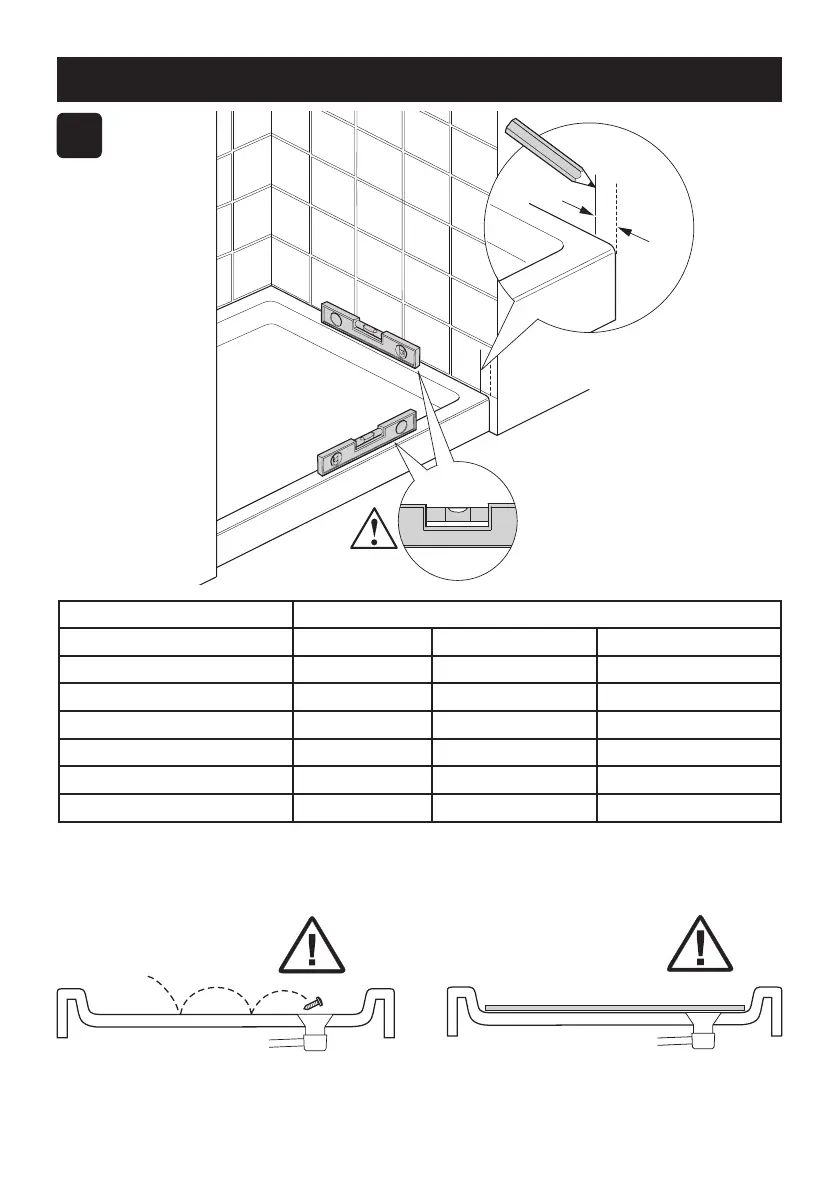

(a) Installtheshowertrayinaccordancewiththemanufacturer’sinstructions.
Caution!Makesurethattheshowertrayislevelandthatthewallsarevertical
andsquare.
