00 Index and foreword SEN00094-05
PC200, 220-8
31
Type 3

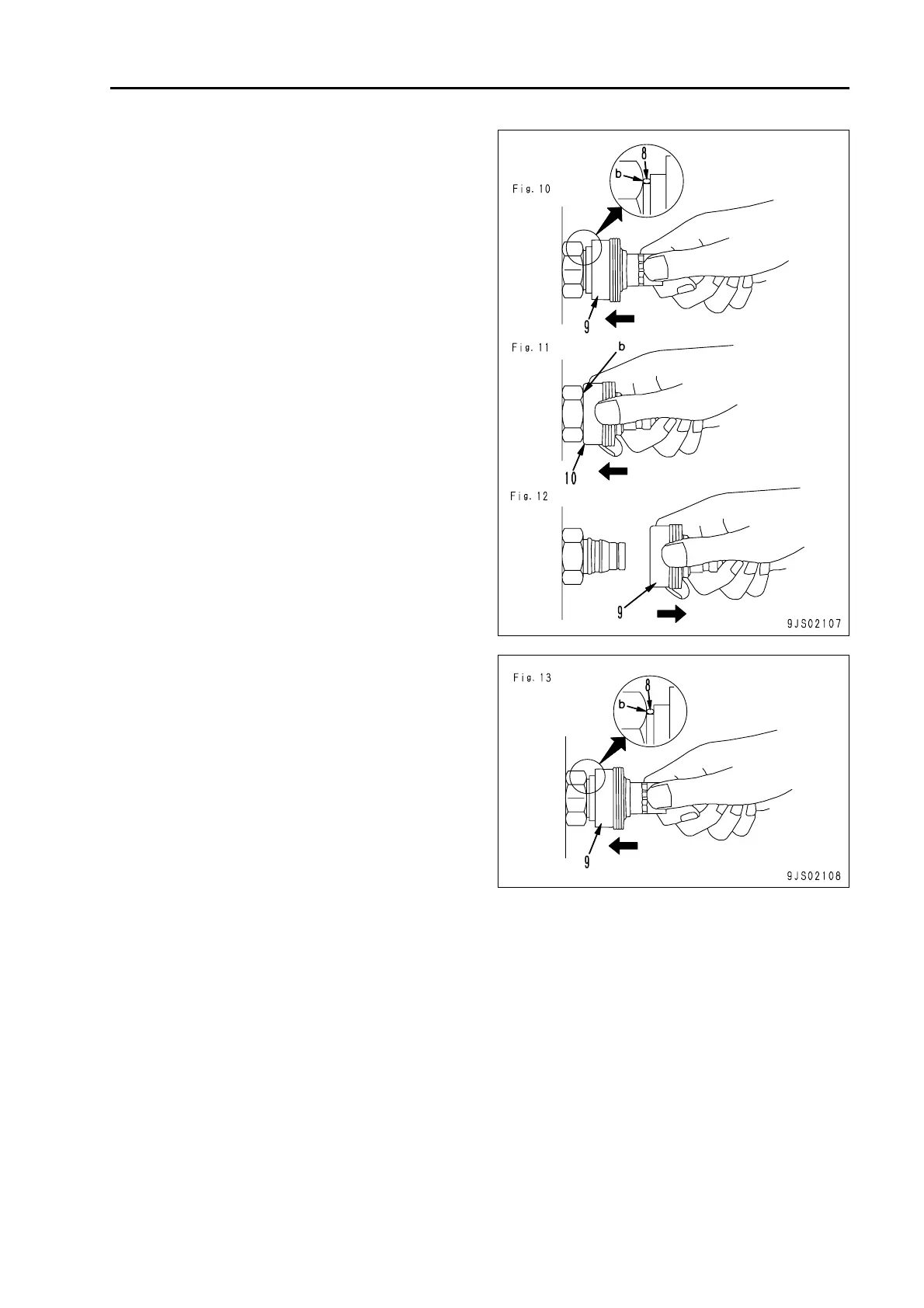

1. Disconnection
1) Hold the tightening portion and push body
(9) straight until sliding prevention ring (8)
contacts contact surface (b) of the hexag-
onal portion at the male end. (Fig. 10)
2) While holding the condition of Step 1),
push cover (10) straight until it contacts
contact surface (b) of the hexagonal por-
tion at the male end. (Fig. 11)
3) While holding the condition of Steps 1)
and 2), pull out whole body (9) to discon-
nect it. (Fig. 12)
2. Connection
q Hold the tightening portion and push body
(9) straight until the sliding prevention ring
contacts contact surface (b) of the hexag-
onal portion at the male end. (Fig. 13)

Komatsu PC200-8 Specifications

General

Operating Weight	20, 000 kg
Max Digging Depth	6, 620 mm
Swing Speed	12.5 rpm
Travel Speed	5.5 km/h
Fuel Tank Capacity	400 L
Engine Power	110 kW
Bucket Capacity	0.8 m³
