BASIC MACHINE INTRODUCTION
This Komatsu machine is designed mainly for the following types of work:
• Digging
• Leveling
• Ditching
• Loading
• Demolition

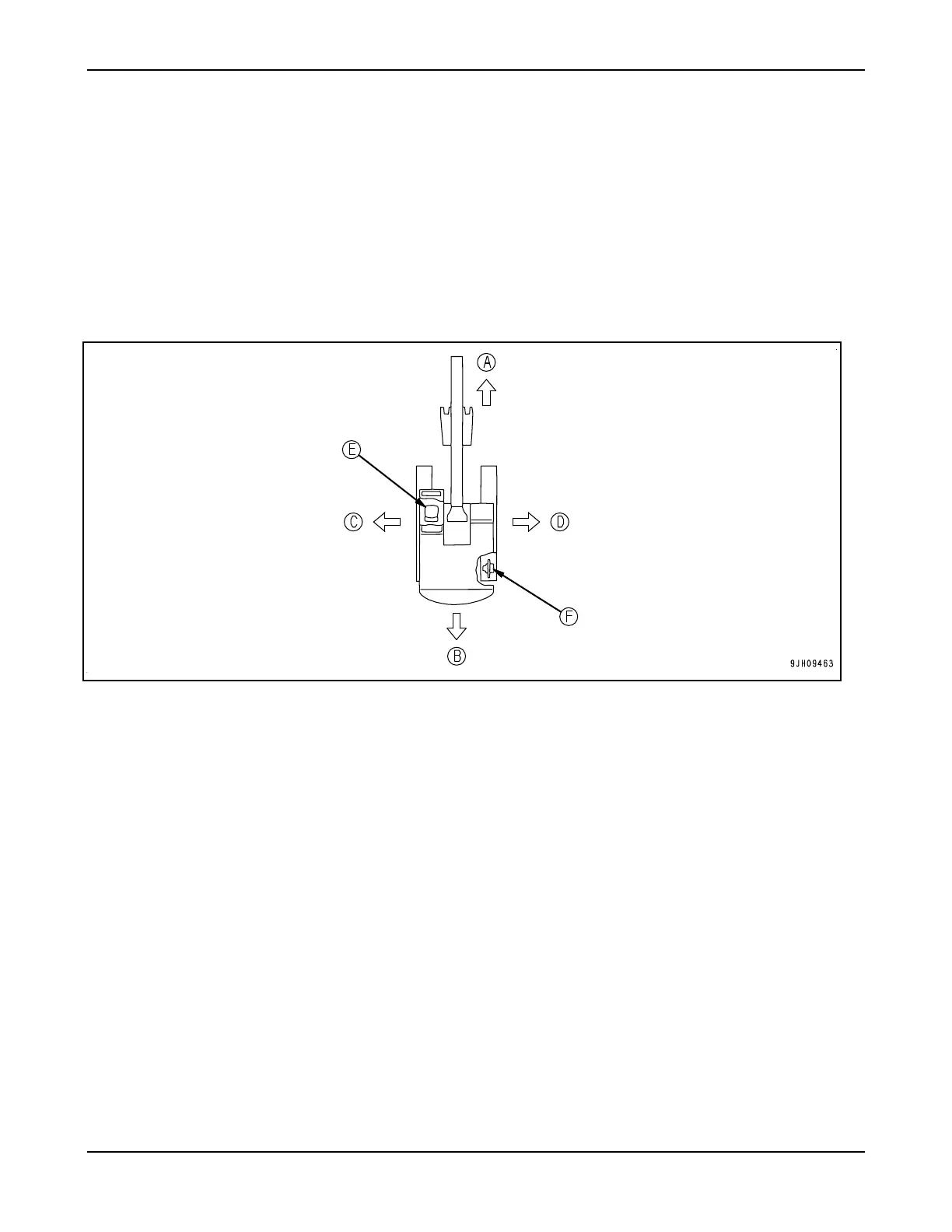

Directions of Machine
In this manual terms front, rear, left and right refer to the travel direction as seen from the operator's seat
when the operator's seat is facing the front and the sprocket is at the rear of the machine.
A. Front D. Right
B. Rear E. Operator's Seat
C. Left F. Sprocket
BASIC MACHINE INTRODUCTION INTRODUCTION
1-4 PC240LC-10
