INTRODUCTION
MAIN USE OF MACHINE
This Komatsu machine is designed to be used mainly for the following work:
•
Digging work
• Ditching work
• Loading work
• Leveling work
• Demolition work
For details of work procedure, see MACHINE OPERATIONS AND CONTROLS “RECOMMENDED APPLICA-
TIONS (3-222)”.

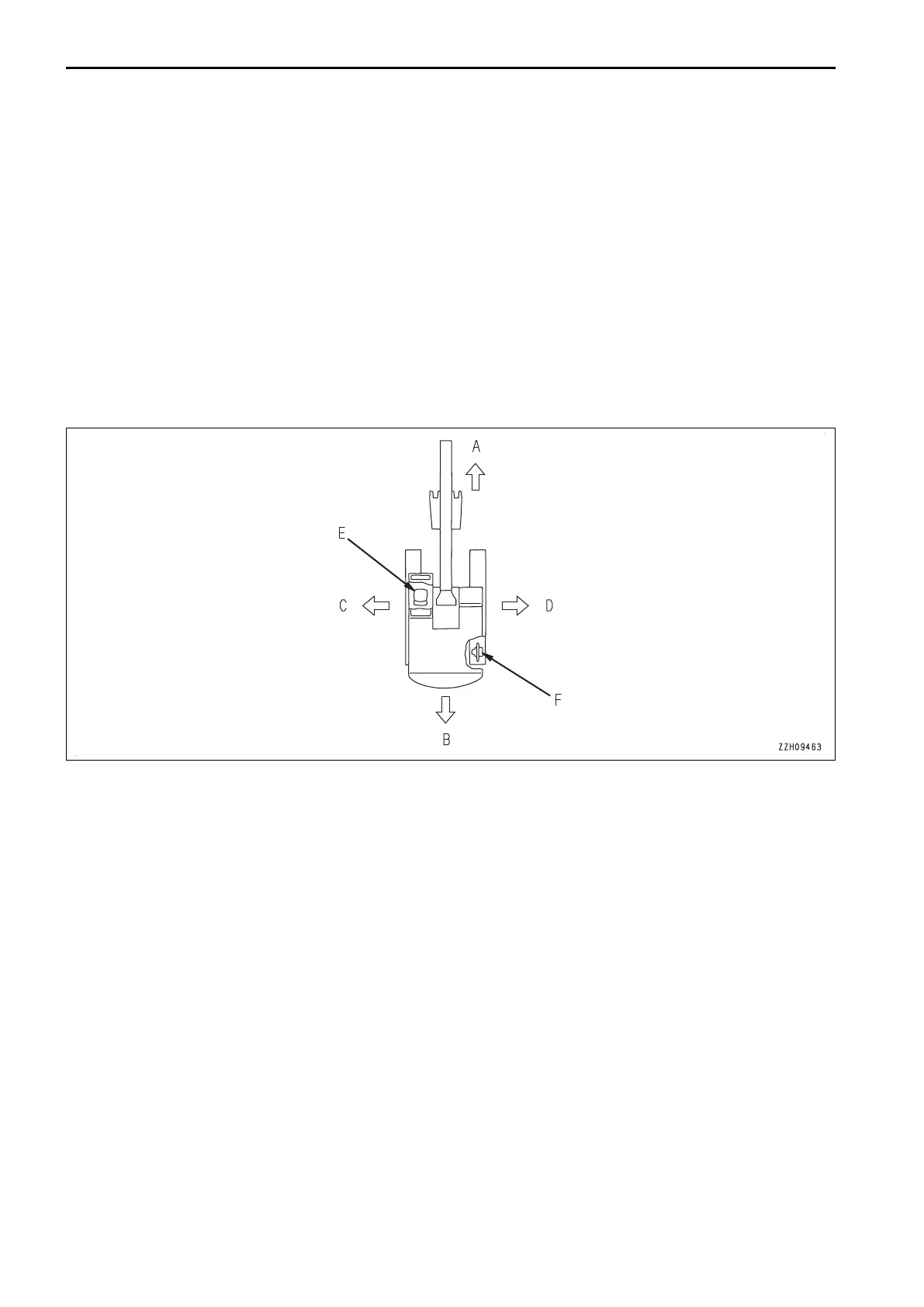

DIRECTIONS OF MACHINE
(A) Front
(B) Rear
(C) Left
(D) Right
(E) Operator's seat
(F) Sprocket
In this manual, the terms front, rear, left, and right refer to the travel direction as seen from the operator's seat
when the operator's seat is facing the front and the sprocket is at the rear of the machine.
VISIBILITY FROM OPERA
TOR'S SEAT
This machine complies with the visibility standard (ISO 5006).
This machine maintains a proximity visibility of a height of 1.5 m {4 ft 11 in} at a point 1 m {3 ft 3 in} away from
the outside surface of the machine, and a visibility for a radius of 12 m {39 ft 4 in}.
Protective structures
This machine is equipped with a structure to protect the operator (ROPS) conforming to ISO121
17-2.
For the location of the nameplate of the structure to protect the operator (ROPS), see “LOCATION OF SAFETY
LABELS (2-5)”.
INTRODUCTION FOREWORD
1-4
