VISIBILITY STANDARD
This machine complies with the visibility standard (ISO 5006).

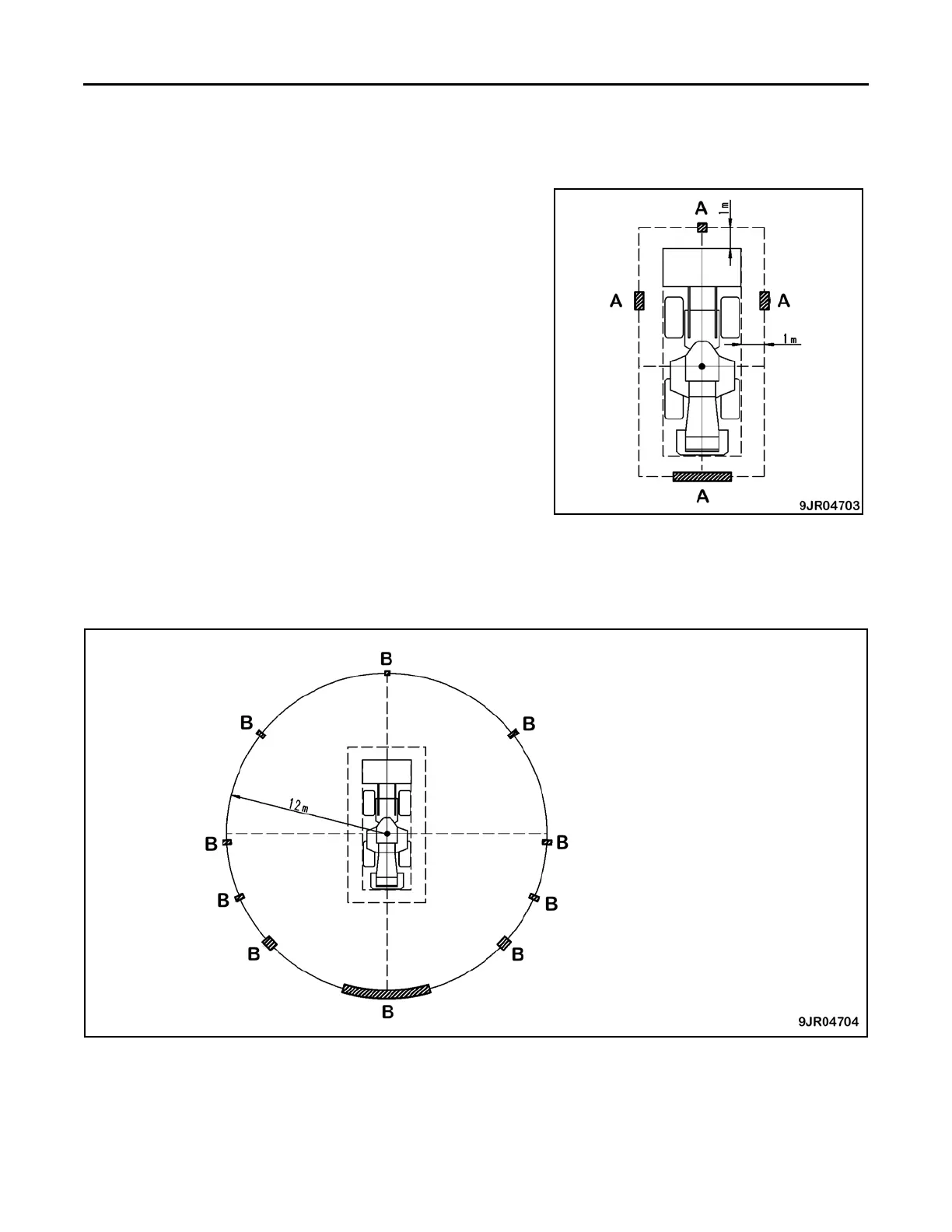

Visibility in Immediate Area
The visibility of this machine in the area 1 meter (1.1 yd) from the
outside surface of the machine at a height of 1.5 m (1.6 yd) is shown in
the diagram. The hatched area (A) shows the area where the view is
blocked by part of the machine when mirrors or other aids to visibility
are installed as standard. Be careful; there are places around the
machine that cannot be seen when operating the machine.
12-M Radius Visibility
The visibility at a radius of 12 meters (13.1 yd) from the machine is
shown in the following diagram. The hatched areas (B) show the areas where the view is blocked when mirrors or other aids to
visibility are installed as standard. Be careful; there are places around the machine that cannot be seen when operating the
machine.
