Connecting the 611T, 611R
6
5 Connecting the 611T, 611R
To connect the 611T, 611R, as shown in Figure 3, do the following
1
1. On the 611T, connect a composite video source (for example, a video
player) to the INPUT BNC connector.
:
2. On the 611R, connect the OUTPUT BNC connector to a composite video
acceptor (for example, a video recorder).
3. Connect a fiber optic cable from the TO FIBER connector on the 611T to
the FROM FIBER connector on the 611R.
4. Connect a 12V DC power supply to each of the units (not shown in the
illustration).
5. As needed, adjust the HF and GAIN trimmers on each unit with a small
screwdriver
2
.

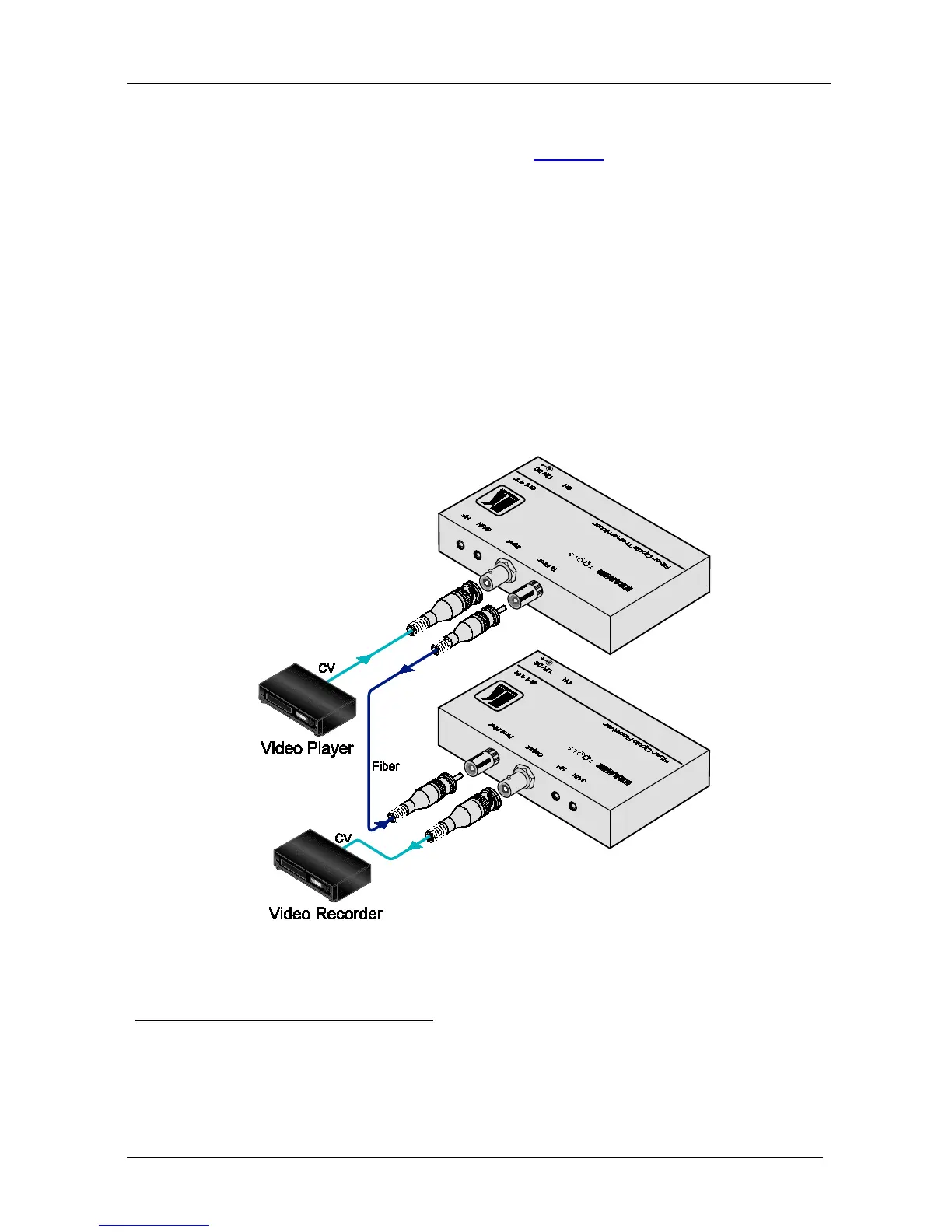

Figure 3: Connecting the 611T, 611R
1 Switch OFF the power on each device before connecting it to your 611T, 611R. After connecting your 611T, 611R, switch
on its power and then switch on the power on each device
2 The units come pre-adjusted from the factory for optimum performance and transparent operation. Adjustment is not
normally required if all cables and connectors are working properly
