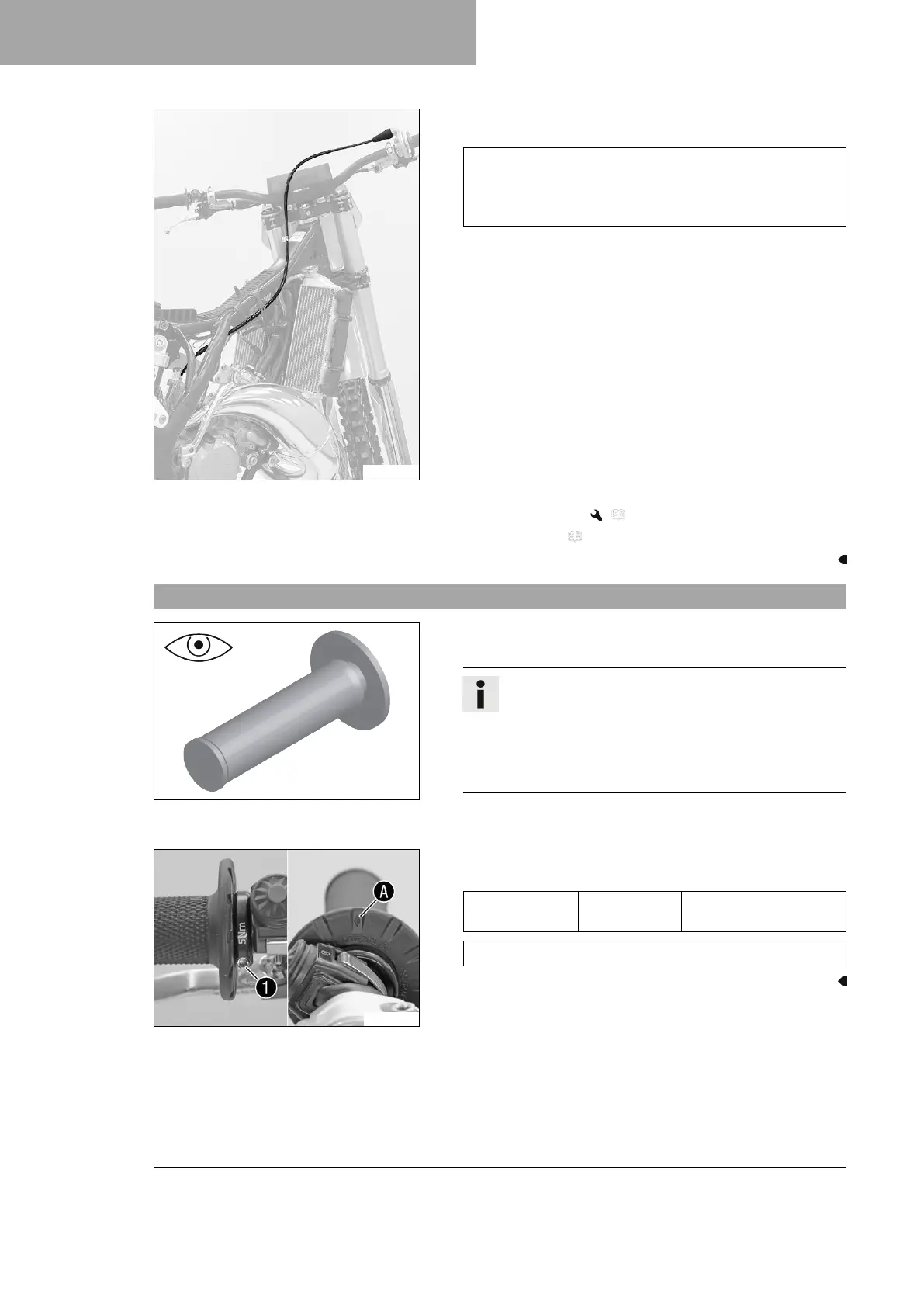

11 SERVICE WORK ON THE CHASSIS
76
K01192-10
Main work
– Check throttle cable routing.
The throttle cable must be routed along the back of the
handlebar, to the right of the frame, above the fuel tank
bracket, and to the carburetor. The throttle cable must be
secured on the fuel tank bracket with a rubber strap.
» If the throttle cable routing is not as specified:
– Correct the throttle cable routing.
Finishing work
– Install the fuel tank. ( p. 68)
– Mount the seat. ( p. 61)
11.41 Checking the rubber grip
401197-01
– Check the rubber grips on the handlebar for damage, wear,
and looseness.
Info
The rubber grips are vulcanized onto a sleeve on the
left and onto the handle tube of the throttle grip on the
right. The left sleeve is clamped onto the handlebar.
The rubber grip can only be replaced with the sleeve or
the throttle tube.
» If a rubber grip is damaged or worn:
– Change the rubber grip.
102245-10
–
Check that screw
1
is firmly seated.
Guideline
Screw, fixed
grip
M4 5 Nm (3.7 lbf ft)
Loctite
®
243™
Diamond
A
must be located at the top.
