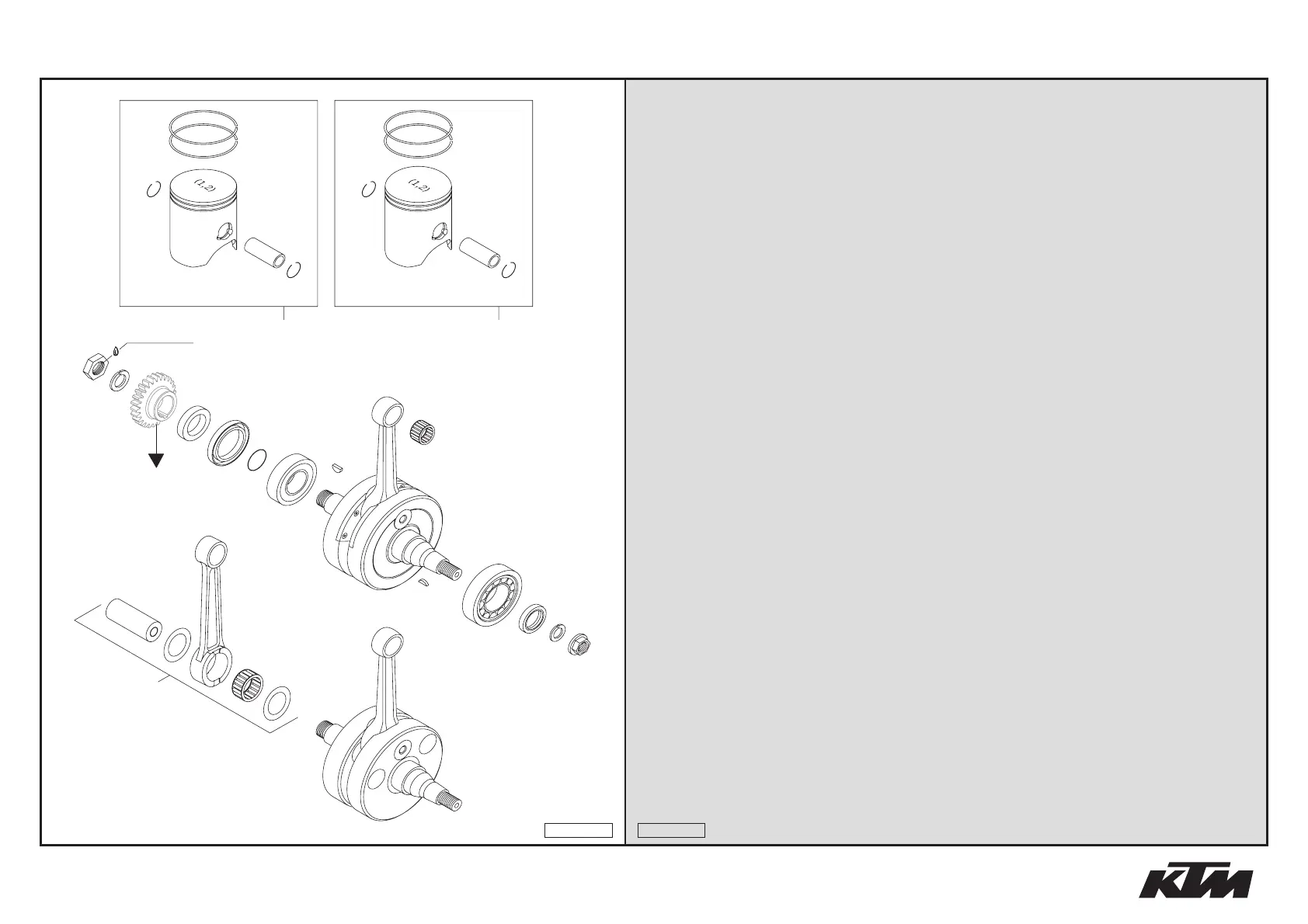

KURBELWELLE · KOLBEN » CRANKSHAFT · PISTON

250-300 / 2005

* NEUTEIL / NEW PART X NACH BEDARF / AS REQUIRED

FIG TEILNR/PARTNR BEZEICHNUNG DESCRIPTION QTY

1* 548.30.007.100/ I KOLBEN I KPL.250 SX VERTEX 05 PISTON I CPL.250 SX VERTEX 05 1

1* 548.30.007.100/ II KOLBEN II KPL.250 SX VERTEX 05 PISTON II CPL.250 SX VERTEX 05 1

2 546.30.207.100/ I KOLBEN I KPL. 66,4MM 250 2000 PISTON I CPL. 66,4MM 250 2000 1

2 546.30.207.100/ II KOLBEN II KPL. 66,4MM 250 2000 PISTON II CPL. 66,4MM 250 2000 1

2 548.30.107.000/ I KOLBEN I KPL. 300 VERTEX 2004 PISTON I CPL. 300 VERTEX 2004 1

2 548.30.107.000/ II KOLBEN II KPL. 300 VERTEX 2004 PISTON II CPL. 300 VERTEX 2004 1

3 540.30.074.000 DRAHTSPRENGRING C18X1,5 WIRE LOCK RING C18X1,5 2

4 546.30.233.000 KOLBENBOLZEN 18X55,8 250 2000 PISTON PIN 18X55,8 250 2000 1

6 546.30.029.000 SK-MUTTER M18X1,5-LINKS HEX.NUT L/SH M18X1,5 1

7 581.32.072.000 SPERRKANTRING VSK 18 LOCK WASHER VSK 18 1

9 548.30.016.000 DISTANZHÜLSE 28X38X10 03 SPACER SLEEVE 28X38X10 03 1

10 0760 385273 WELLENDICHTRING 38X52X7 BTSL SHAFT SEAL RING 38X52X7BTSL 1

11 0625 623204 RILLENKUGELLAGER 32X65X17 NTN BALL BEARING 32X65X17 NTN 1

12* 548.30.018.200 KURBELWELLE 250 SX 05 CRANKSHAFT 250 SX 05 1

SX SX

13 548.30.118.000 KURBELWELLE 250/300 MXC,EXC 04 CRANKSHAFT 250/300 MXC, EXC 04 1

EXC+MXC EXC+MXC

14 544.30.034.000 NADELLAGER KBK 18X22X20 NEEDLE BEARING KBK 18X22X20 1

15 0888 030050 SCHEIBENFEDER DIN6888-3X5X13 WOODRUFF KEY DIN6888-3X5X13 1

16 565.30.123.200 ZYLINDERROLLENL. NJ207ET2XCS42 CYLIND.ROL.BEAR. NJ207ET2XCS42 1

17 6 946 005 SCHEIBENFEDER 5X6,5 GEHÄRTET WOODRUFF KEY 5X6,5 HARDED 1

18 0760 253570 WELLENDICHTRING 25X35X7 BTSL SHAFT SEAL RING 25X35X7 BTSL 1

19 502.30.029.012 SPERRKANTRING VSK 12 LOCKING RING VSK 12 1

20 490.30.021.000 BUNDMUTTER M12X1 RECHTS COLLAR NUT M12X1 R/S 1

30 548.30.015.044 PLEUEL-REP. SATZ 250/300 CONROD REP. KIT 250/300 1

31 0770 250015 O-RING 25,00X1,50 NBR 70 O-RING 25,00X1,50 NBR 70 1

32 546.30.232.000 R-RING 66,4MM 250 2000 SQUARE RING 66,4MM 250 2000 2

250 250

32 548.30.132.000 R-RING 72,0MM 300 2004 R-RING 72,0MM 300 2004 2

300 300

05-548.30.2

6
