Repair manual KTM 250 -F Art.-No. 3.206.052-E

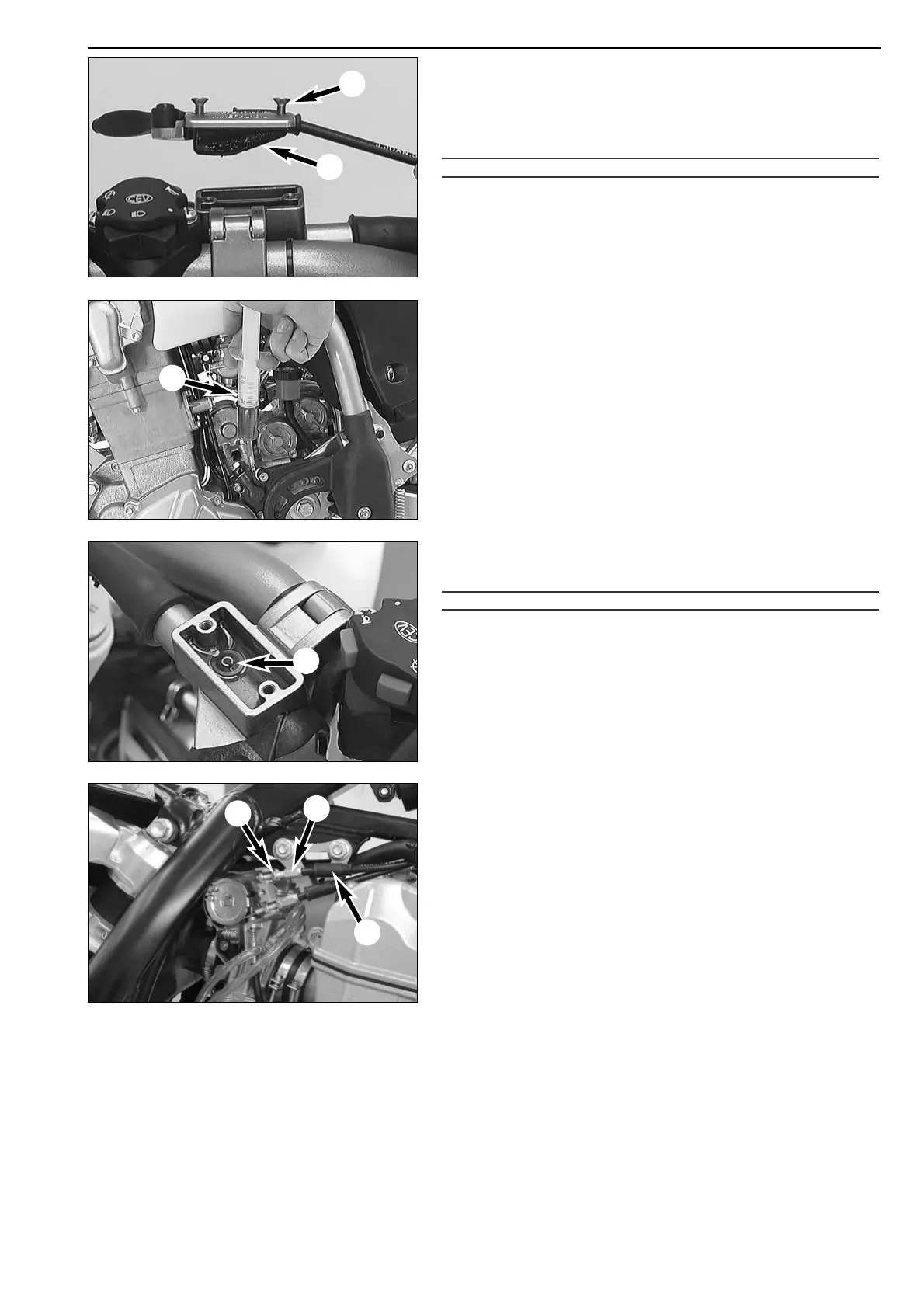

Checking the oil level of the hydraulic clutch
To check the oil level in the master cylinder of the clutch remove the
cover. For this purpose, remove bolts
1 and cover together with the
rubber boot
2. The oil level in the horizontal-standing master cylinder
should be 4 mm (0,157 in) below the upper edge. If necessary add
SAE 10 biodegradable hydraulic oil (Motorex Kupplungs-Fluid 75).
! CAUTION !
O
NLY USE
SAE 10 BIODEGRADABLE HYDRAULIC OIL (MOTOREX KUPPLUNGS-
F
LUID 75) TO REFILL THE MASTER CYLINDER. NEVER USE BRAKE FLUID!
Bleeding of the hydraulic clutch
– For bleeding, the cover of the master cylinder of the clutch needs to
be removed. For this purpose, remove screws
1 and take off cover
together with rubber bellows
2.
– At the slave cylinder of the clutch, remove the bleeder nipple. At its
place, mount the bleeder syringe
3 which is filled with
biodegradable hydraulic oil (Motorex Kupplungs-Fluid 75).
– Refill oil, until oil is discharged from the bore
A of the master
cylinder in a bubble-free state. Make sure that the oil does not
overflow.
! CAUTION !
H
AVING COMPLETED THE BLEEDING PROCEDURE
, YOU HAVE TO VERIFY THAT THE OIL
LEVEL IN THE MASTER CYLINDER IS CORRECT
. FOR FILLING OF THE MASTER
CYLINDER
,
USE SAE 10 BIODEGRADABLE HYDRAULIC OIL
(M
OTOREX KUPPLUNGS-
F
LUID
75) ONLY. NEVER USE BRAKE FLUID NOR MIX BIODEGRADABLE HYDRAULIC
OILS WITH MINERAL OILS
.
Adjusting the throttle cables
The throttle grip should always provide for a backlash of 3-5 mm.
Besides, with the engine running, the idling speed must not change if
you turn the handlebar all the way to the left or right.
To adjust the throttle cables, dismount the seat and the tank together
with spoilers. Slide back the protection cover
4. Loosen the counter
nut
5 and turn the adjusting screw 6 accordingly. Turning the
adjusting screw counterclockwise will reduce the backlash, turning the
adjusting screw clockwise will increase the backlash.
Tighten the counter nut and check whether the throttle grip can be
actuated smoothly. Mount tank and seat.
– After a short, careful test ride, check engine oil and coolant level
once more.
1
2
3
A
4
5
6

KTM 250 SX-F 2007 Specifications

General

Engine Type	Single cylinder, 4-stroke
Displacement	249.5 cc
Compression Ratio	12.8:1
Ignition	Kokusan digital CDI
Starter	Kickstarter
Transmission	5-speed
Lubrication	Pressure lubrication with 2 Eaton pumps
Primary Drive	24:73
Final Drive	13:50
Clutch	Wet multi-disc clutch, hydraulically operated
Bore x Stroke	76 mm x 54.8 mm
Fuel System	Keihin MX FCR 39 carburetor
