17 SERVICE WORK ON THE ENGINE
118

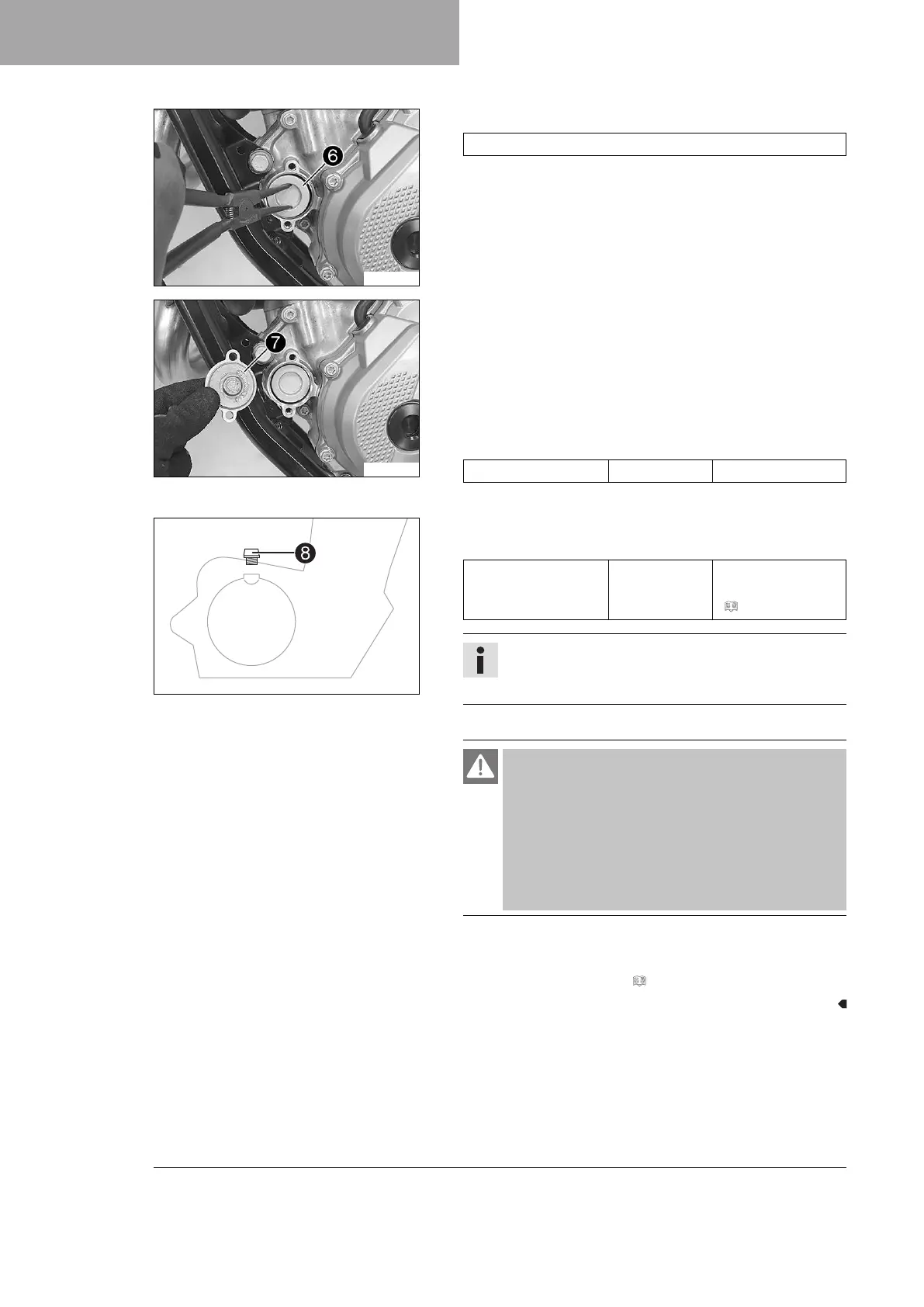

E01245-10
–
Pull oil filter
6
out of the oil filter housing.
Lock ring plier (51012011000)
–
Completely drain the engine oil.
– Thoroughly clean the parts and sealing surfaces.
E01246-10
– Lay the motorcycle on its side and fill the oil filter housing to
about ⅓ full with engine oil.
– Fill the oil filter with engine oil and position the oil filter in the
housing.
– Oil the O-ring of the oil filter cover and mount it together with
oil filter cover
7
.
– Mount and tighten screws.
Guideline
Screw, oil filter cover M6 10 Nm (7.4 lbf ft)
– Stand the motorcycle upright.
401955-12
–
Remove filler plug
8
from the clutch cover together with the
O-ring, and fill up with engine oil.
Engine oil 1.0 l (1.1 qt.) Engine oil
(SAE 10W/50)
( p. 138)
Info
Too little engine oil or poor-quality engine oil will result
in premature wear of the engine.
– Mount and tighten the filler plug together with the O-ring.
Danger
Danger of poisoning Exhaust gases are toxic and inhal-
ing them may result in unconsciousness and death.
– Always make sure there is sufficient ventilation
when running the engine.
– Use an effective exhaust extraction system when
starting or running the engine in an enclosed
space.
– Start the engine and check for tightness.
Finishing work
– Check the engine oil level. ( p. 116)
