KTM 250 SX-F User Manual

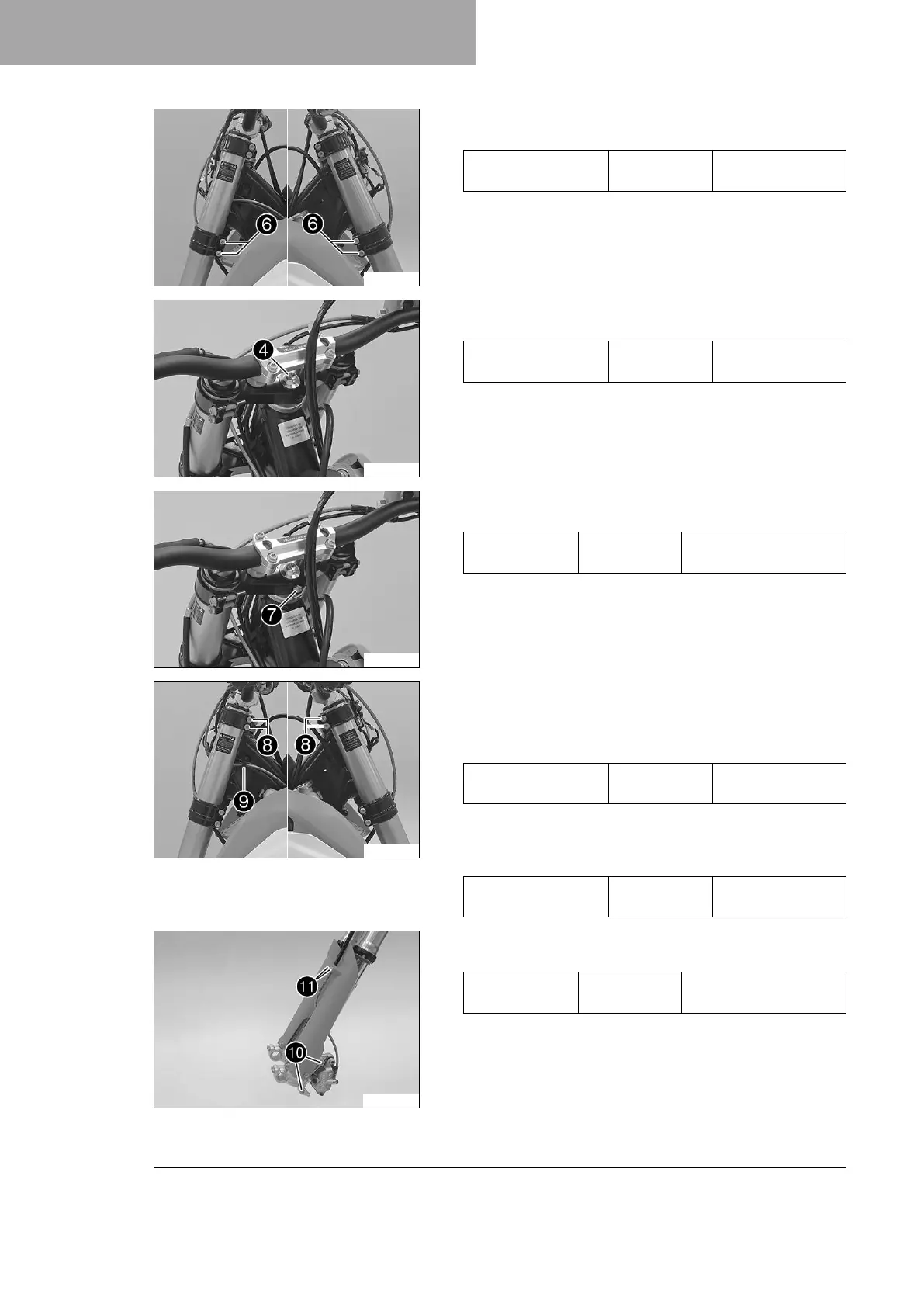

11 SERVICE WORK ON THE CHASSIS
56
F01572-10
–
Tighten screws
6
.
Guideline
Screw, bottom triple
clamp
M8 12 Nm (8.9 lbf ft)
F01563-10
–
Tighten screw
4
.
Guideline
Screw, top steering
head
M20x1.5 12 Nm (8.9 lbf ft)
F01563-11
–
Mount and tighten screw
7
.
Guideline
Screw, top
steering stem
M8 20 Nm (14.8 lbf ft)
Loctite
®
243™
F01573-10
– Using a plastic hammer, tap lightly on the upper triple clamp
to avoid stresses.
–
Tighten screws
8
.
Guideline
Screw, top triple
clamp
M8 17 Nm (12.5 lbf ft)
–
Secure the wiring harness with cable holder
9
on the left.
– Mount indicator lamp holder.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
K01014-12
–
Position the brake caliper. Mount and tighten screws
bk
.
Guideline
Screw, front
brake caliper
M8 25 Nm (18.4 lbf ft)
Loctite
®
243™
– Position the brake line and the clamp. Mount and tighten
screws
bl
.

KTM 250 SX-F Specifications

General

Displacement	249.9 cm³
Bore x Stroke	78 mm x 52.3 mm
Starter	Electric starter
Transmission	5-speed
Cooling	Liquid cooled
Front Suspension	WP XACT-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Front Brake	Disc brake
Rear Brake	Disc brake
Ground Clearance	370 mm
Compression Ratio	14.4:1
Engine Type	Single Cylinder, 4-Stroke
Fuel System	Keihin EFI, 44mm Throttle Body
Frame	Central double-cradle type 25CrMo4 steel
Fuel Tank Capacity	7.2 liters
