3-2
Repair manual KTM 250 -F Art.-No. 3.206.052-E

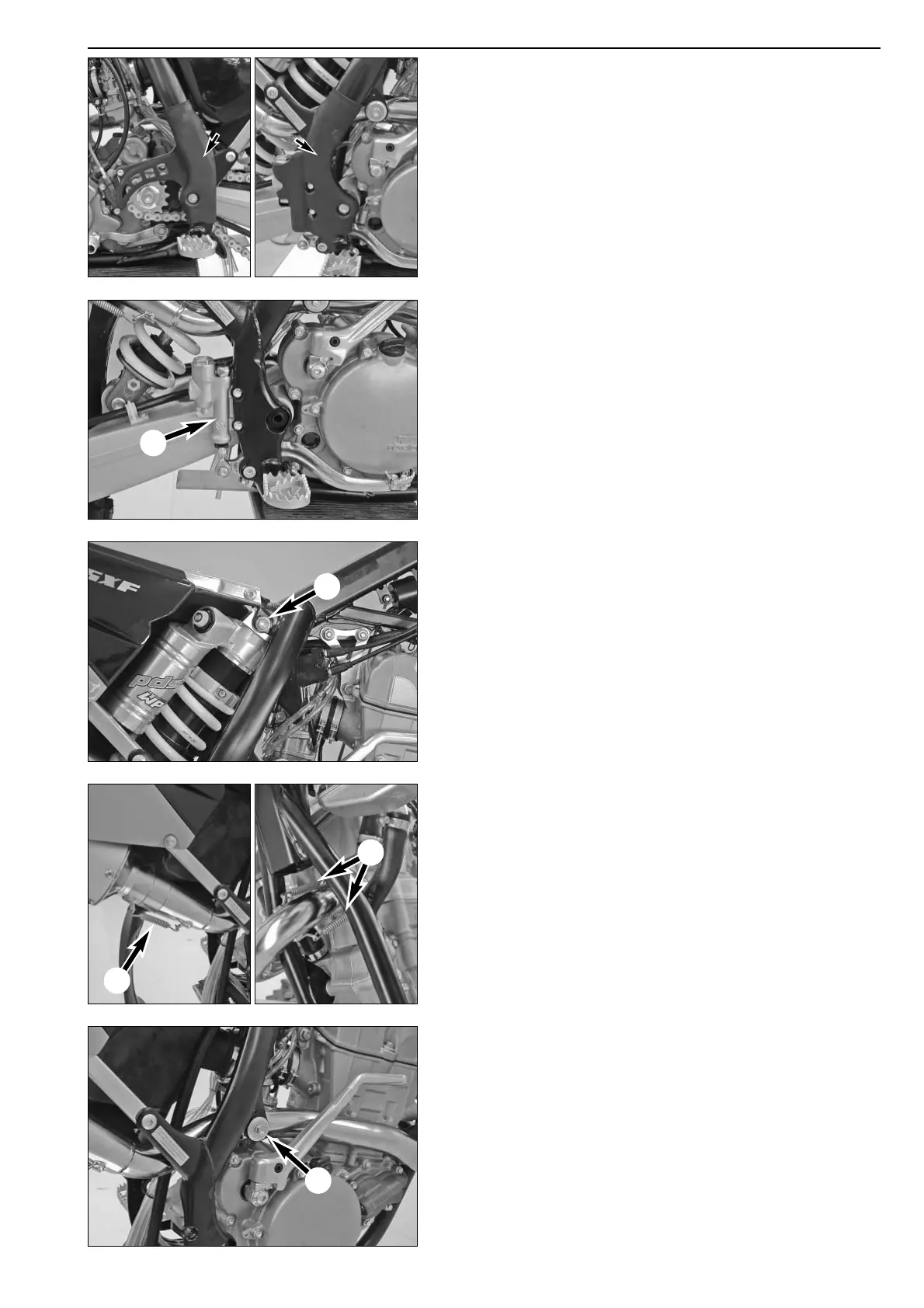

Dismounting the engine
– Thoroughly clean the motorcycle and jack up on a suitable assembly
stand. Make sure it cannot tip over.
– Remove the seat and tank with the spoiler.
– Remove the frame protector on both sides.
NOTE: you do not need to take the screws on the outside of the swing
arm pivot all the way out. Just loosen and pull them out with the
bushing.
– Open the chain and remove.
– Dismount the foot brake cylinder
1; you do not need to loosen the
line to the rear wheel brake.
– Detach the return spring on the foot brake lever.
– Remove the upper shock absorber screw
2.
– Loosen the nut on the swing arm pivot, knock out the swing arm
pivot with a suitable driver and completely remove the swing arm,
shock absorber and rear wheel from the motorcycle.
– Detach the exhaust springs
3 on the cylinder head and between the
manifold pipe and main silencer with a suitable tool.
– Remove the fixing screw
4 on the manifold pipes together with the
washer and rubber sleeve.
1
2
3
3
4
