12 BRAKE SYSTEM
84
F03694-10

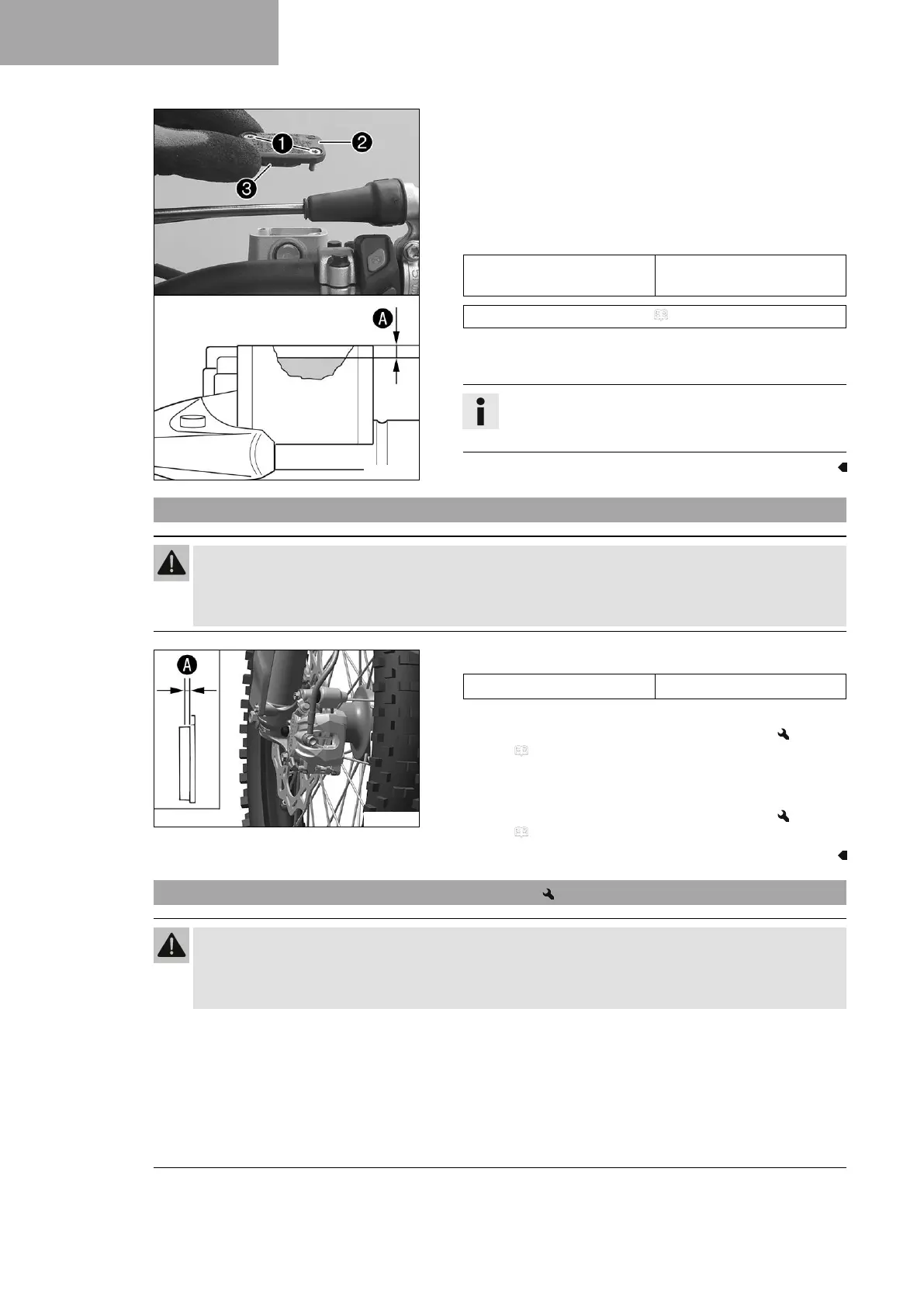

Main work
– Move the brake fluid reservoir mounted on the handlebar to a
horizontal position.
–
Remove screws
1
.
–
Take off cover
2
with membrane
3
.
–
Add brake fluid to level
A
.
Guideline
Level
A
(brake fluid level
below reservoir rim)
5 mm (0.2 in)
Brake fluid DOT 4 / DOT 5.1 ( p. 139)
–
Position cover
2
with membrane
3
. Mount and tighten
screws
1
.
Info
Use water to immediately clean up any brake fluid that
has overflowed or spilled.
12.6 Checking the front brake linings
Warning
Danger of accidents Worn-out brake linings reduce the braking effect.
– Ensure that worn-out brake linings are replaced immediately. (Your authorized KTM workshop will be
glad to help.)
S05375-10
–
Check the brake linings for minimum thickness
A
.
Minimum thickness
A
≥ 1 mm (≥ 0.04 in)
» If the minimum thickness is less than specified:
– Change the brake linings of the front brake.
( p. 84)
– Check the brake linings for damage and cracking.
» If damage or wear is encountered:
– Change the brake linings of the front brake.
( p. 84)
12.7 Changing the brake linings of the front brake
Warning
Danger of accidents Incorrect servicing will cause the brake system to fail.
– Ensure that service work and repairs are performed professionally. (Your authorized KTM workshop
will be glad to help.)
