KTM 65 SX User Manual

11 SERVICE WORK ON THE CHASSIS 47
602689-10

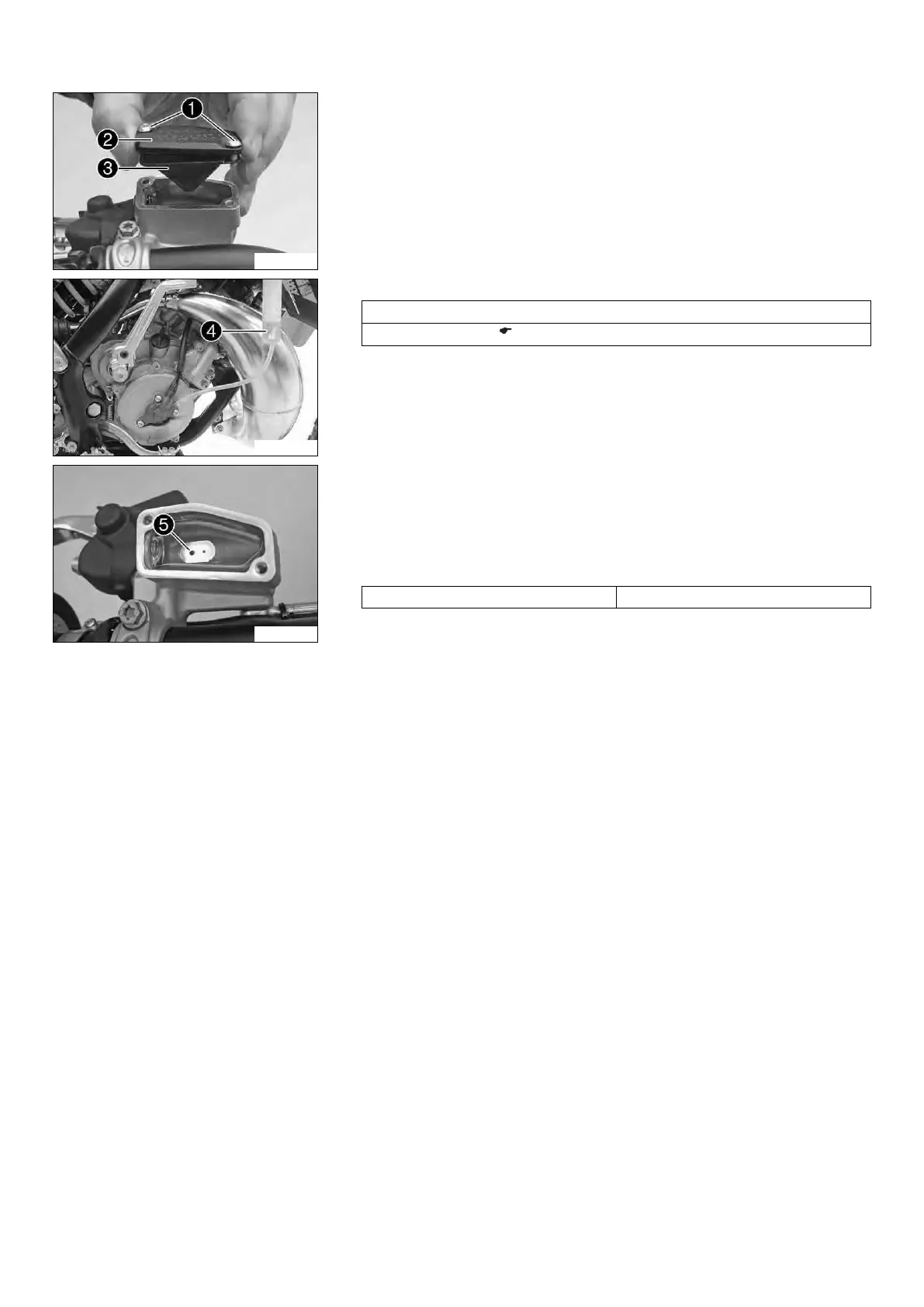

– Move the clutch fluid reservoir mounted on the handlebar to a horizontal position.
– Remove screws 1.
– Remove cover 2 with diaphragm 3.
300670-10
– Fill bleeding syringe 4 with the appropriate hydraulic fluid.
Bleed syringe (50329050000)
Hydraulic fluid (15) ( p. 82)
– On the slave cylinder, remove the bleeder screw and mount bleeding syringe 4.
602690-10
– Inject the liquid into the system until it escapes from drill hole 5 of the master
cylinder without bubbles.
– To prevent overflow, drain fluid occasionally from the master cylinder reservoir.
– Remove the bleeding syringe. Mount and tighten screws bleeder screw.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level under top level of container 4 mm (0.16 in)
– Position the cover with the diaphragm. Mount and tighten the screws.

KTM 65 SX Specifications

General

Engine Type	1-cylinder, 2-stroke engine
Displacement	64.9 cm³
Bore x Stroke	45 mm x 40.8 mm
Starter	Kickstarter
Transmission	6-speed
Cooling	Liquid cooled
Rear Suspension	WP XACT Monoshock
Front Brake	Disc brake
Rear Brake	Disc brake
Front Brake Diameter	198 mm
Rear Brake Diameter	160 mm
Seat Height	750 mm
Tank Capacity	3.5 l
Weight (without fuel)	53 kg
Clutch	Wet multi-disc clutch, Formula hydraulics
Frame	Chromium-Molybdenum steel
Front Suspension	WP XACT USD, Ø 35 mm
Fuel System	Mikuni TMX 24 carburetor
