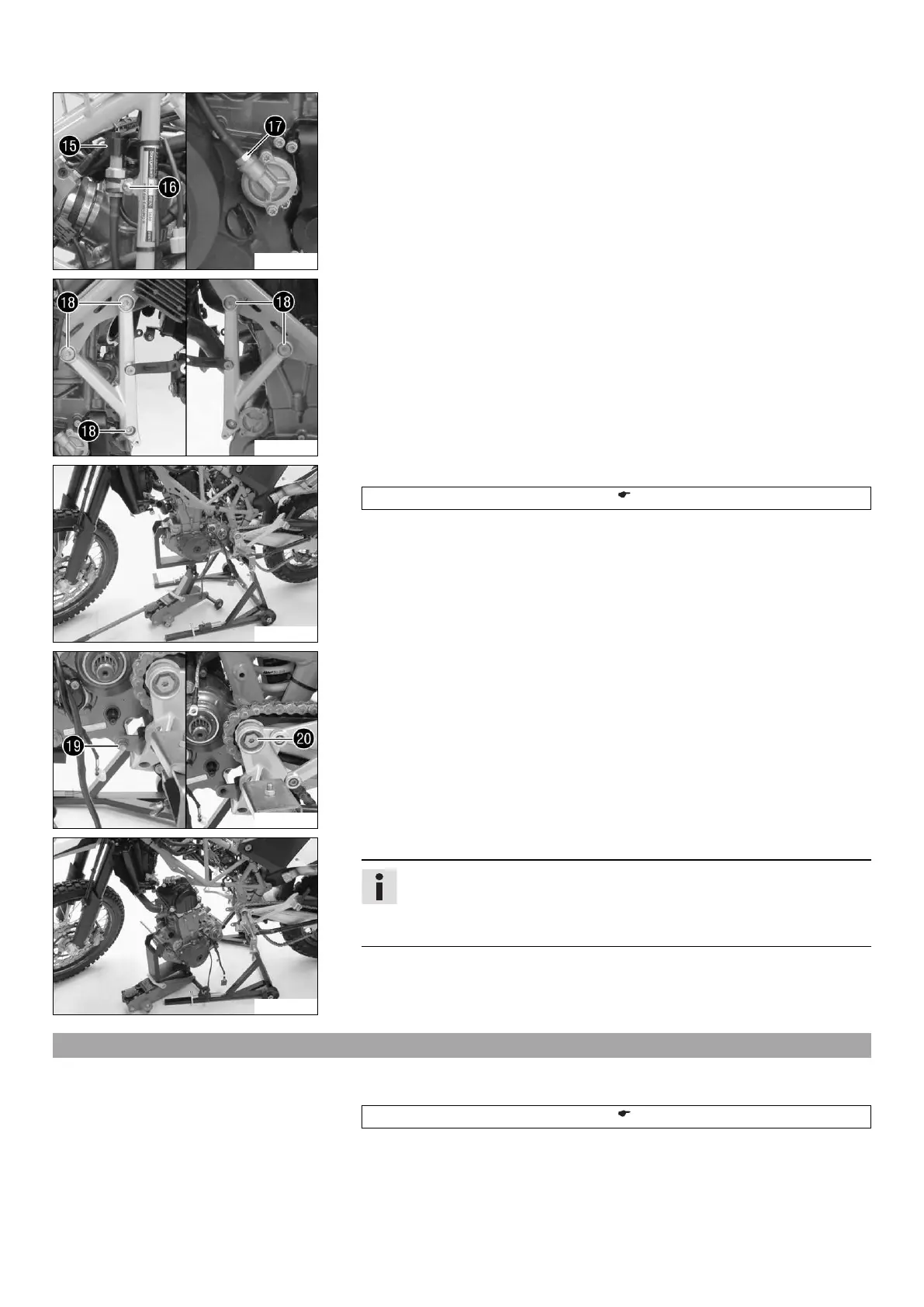

17 ENGINE 106
202078-10
– Detach connector bp of the oil pressure sensor. Remove screw bq.
– Release connection br. Remove the line with the oil pressure sensor.
202077-10
– Remove screws bs. Remove the engine bearer.
202079-10
– Position the floor jack under the engine and fix it using the special tool.
Floor jack attachment (75029055000) ( p. 221)
202080-10
– Remove nut bt of the lower engine bracket. Remove screw.
– Remove screw ck of the swingarm pivot.
– Remove the swingarm pivot.
202081-10
– Lower the engine.
Info
You should have an assistant for this step.
Make sure that the motorcycle is sufficiently secured against falling over.
Protect the frame and attachments from damage.
17.2 Installing the engine
Preparatory work
– Raise the engine onto the special tool and fix it.
Floor jack attachment (75029055000) ( p. 221)
