2 SETUP 3

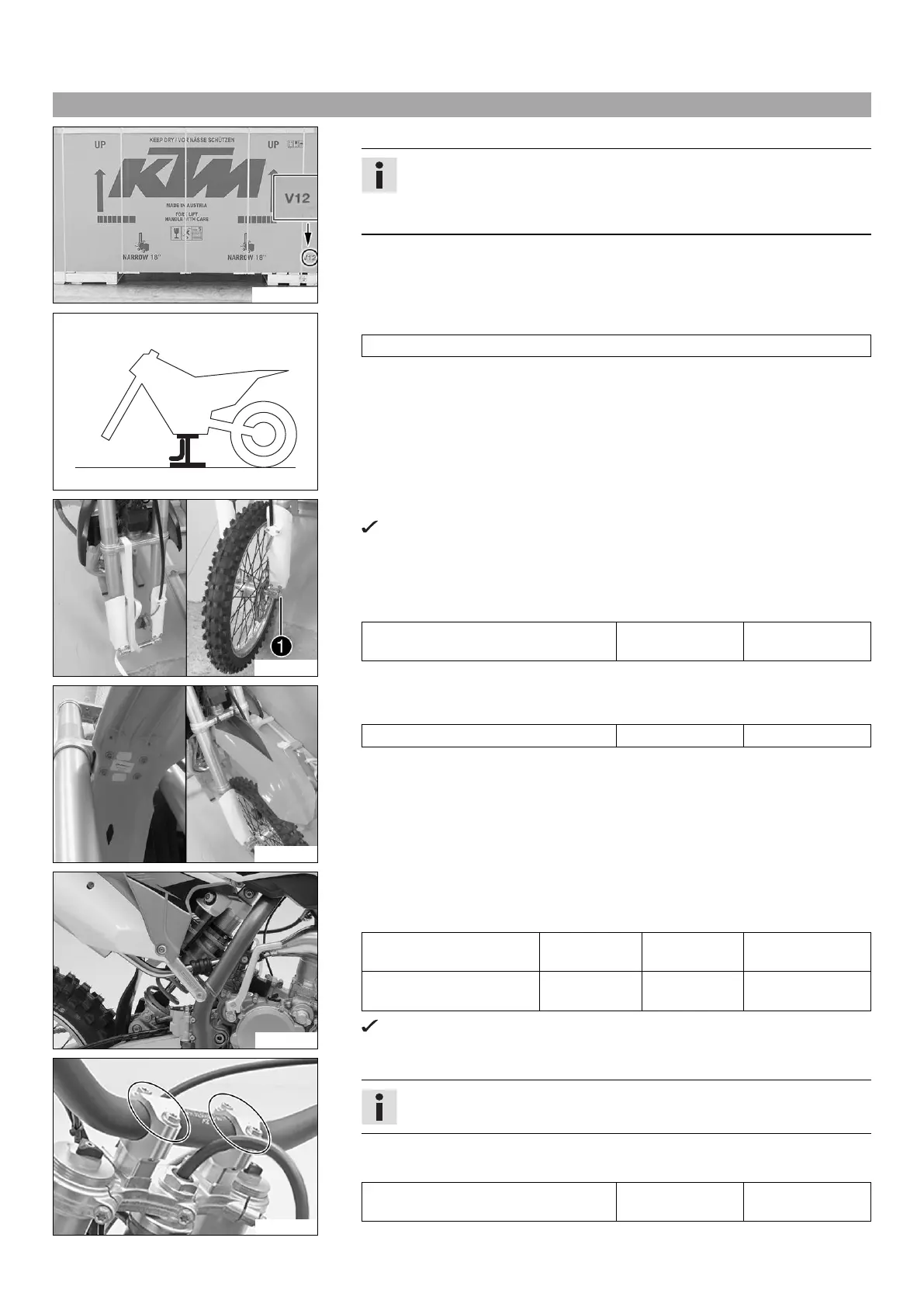

2.1 Unpacking and setting up the vehicle
M00075-11
– Remove the box and the plastic packaging.
Info
An assistant prevents the motorcycle from falling over.
To avoid damaging the motorcycle during the setup, leave the protective
film on the vehicle until you have finished.
– Remove the separate enclosure and unpack it. Check that the scope of supply is
complete on the basis of the enclosed packing list.
402050-01
– Have a lift stand available.
Lift stand (78929955100)
– Together with an assistant, take the vehicle off the palette.
– Position the vehicle on a lift stand.
– Check the vehicle for transport damage.
201937-10
– Remove the tension belt.
The fork rebounds.
–
Remove screw
and wheel spindle. Lift the front wheel into the fork, position it,
and insert the wheel spindle.
– Mount and tighten the screw of the wheel spindle.
Guideline
Screw, front wheel spindle M20x1.5 35 Nm
(25.8 lbf ft)
201938-10
– Position the fender. Mount and tighten the screws.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
L02337-01
– Unpack the shock absorber.
– Position the shock absorber. Mount and tighten the screws.
Guideline
Screw, top shock absorber M12 60 Nm
(44.3 lbf ft)
Loctite
®
2701™
Screw, bottom shock
absorber
M12 60 Nm
(44.3 lbf ft)
Loctite
®
2701™
The longer screw is used at the bottom.
V00031-10
– Position the handlebar.
Info
Make sure the cables and wiring are positioned correctly.
– Position the handlebar clamps. Mount and tighten the screws evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
