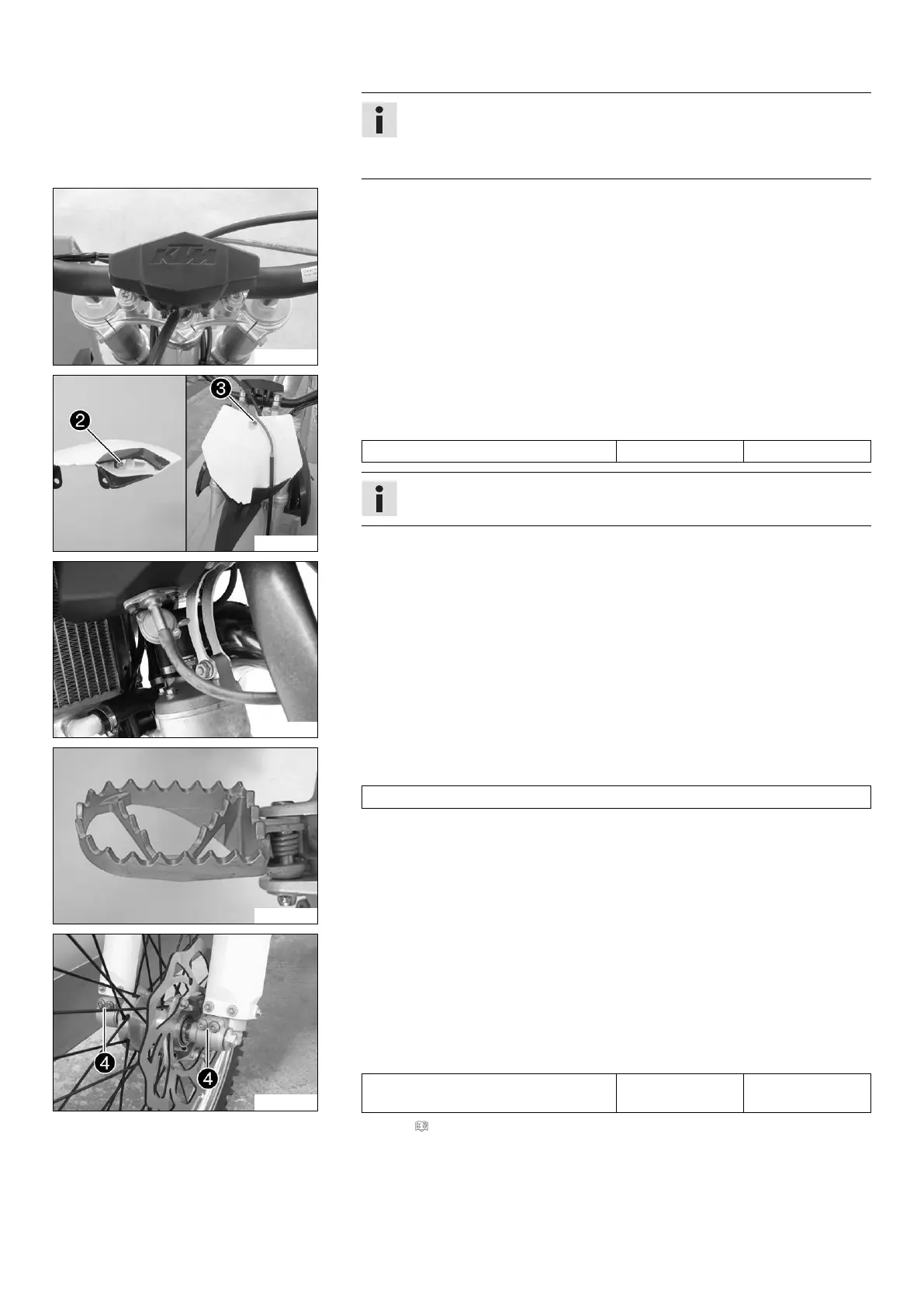

2 SETUP 4
Info
The markings on the handlebar should be at the center of the handlebar
clamps.
Keep the gap widths equal when tightening.
201941-10
– Position the handlebar cushion and secure with cable ties.
201942-10
–
Remove screw
with the guide from the start number plate.
–
Position the start number plate. Mount and tighten screw
.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
Info
Ensure the holding lugs engage in the fender.
–
Position the brake line and guide. Mount and tighten screw
.
L02365-01
– Connect the fuel line to the fuel tap.
800042-10
– Mount the footrests with the springs and pins. Secure the pins using the washers
and cotter pins.
Pliers for footrest spring (58429083000)
201944-10
– Take the vehicle off the work stand.
– Operate the hand brake lever several times until the brake linings are seated cor-
rectly against the brake disc.
– Activate the front brake and compress the fork a number of times forcefully to align
the fork legs.
–
Tighten screws
.
Guideline
Screw, fork stub M8 15 Nm
(11.1 lbf ft)
– Refuel. ( p. 7)
– Prepare the vehicle according to the specifications in the KTM Dealer.net for han-
dover to the customer.
