3 WORK
14

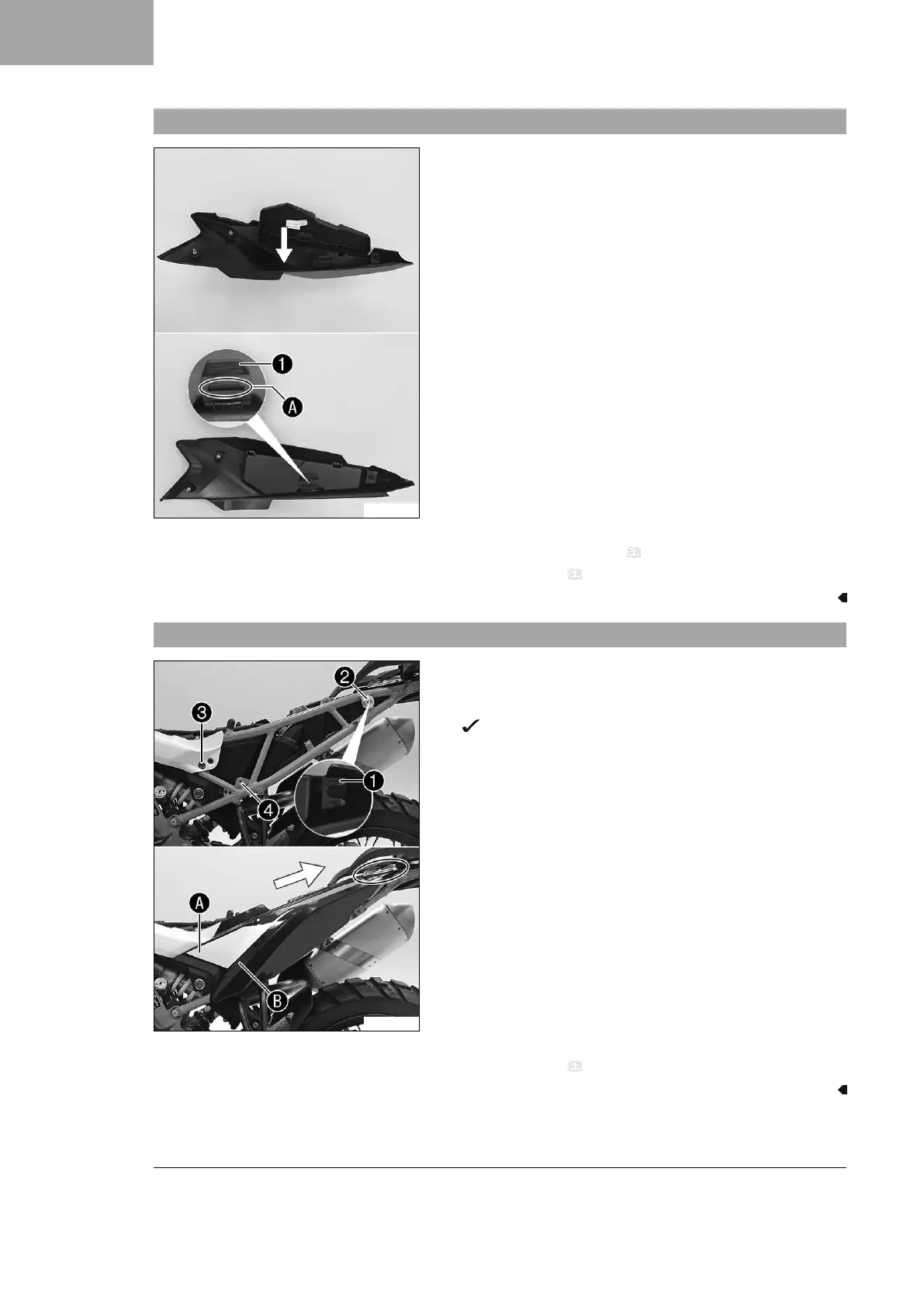

3.6 Closing the storage compartment on the left
F03286-10
Main work
– Close the storage compartment.
–
Raise elastic fastener
1
and hang up in area
A
.
Finishing work
– Install the left side cover. ( p. 14)
– Mount the seat. ( p. 13)
3.7 Installing the left side cover
F03294-10
Main work
–
Position the left side cover with holding lug
1
on bushing
2
and push backward.
The left side cover engages under the tail part.
–
Press the left side cover in area
A
into rubber bushing
3
and press into rubber bushing
B
in area
4
.
Finishing work
– Mount the seat. ( p. 13)
