3 WORK
18
A00683-10
–
Tighten screw
1
.
Guideline
Screw, main silencer
holder
M8 25 Nm (18.4 lbf ft)

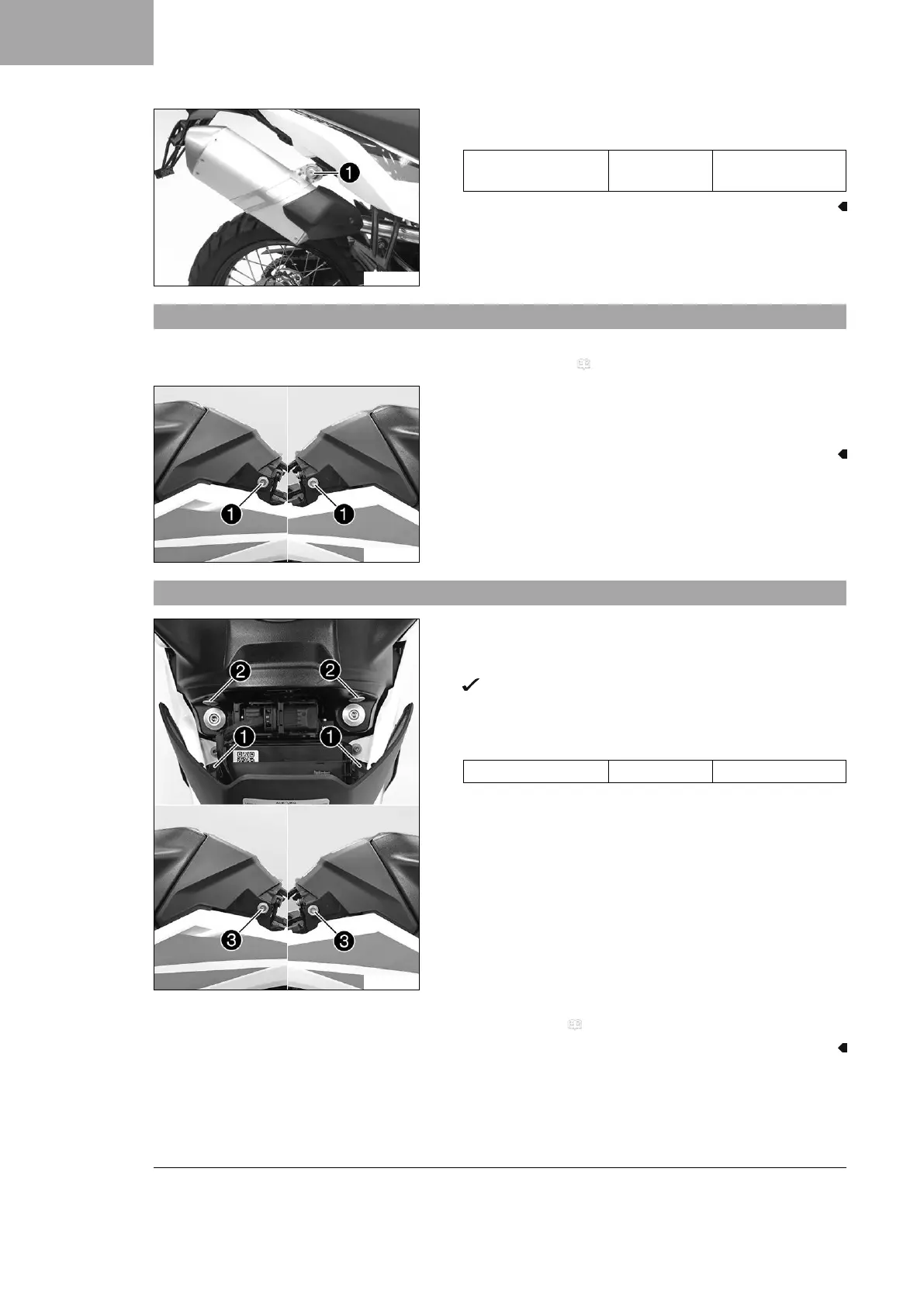

3.14 Removing the battery cover
Preparatory work
– Remove the seat. ( p. 12)
F02044-10
Main work
–
Remove screws
1
with the bushings.
– Remove the battery cover from above.
3.15 Installing the battery cover
F03297-10
Main work
–
Position the battery cover with holding lugs
1
on
bushings
2
and push downward.
The battery cover engages on the left and right under the
fuel tank spoiler.
–
Mount screws
3
with the bushings and tighten.
Guideline
Screw, seat fixing M6 6 Nm (4.4 lbf ft)
Finishing work
– Mount the seat. ( p. 13)
