PERIODIC SERVICE16
ENGLISH
BReplacing the oil filter cartridge
To avoid personal injury:
A Be sure to stop the engine before changing the
oil filter cartridge.
A Allow engine to cool down sufficiently, oil can
be hot and cause burns.
1. Replace the oil filter cartridge. Oil filter cartridge
should be replaced, as following opreration hours.
* 90mm(3.54in.) oil pan depth is optional.
2. Remove the old oil filter cartridge with a filter wrench.
3. Apply a film of oil to the gasket for the new cartridge.
4. Screw in the cartridge by hand. When the gasket
contacts the seal surface, tighten the cartridge enough
by hand. Because, if you tighten the cartridge with a
wrench, it will be tightened too much.
5. After the new cartridge has been replaced, the engine
oil level normally decreases a little. Thus, run the
engine for a while and check for oil leaks through the
seal before checking the engine oil level. Add oil if
necessary.
A Wipe off any oil sticking to the machine completely.
Models
Oil pan depth
124 mm (4.88in.) *90 mm (3.54in.)
D1503-M-E
D1703-M-E
D1803-M-E
V2003-M-E
V2203-M-E
V2003-M-T-E
V2403-M-E
200 Hrs 150 Hrs
Initial 50 Hrs

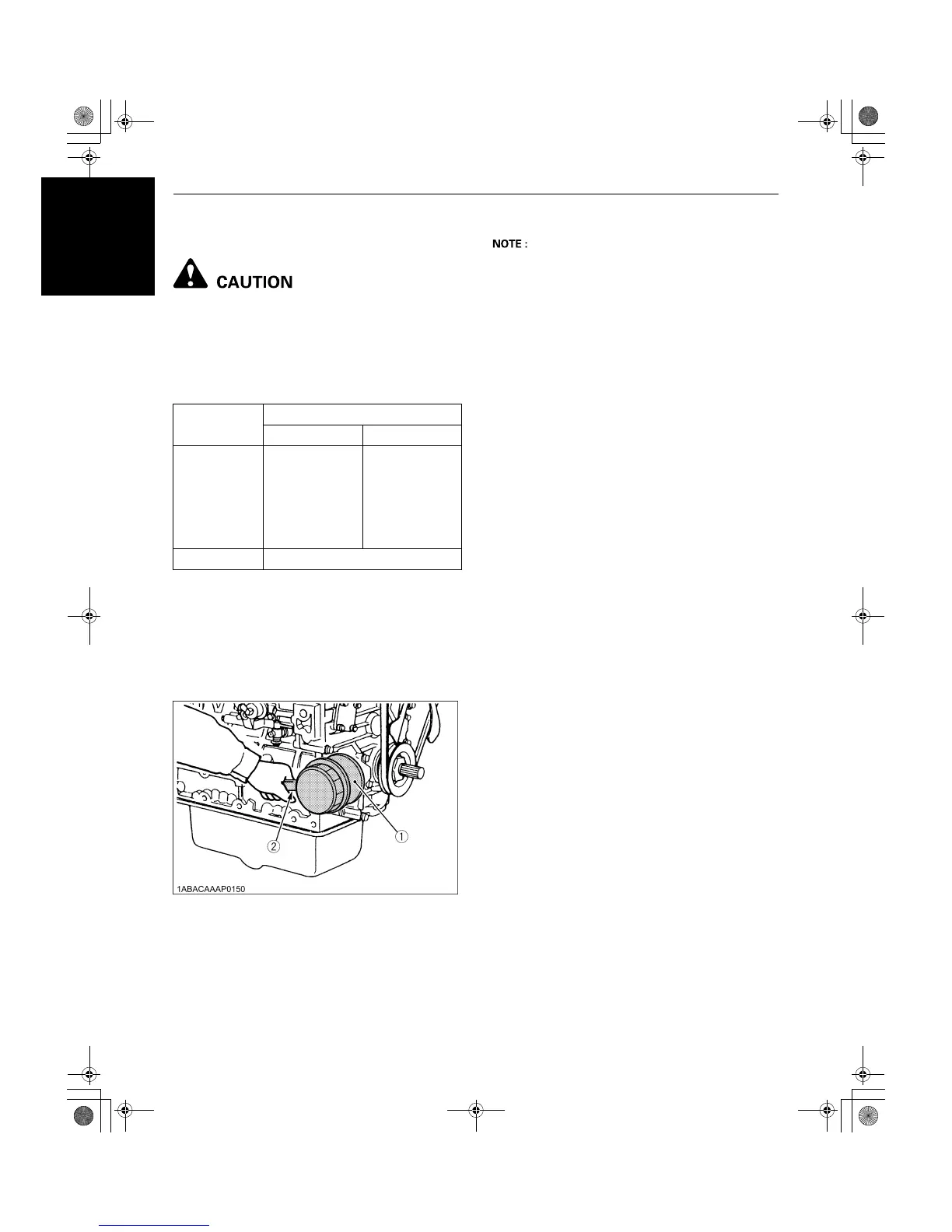

(1) Oil filter cartridge
(2) Remove with a filter wrench
(Tighten with your hand)
