EASY CHECKER

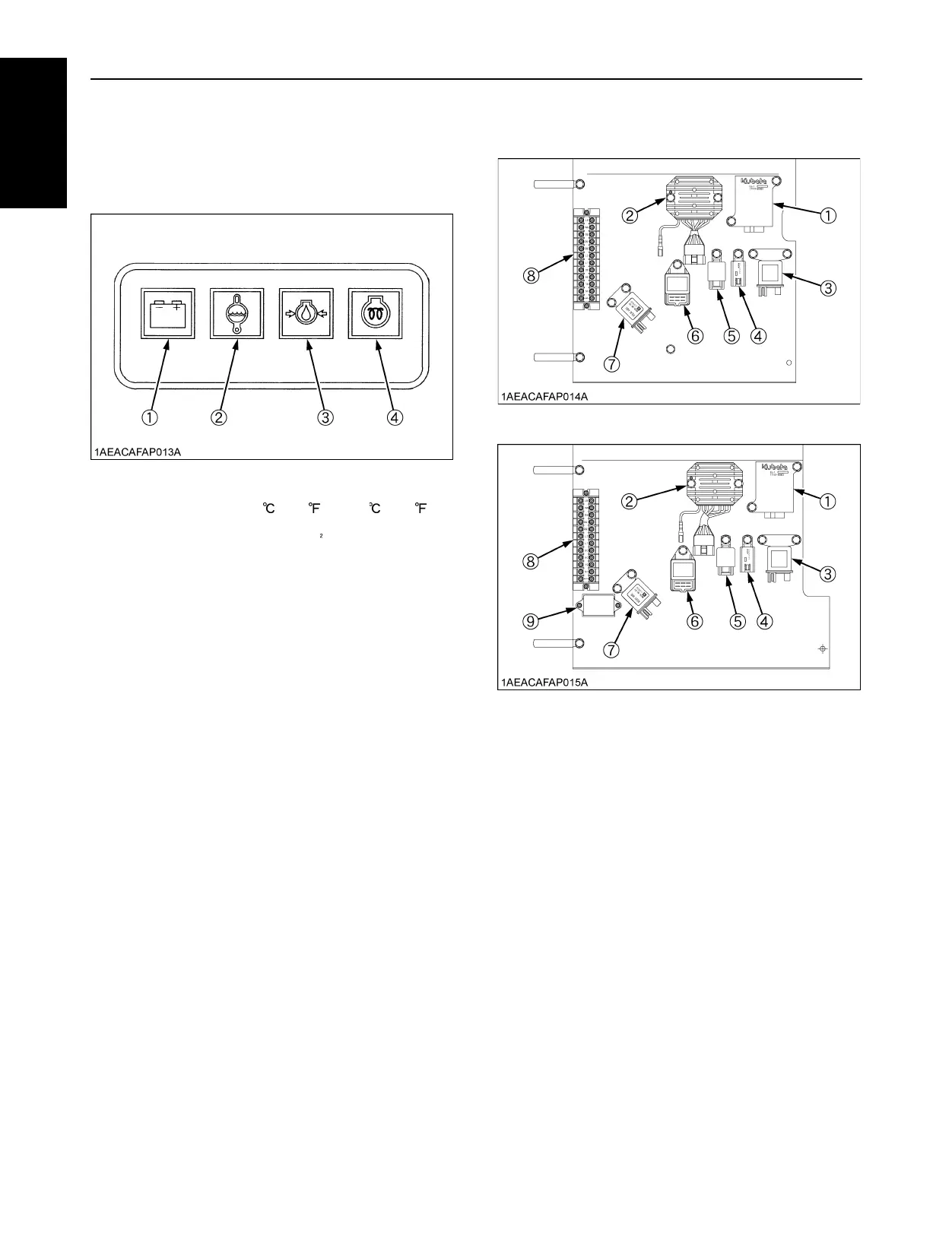

When an abnormal condition occurs with a part monitored
by the easy checker while the engine is running, a lamp
flashes to warn the operator of the impending trouble.
CONTROL BOX
[GL7000]
[GL11000]
(1) Charge warning lamp
(2) Water temperature-overheat warning lamp, flashes on when
cooling water rises to 112 (234 ) to 118 (244 ).
(3) Engine oil pressure drop warning lamp, flashes on below
68.7 to 127.5 kPa (0.7 to 1.3 kgf/cm ) oil pressure.
(4) Glow timer lamp
(1) Emergency unit
(2) Regulator
(3) Glow relay
(4) Relay A
(5) Relay B
(6) Glow lamp timer
(7) Starter relay
(8) Exterior connection terminal taps
(9) Separate excitation unit
