ASSEMBLY
OM 0297SB-AU
20

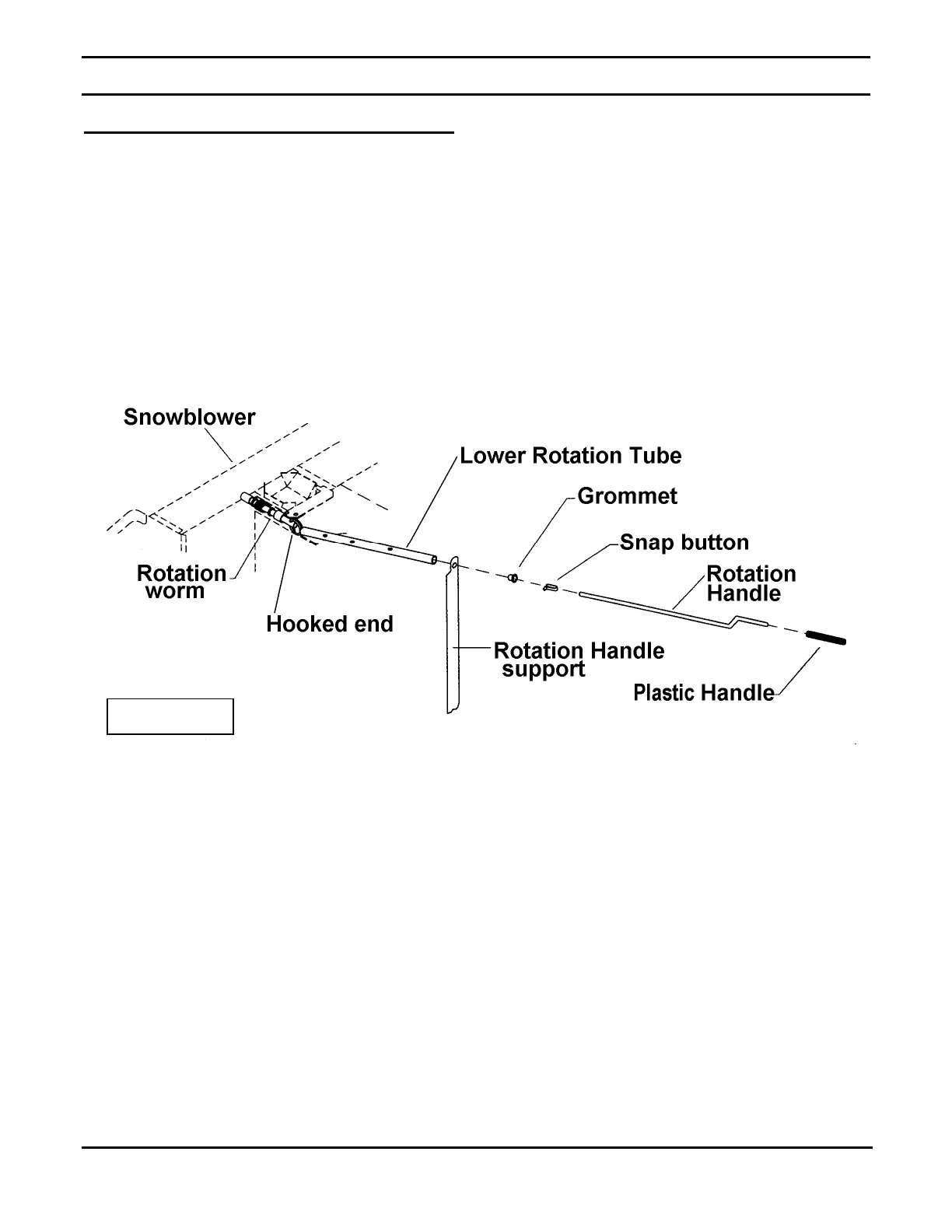

ROTATION HANDLE INSTALLATION (Figure 15)
1. Insert the plastic grommet in the upper hole
of the rotation handle support.
2. Install the plastic handle on the rotation
handle.
3. Insert the rotation tube hooked end into the
hole in the rotation worm shaft.
4. Insert the handle in the grommet and in the
lower rotation tube. Lock in place with the
snap button.
Figure 15
