3-S5
ZD18(F) · ZD21(F) · ZD28(F), WSM

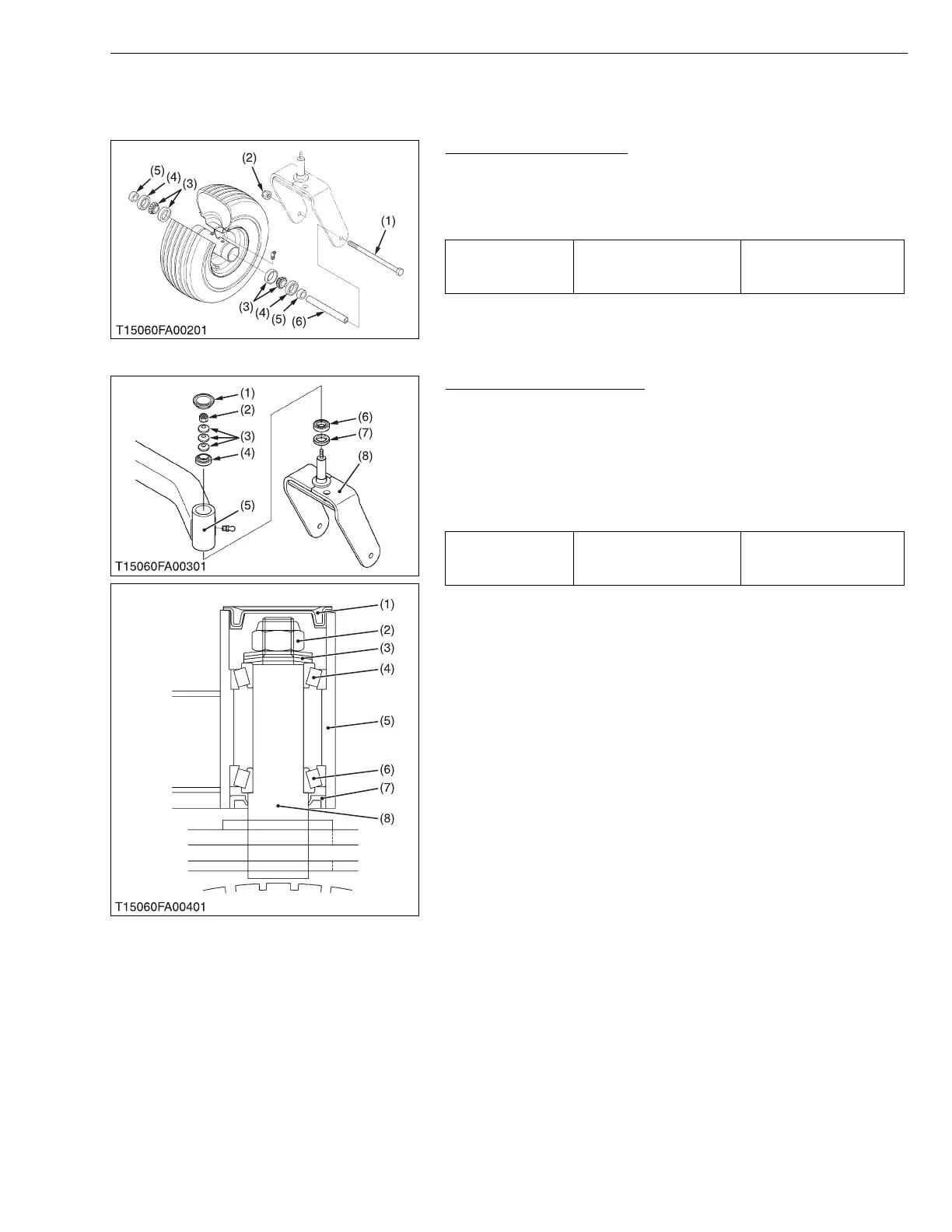

FRONT AXLE
[2] DISASSEMBLING AND ASSEMBLING
(1) Separating Front Wheel and Wheel Bracket
Remove the Front Wheel
1. Inspect all parts for wear or damage. Replace the parts as
needed.
(When reassembling)
• Apply grease to grease fittings. (See page G-7.)
W1011397
Remove the Wheel Bracket
1. Remove the cap (1).
2. Remove the locking nut (2) and wheel bracket (8).
3. Inspect all parts for wear or damage. Replace the parts as
needed.
(When reassembling)
• Do not mistake the direction when reassembling the plate spring
(3), taper roller bearing (4), (6) and oil seal (7).
W1011557
Tightening torque
Front wheel mounting bolt
and locking nut
20 to 25 N·m
2.04 to 2.55 kgf·m
14.75 to 18.44 ft-lbs
(1) Bolt
(2) Locking Nut
(3) Taper Roller Bearing
(4) Oil Seal
(5) Spacer
(6) Sleeve
Tightening torque
Locking nut tightening
torque
45 to 55 N·m
4.59 to 5.61 kgf·m
33.19 to 40.57 ft-lbs
(1) Cap
(2) Locking Nut
(3) Plate Spring
(4) Taper Roller Bearing
(5) Front Axle
(6) Taper Roller Bearing
(7) Oil Seal
(8) Bracket
KiSC issued 04, 2009 A
