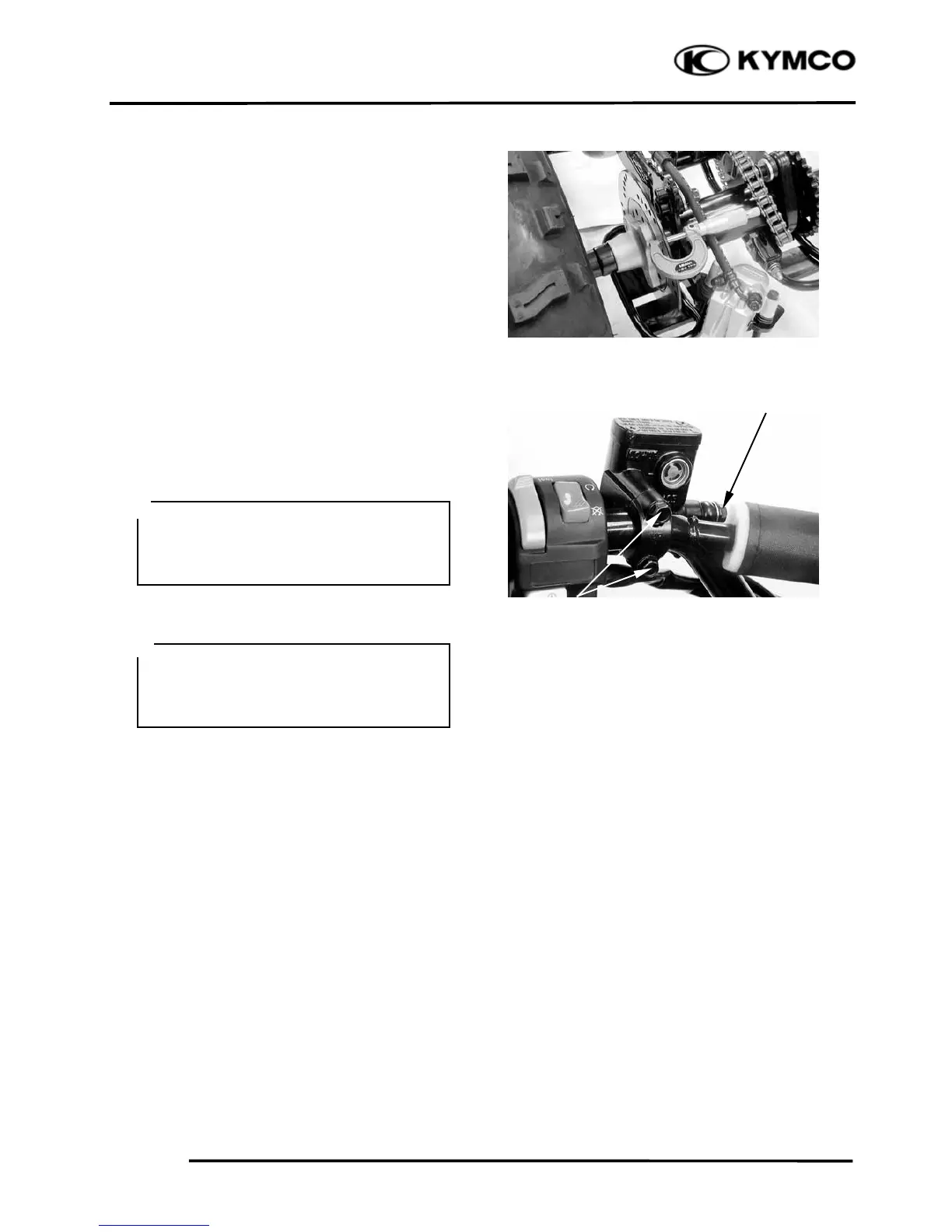

13. REAR WHEEL/SWING ARM/
HYDRAULIC BRAKE
13-17
BRAKE DISK
Measure the brake disk thickness.
Service Limit: 3 mm (0.12 in)
Measure the brake disk run out.
Service Limit: 0.3 mm (0.12 in)
BRAKE MASTER CYLINDER
REMOVAL
Drain the brake fluid from the hydraulic
brake system.
Remove the two master cylinder holder
bolts and remove the master cylinder.
Do not splash brake fluid onto any
rubber, plastic and coated parts. When
working with brake fluid, use shop
towels to cover these parts.
＊
When removing the brake fluid tube bolt,
be sure to place towels under the tube
and plug the tube end to avoid brake
fluid leakage and contamination.
＊
Fluid Tube Bol
