Kyocera ECOSYS M2530dn Servlce Manual

2PK/2PL/2PM/2PN-5
1-6-2
Emergency-UPDATE
If Safe Update is processed to the end, the firmware update is complete. In case the message below is indi-
cated, update the firmware after recovery with the steps below.
Note that this is unoperable when the device is operating normally.
Preparation
The USB memory must be formatted in FAT or FAT32 in advance.
Extract the main firmware to download from the file.
Rename the file which was extracted from the archive.
[DL_CTRL.2PK] to [KM_EMRG.2PK] : 3 in 1 model
[DL_CTRL.2PL] to [KM_EMRG.2PL] : 4 in 1 model
Copy the all extracted files to the root of the USB memory.
Procedure
1. Turn the main power switch off.
2. Insert the USB memory which contains
the firmware into the USB memory slot.
3. Turn the main power switch on.
4. Rewriting of the PWB software will start
for restoration.
“Emergency Update” is displayed on
the LCD of the operation panel.
5. "Completed" will be displayed when
rewriting is successful.
* : "Failed" will be displayed when rewrit-
ing is failed.
6. Turn the main power switch off.
7. Wait for several seconds and then
remove the USB memory from the USB
memory slot.
8. Extract the firmware to download from
the archive and copy to the root of the
formatted USB memory.
NOTE: Deletes the "ES_SKIP.on" file
When it is contained directly under the
USB memory.

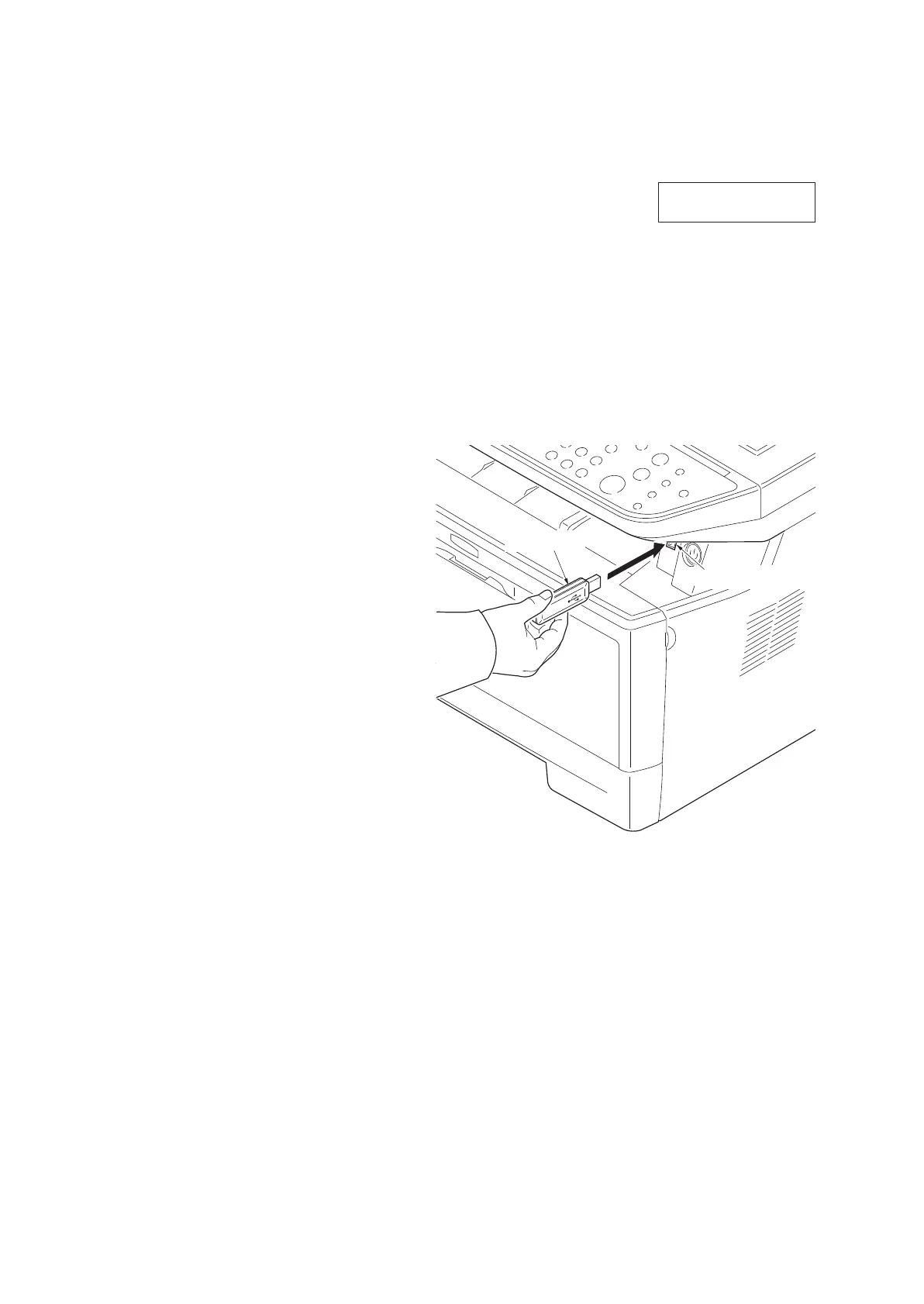

Figure 1-6-2
9. Insert the USB memory in which the
firmware was copied in the USB mem-
ory slot.
10. Perform steps 3 to 7 on the previous
page.
11. Turn the main power switch on.
12. Perform maintenance item U000 (Print
a maintenance report) to check that the
version of ROM U019 has been
upgraded.
USB memory
USB memory slot
FW-Update
Error FFFF

Kyocera ECOSYS M2530dn Specifications

General

Secure printing	Yes
Print technology	Laser
Maximum resolution	1800 x 600 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	7 s
Print speed (black, normal quality, A4/US Letter)	30 ppm
Copier resize	25 - 400 %
Maximum copy resolution	600 x 600 DPI
Maximum number of copies	999 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	6.9 s
Scan to	E-mail, FTP, SMB, USB
Scan drivers	TWAIN, WIA
Scanner type	ADF scanner
Grayscale levels	256
Maximum scan area	Legal (216 x 356) mm
Scan speed (black)	35 ppm
Scan speed (color)	14 ppm
Image formats supported	JPG, TIF
Document formats supported	PDF, XPS
Faxing	Mono faxing
Fax memory	256 pages
Modem speed	33.6 Kbit/s
Fax coding methods	JBIG, MH, MMR (Fax coding method), MR
Fax transmission speed	3 sec/page
Fax speed dialing (max numbers)	200
Digital sender	-
Printing colors	Black
Maximum duty cycle	20000 pages per month
Number of print cartridges	1
Page description languages	Epson LQ, IBM ProPrinter, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Processor model	465S
Processor family	PowerPC
Compatible memory cards	SD
Maximum internal memory	1536 MB
Sound power level (standby)	28.3 dB
Sound pressure level (copying)	50.9 dB
Sound pressure level (quiet mode)	49 dB
Paper input type	Cassette, Paper tray
Total input capacity	350 sheets
Total output capacity	150 sheets
Maximum input capacity	800 sheets
Total number of input trays	2
Maximum number of input trays	4
Multi-Purpose tray input capacity	50 sheets
Custom media width	70 - 216 mm
Maximum print size	216 x 356 mm
Custom media length	148 - 356 mm
Duplex media weight	60 - 105 g/m²
Media thickness (min)	0.11 mm
Paper tray media types	Envelopes, Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 220 g/m²
Auto Document Feeder (ADF) media weight	50 - 120 g/m²
Display	LCD
Product color	Black, White
Market positioning	Business
Display number of lines	5 lines
Wi-Fi	No
Cabling technology	10/100/1000Base-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Standard interfaces	Ethernet, USB 2.0
Optional connectivity	Wireless LAN
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.3 W
Power consumption (standby)	62 W
Power consumption (PowerSave)	3.7 W
Power consumption (average operating)	431 W
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Certification	TÜV/GS, CE
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	430 mm
Width	494 mm
Height	448 mm
