Kyocera ECOSYS M5526cdn User Manual

10-29
Troubleshooting > Adjustment/Maintenance

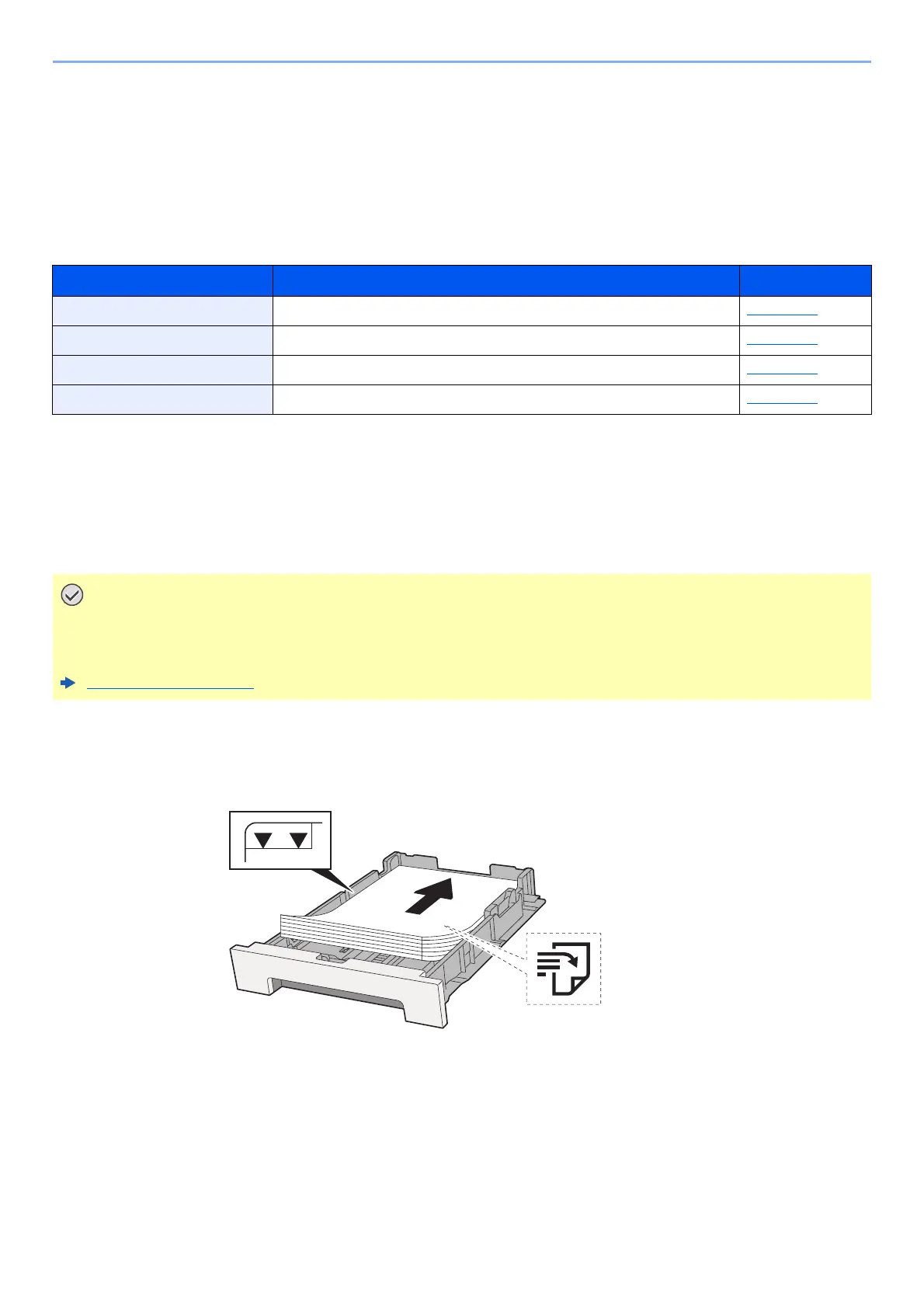

Adjustment/Maintenance
Overview of Adjustment/Maintenance
If there is an image problem and the message to run adjustment or maintenance menu appears, run
Adjustment/Maintenance in the system menu.
The table below lists the item you can Procedure.
Color Registration Procedure
When first installing the machine or moving it to a new location, color drift during printing may occur. Use this function to
correct the color position of each of cyan, magenta and yellow to resolve color drift.
Auto registration and manual registration are available for Color Registration. Color drift can be largely corrected through
auto registration. However, if it is not resolved or to perform more detailed settings, use the manual registration.
Auto Correction
1
Load paper.
Item Description Reference Page
Color Registration Procedure Correct the color position to resolve color drift. page 10-29
Drum Refresh Remove image blur and white dots from the printout. page 10-34
Calibration Adjust color drift or hue of printed image in the most appropriate color. page 10-34
Laser Scanner Cleaning Remove vertical white lines from the printout. page 10-34
IMPORTANT
Before performing color registration, be sure to perform Calibration. If color drift remains, perform color
registration. By performing color registration without performing Calibration, the color drift will be resolved
once, however, it may cause the serious color drift later.
Calibration (page 10-34)
