2P7/2R0/3PN

1-5-60

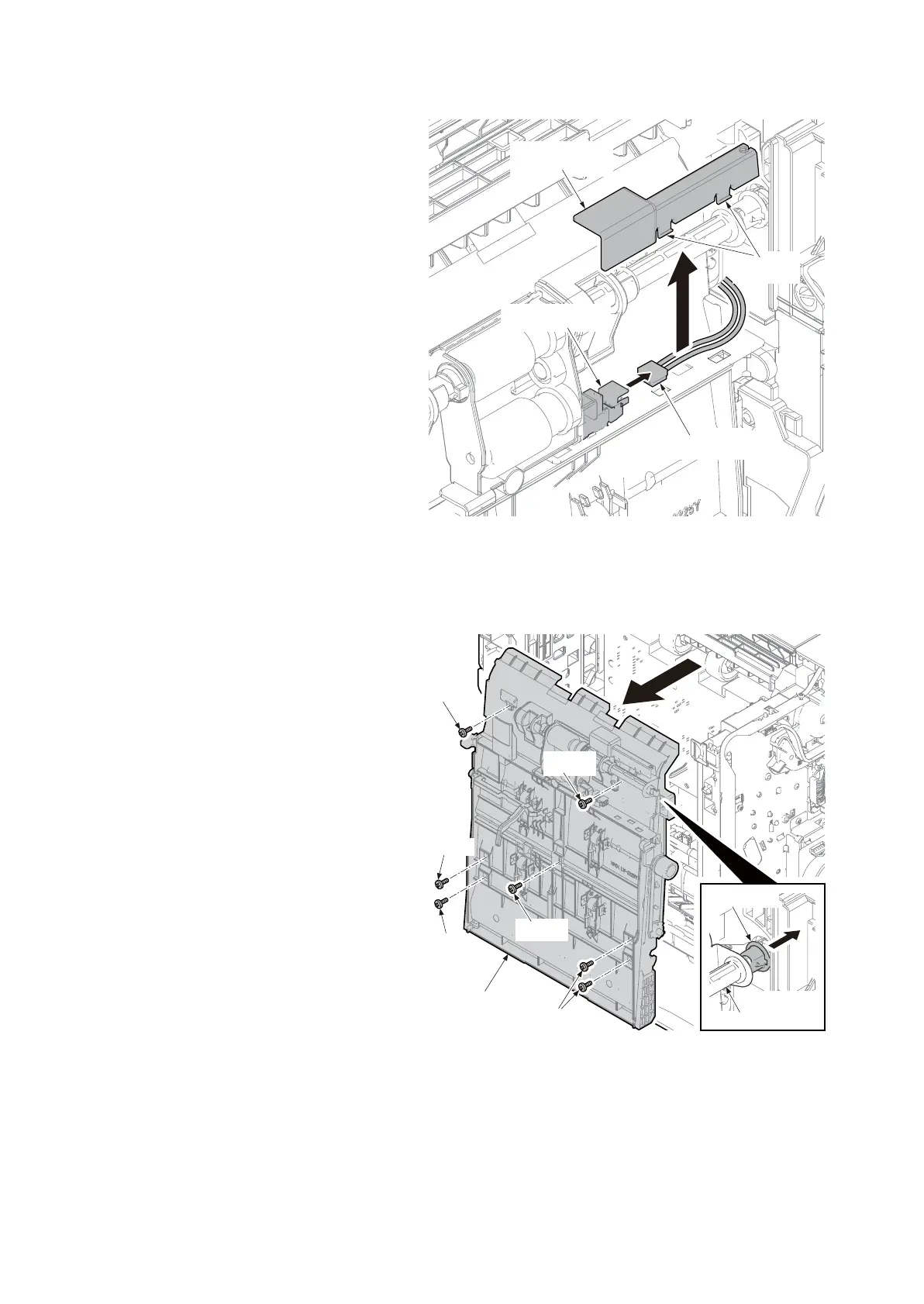

25. Release two hooks and then remove

the wire cover.

Remove the connector of lift sensor.

Figure 1-5-111

26. Remove seven screws.

27. Extract the feed roller axis by pushing

the joint part.

28. Remove the DU assembly to the front.

Figure 1-5-112

Lift sensor

Hooks

Connector

Wire cover

Screws

Screw

DU assembly

Screw

Paper feed

roller axis

Joint part

Service Manual1
