2P7/2R0/3PN
1-5-71
10. Remove the connectors of clutches and
solenoid.
11. Remove two screws and then remove
the paper feed driving motor unit.
12. Check or replace the paper feed driving
motor unit and refit all the removed
parts.

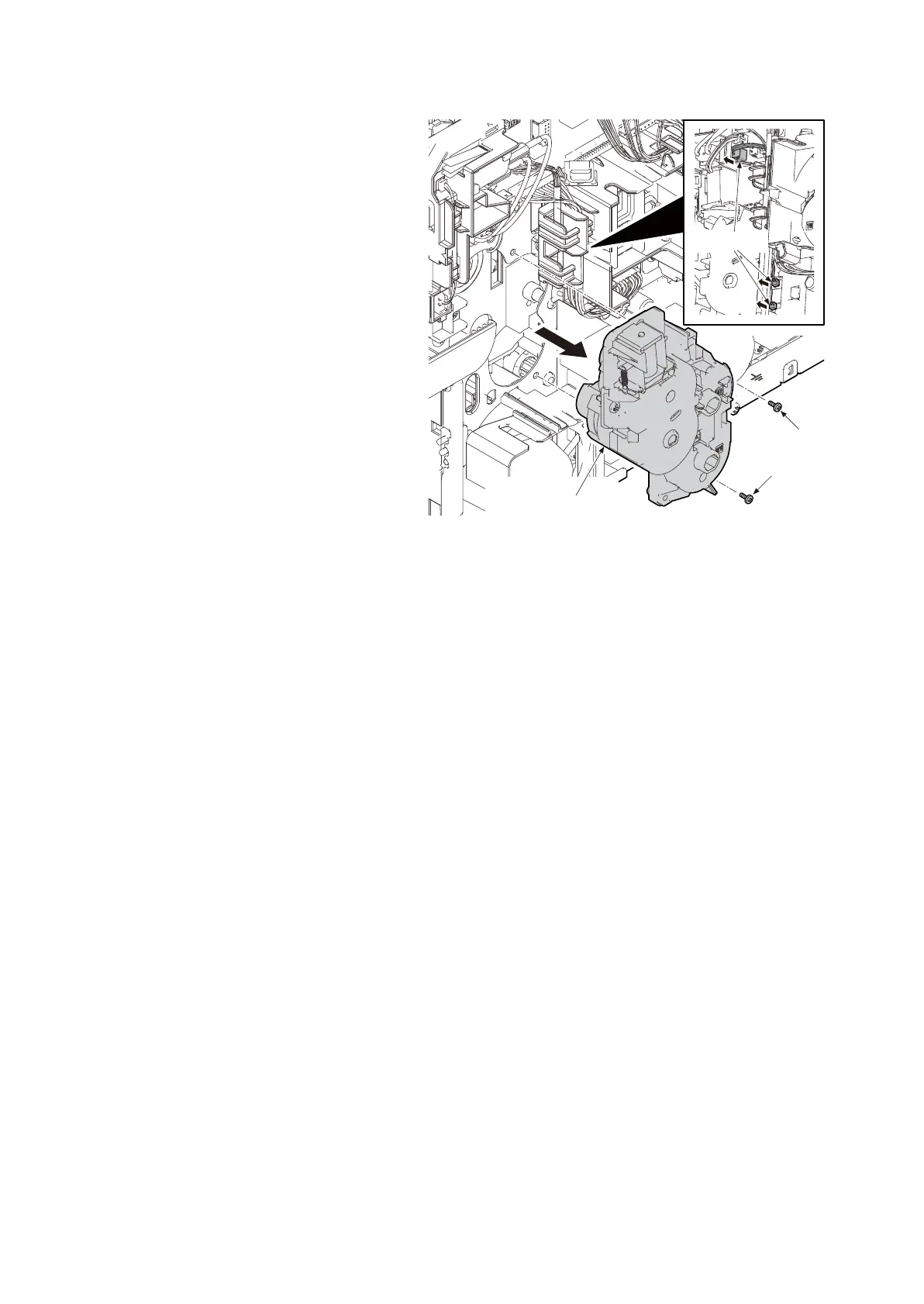

Figure 1-5-130
Paper feed
driving motor unit
Screw
Screw
Connectors
