27. Remove the connector and then
remove the wires from the hooks.
28. Remove the center fan motor assembly
upward.
29. Check or replace the center fan motor
and refit all the removed parts.

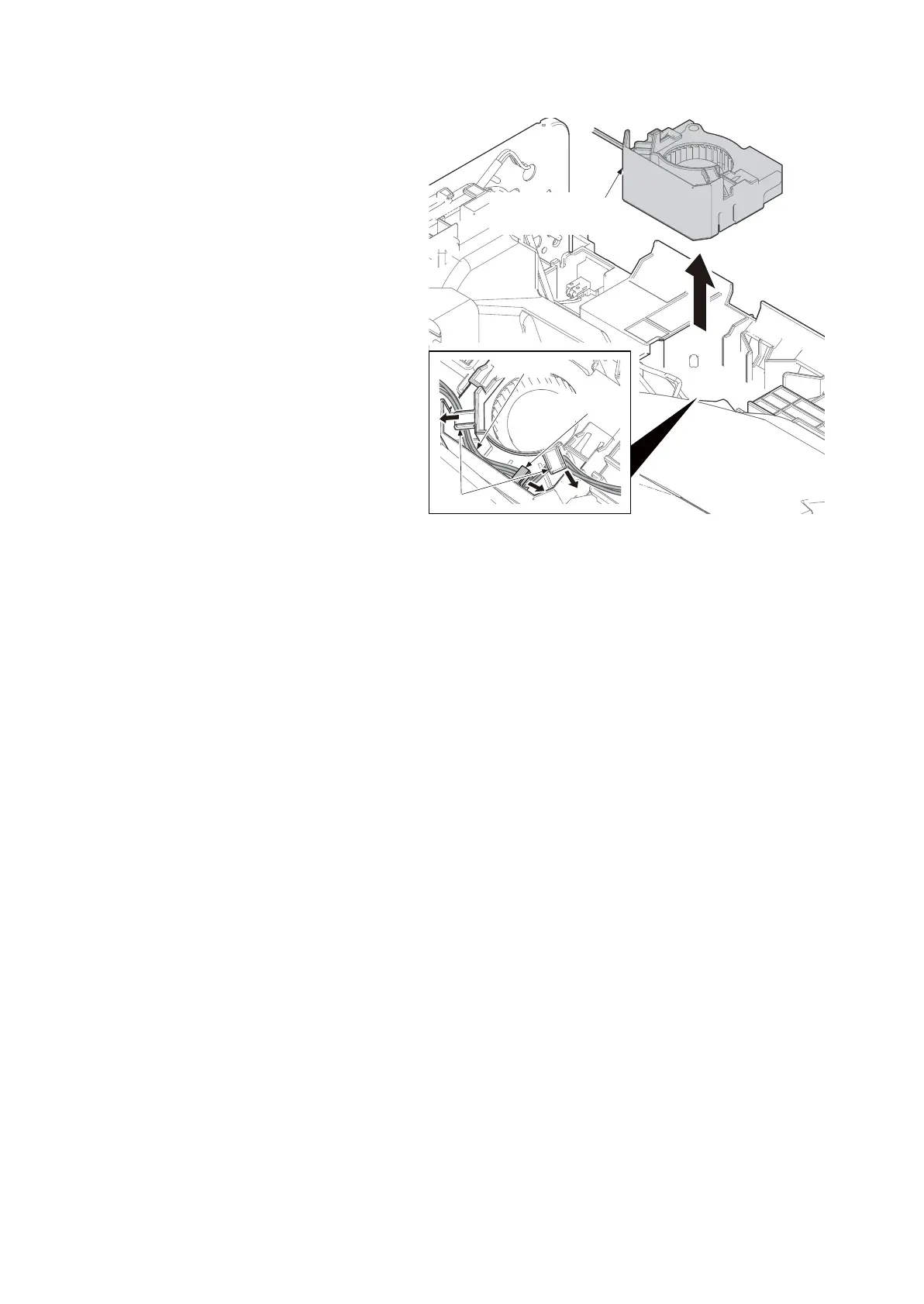

Figure 1-5-145
Connector
Center fan motor
assembly
Wires
Hooks
