Kyocera ECOSYS P4040dn Service Manual

2P7/2R0/3PN
1-6-1
1-6 Requirements on PWB Replacement
1-6-1 Upgrading the firmware
Follow the procedure to upgrade the firmware below.
Preparation
Extract the file that has the download firmware and put them in the USB Memory.
NOTE: To improve Firmware Upgrade speed, a separate SKIP file can be added to the USB Memory Stick
with the Firmware Upgrade package. The Skip file will allow ONLY the Firmware that has been
Upgraded to a New Version to load, skipping duplicate Firmware Levels.
Procedure
1. Turn ON the power switch and confirm
if the screen shows “Ready to print”
then, turn OFF the power switch.

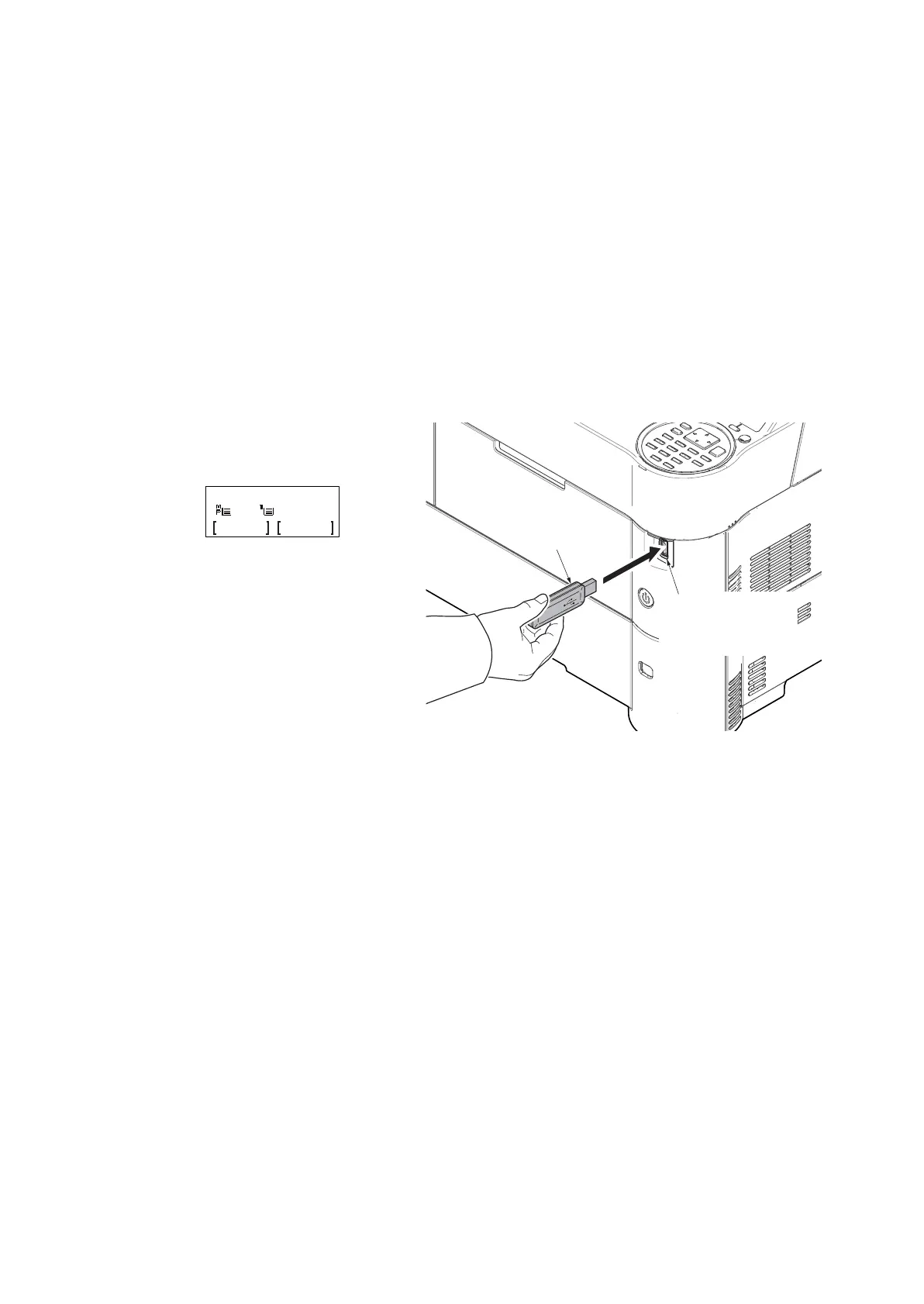

2. Insert USB memory that has the firm-
ware in the USB host interface slot.
3. Turn ON the power switch.
4. About 50 seconds later, “FW-Update”
will be displayed (this shows to start the
download).
5. Display the software that now upgrad-
ing.
CTRL → OPT → PF1 → PF2 →PF3 →
PF4 → ENGN
Figure 1-6-1
SAMPLE: =================
FW-Update [CTRL] The first line: Display that shows update object
■■■■■□□□□ The second line: The progress bar that shows update advance degree
=================
Caution:
Never turn off the power switch or remove the USB flash device during upgrading.
6. Display the completion of the upgrade.
(The 1st page) (2 page or subsequent ones)
================= =================
FW-Update [CTRL] 2/8
Completed 2P7_3F00.001.014
================= =================
7. ROM version is confirmed by the content of the display.
8. Unplug the power cable and remove the USB memory.
9. Connect the power cord and confirm if the screen shows “Ready to print” then, turn OFF the main
power switch.
USB memory
USB host
interface slot
* Main PWB (CTRL)
* Engine PWB (ENGN)
* PF main PWB (PF)
* Language data (OPT)
Status
Ready to print.
A4 A6
Toner

Kyocera ECOSYS P4040dn Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Duplex printing mode	Auto
Time to first page (black, normal)	7.5 s
Print speed (black, normal quality, A3)	22 ppm
Print speed (black, normal quality, A4/US Letter)	40 ppm
Printing colors	Black
Maximum duty cycle	150000 pages per month
Number of print cartridges	1
Page description languages	Epson LQ, IBM ProPrinter XL24E, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
Paper input type	Cassette, Paper tray
Total input capacity	600 sheets
Total output capacity	500 sheets
Maximum input capacity	2600 sheets
Maximum number of input trays	6
Multi-Purpose tray input capacity	100 sheets
Custom media width	70 - 297 mm
Custom media length	148 - 450 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
Non-ISO print media sizes	Folio (media size), Letter (media size)
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A3
Multi-Purpose Tray media weight	60 - 220 g/m²
Wi-Fi	-
Mobile printing technologies	Apple AirPrint
Standard interfaces	Ethernet, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Processor model	465
Processor family	PowerPC
Noise level (idle)	30 dB
Maximum internal memory	1280 MB
Sound pressure level (printing)	50.4 dB
Sound pressure level (quiet mode)	49.6 dB
Display	LCD
Certification	TUV, GS, CE
Product color	Black, White
Display number of lines	5 lines
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.1 W
Power consumption (standby)	14 W
Power consumption (printing)	586 W
Power consumption (PowerSave)	1.5 W
Sustainability certificates	ENERGY STAR
Mac operating systems supported	Mac OS X 10.5 Leopard
Other operating systems supported	Android, iOS

Weight and Dimensions

Depth	410 mm
Width	469 mm
Height	320 mm
